7

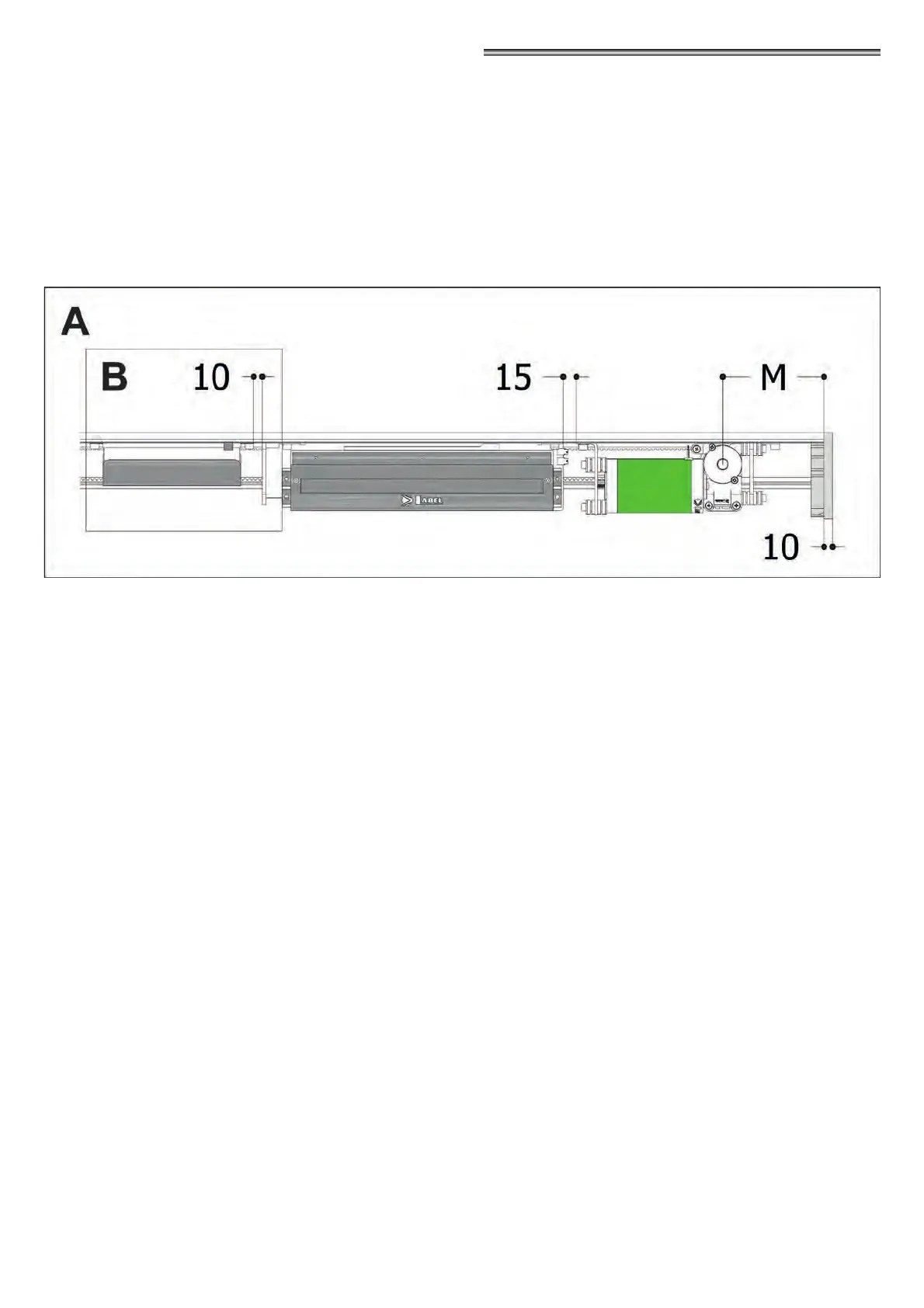

4.1) TECHNICAL DRAWINGS - SPECIAL APPLICATIONS
In case the distance M (Motor Pulley) is less than 420mm, it is necessary to use the code ET-KM420 that enables to assemble the motor
separately with respect to the control unit.
Installation examples:
If presence sensor 3H-IR14C (V00247 - Label Price List Code) must be mounted ush with its mounting bracket V00246 - Label Price
List Code.
In the case of dual leaf automation whose length is less than LT<2300 mm.
In the case it is necessary to move the motor to install specic accessories located inside the transom.
For these cases, assemble the driving unit as in image A.
If the battery ET-BAT90 is present, it is necessary to use the code ET-KBAT420 to position the battery laterally with respect to the control
unit, see detail B.
