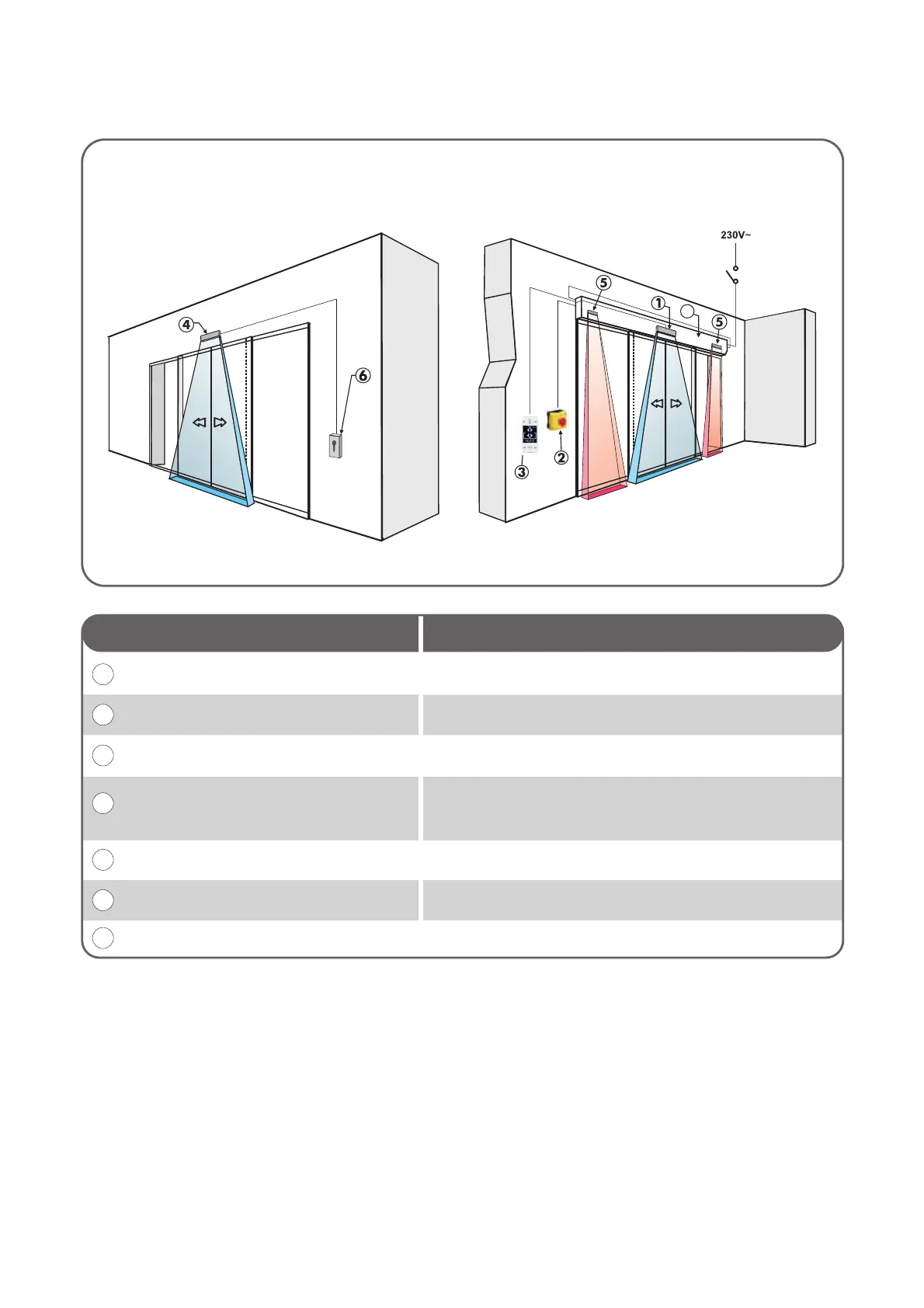

Label ETERNA 90 EASY - ELECTRIC CONNECTIONS AND TERMINAL BOARDS; 11) ELECTRIC CONNECTIONS

POWER SUPPLY
AUTOMATION
OUTER
SIDE
INNER
SIDE
1
2
3
4
5
6
Emergency opening button
Selector programmer T-EASY
External movement and presence sensor for
door opening and safety during closing
Opening safety sensor
Key button
DESCRIPTION OF ACCESSORIES
Internal movement and presence sensor for
door opening and safety during closing
CORRESPONDING CABLE
N° 1 CABLE 8 x 0,5 mm
N° 1 CABLE 2 x 0,5 mm
N° 1 CABLE 4 x 0,25 mm
N° 1 CABLE 8 x 0,5 mm
N° 1 CABLE 6 x 0,5 mm
N° 1 CABLE 2 x 0,5 mm
N° 1 CABLE 3 x 1,5 (F-N-T)
7
ETERNA 90 EASY automation
7
11) ELECTRIC CONNECTIONS
