17) BATTERY-POWERED EMERGENCY OPENING DEVICE
17.1) ET-BAT90

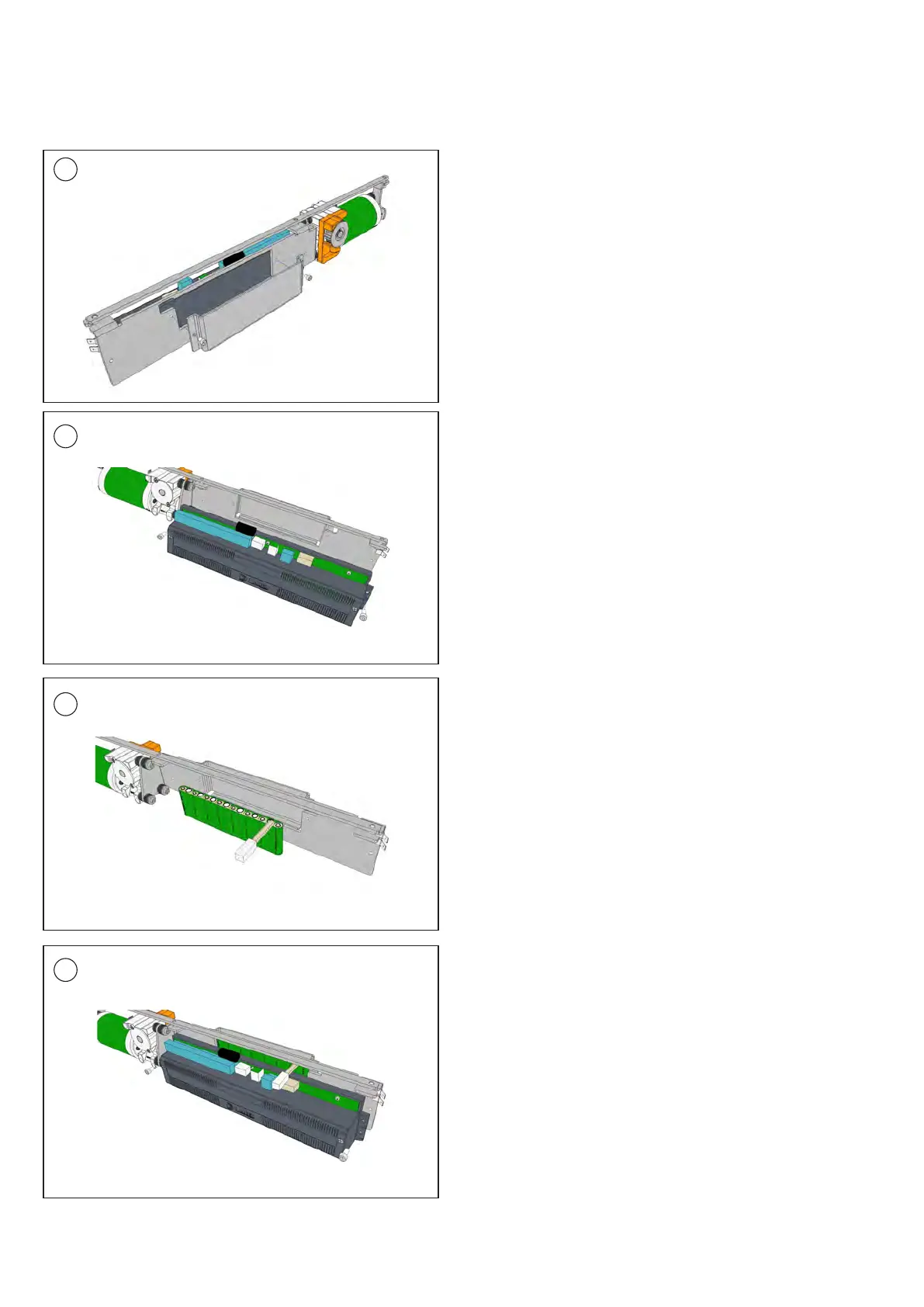

Assembly of the battery pack
The battery containment plate is mounted on the back of the
module ET-DRIVE/EASY using the hexagon socket head cap
screws 4x6.
A
B
C
D
Remove the container of the electronic control unit by unscrewing
the two screws M5x10.
Position the battery inside the plate.
Refit the container of the electronic control unit inserting the battery
cable through the slot at the top and tighten the screws M5x10.
To replace the battery, perform the operations described in steps B, C and D.
