9 - INSTALLATION MEASURES
The transom must be fastened to a flat surface solid enough
to bear the weight of the leaves to be used.
If the wall or the support do not meet these characteristics
you will have to provide a suitable tubular element, as the
transom is not self-bearing.
Fasten the transom by means of M6 or equivalent fixings.
The fastening points must be distributed alternately between
the reference lines on the transom (L1 and L2) every 300mm.

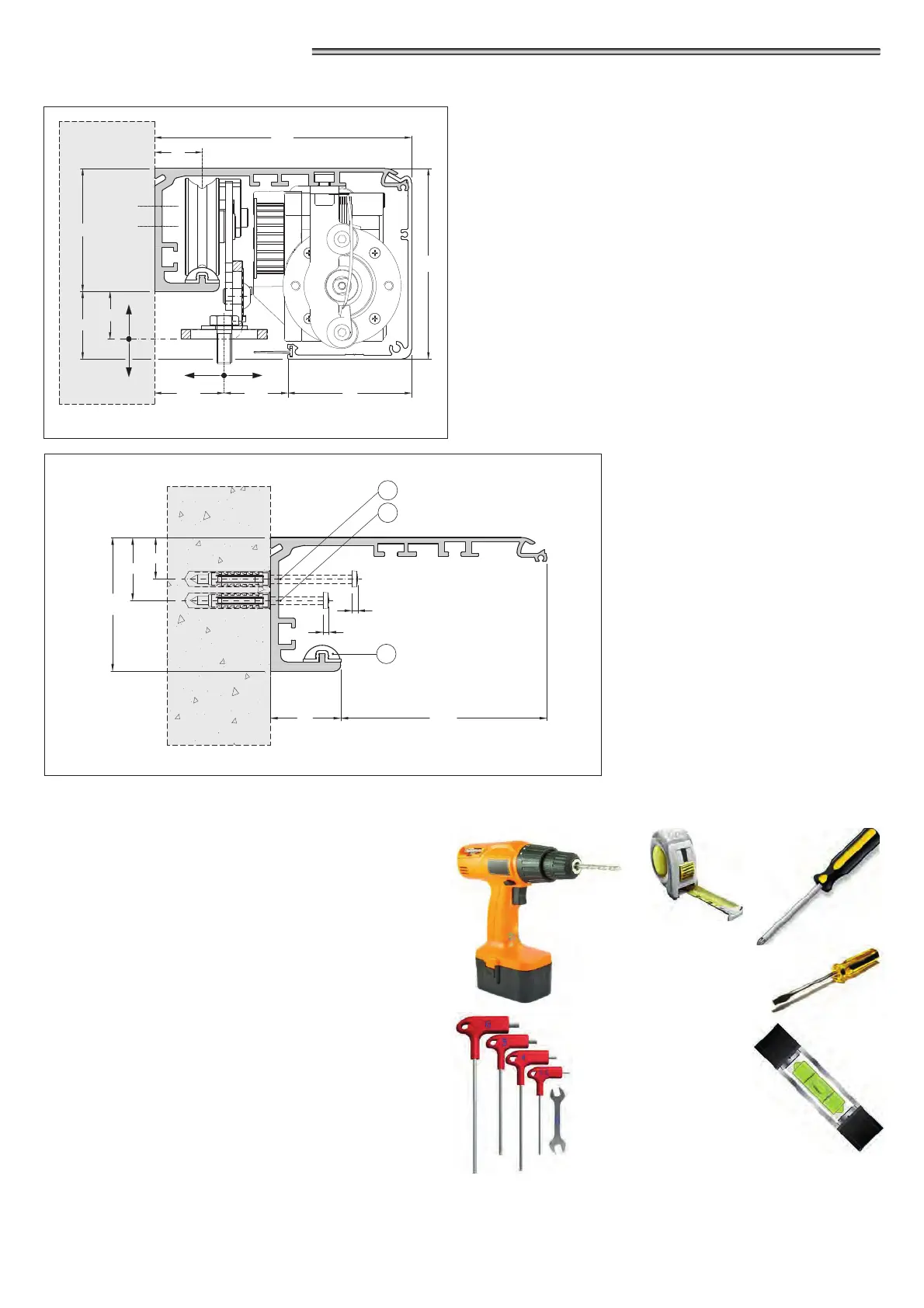

The figure shows the fastening dimensions.
When drilling the transom and the wall, take care not to
damage the sliding rail (B1) as that would affect the operation
and the quietness of the automated equipment.
After fastening the transom, thoroughly clean the sliding area
from any drilling scraps.
FIG.13
FIG.14
REQUIRED TOOLS
Tape measure, drill, level, thin flat-head screwdriver,
medium-sized flat-head screwdriver, cross-head
screwdriver, Allen wrenches with handle (sizes 3 - 4 - 5 - 6),
flat-head wrench 10.
