Lagoon 440 - Electrics Layout

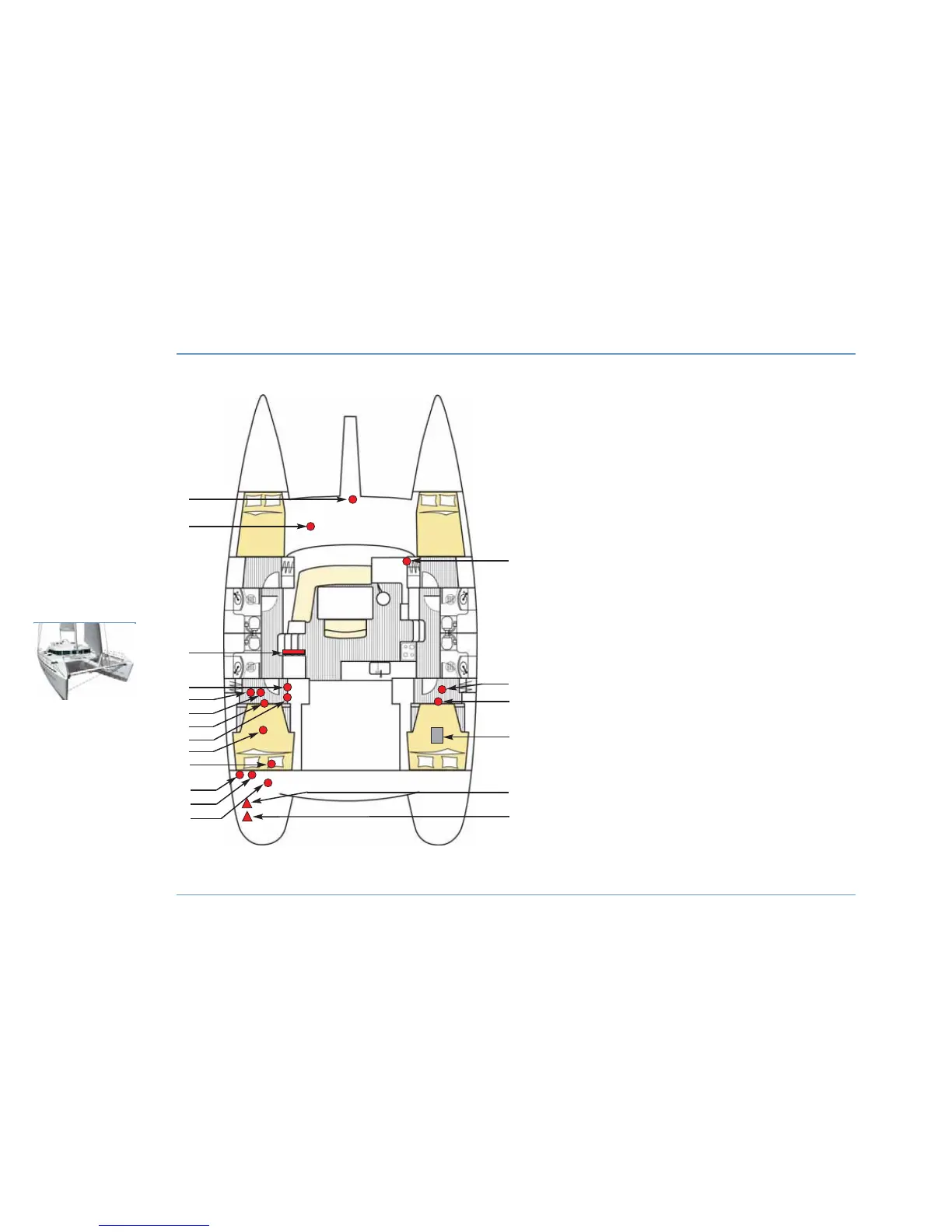

ELECTRICS LAYOUT
54
ELECTRICITY
LAGOON 44O
18
19
17
16
1
2
3
4
10
11
1 - Windlass.
2 - Windlass circuit breaker.
3 - Electrical panel.
4 - 110 V / 220 V circuit breakers + inverter.
5 - 5th battery option.
6 - Engine battery.
7 - Battery switches.
8 - Washing machine / dishwasher circuit breaker.
9 - Service battery + 4th battery (option).
10 - Automatic pilot calculator.
11 - Shore power supply circuit breaker.
12 - Air conditioning shore power supply circuit breaker.
13 - Battery charger.
14 - Electric compressor fridge.
15 - Engine battery.
16 - Battery switches.
17 - Water heater.
18 - Shore power supply.
19 - Air conditioning shore power supply.
12
13
Locations are the same for the other layout version.
5
7
14
6
8
9
15
