Lagoon 440 - Waste Water System

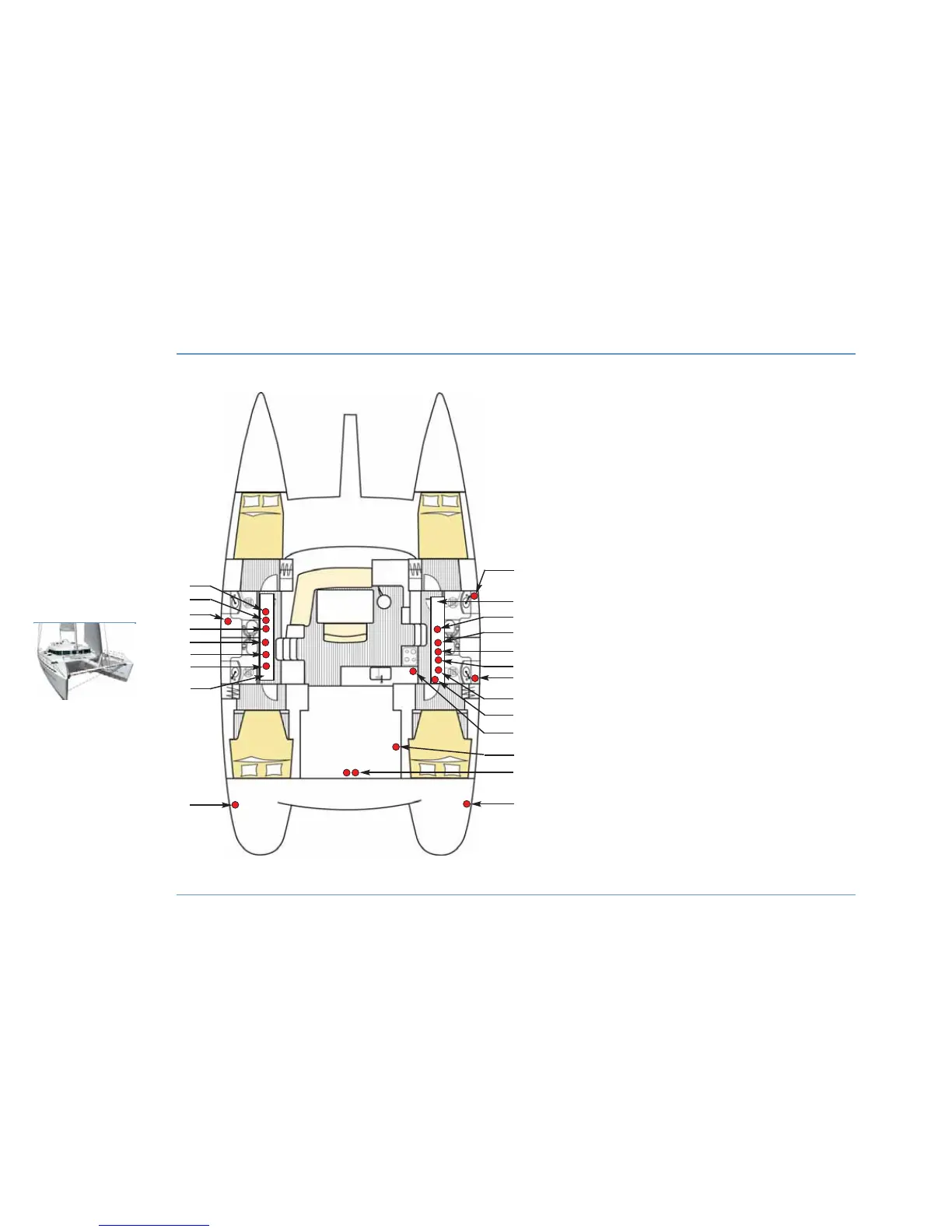

WASTE WATER SYSTEM
72
PLUMBING
LAGOON 44O
11
8
21
20
13
4
2
6
8
5
9
16
1 - Drain valve for forward port
watertight compartment.
2 - Drain pump for port shower.
3 - Forward port toilet drain.
4 - Strainer for port electric bilge
pump.
5 - Port electric bilge pump.
6 - Drain valve for port aft
watertight compartment.
7 - Port bilge pump with
automatic start + filter.
8 - Sump drain.
9 - Drain for port electric bilge
pump.
10 - Forward starboard toilet
drain.
11 - Drain valve for forward
starboard watertight
compartment.
12 - Strainer for starboard
electric bilge pump.
13 - Drain pump for starboard
shower.
14 - Starboard aft toilet drain.
15 - Starboard electric bilge
pump.
16 - Starboard bilge pump with
automatic start + filter.
17 - Drain valve for starboard aft
watertight compartment.
18 - Sink drain.
19 - Starboard aft cockpit drain.
20 - Manual bilge pump.
21 - Drain for starboard electric
bilge pump.
Locations are the same for the other layout version.
10
3
1
12
17
18
19
15
7
14
