GENERATOR - DIESEL TRANSFER PUMP
60
ELECTRICITY
LAGOON 44O
PULL-SWITCH
FOR TRANSFER
4
12
5
13
11
6
7
9
10
3
1
15 14
2

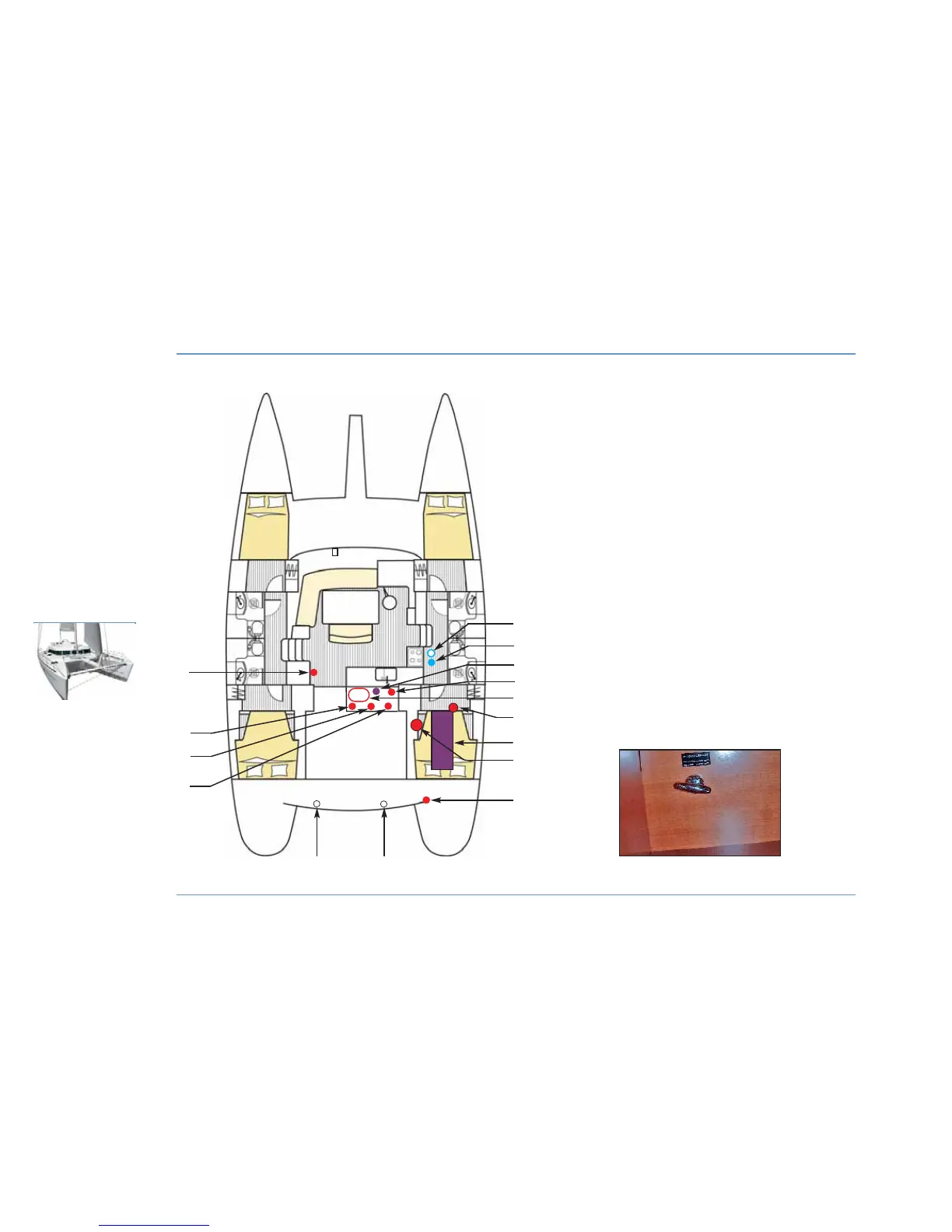

1 - Remote generator control.
2 - Circuit cutout.
3 - Exhaust hose.
4 - Water/gas separator.
5 - Seawater inlet.
6 - Seawater filter.
7 - Fuel filter for generator.
8 - Generator battery.
9 - Generator.
10 - Diesel valve.
11 - Fuel tank.
12 - Pull-switch for transfer to port fuel tank.
13 - Diesel feeding pump.
14 - Hot air extraction.
15 - Fresh air suction.
