Lagoon 440 - Main Water Drainage System Diagram

74
PLUMBING
LAGOON 44O

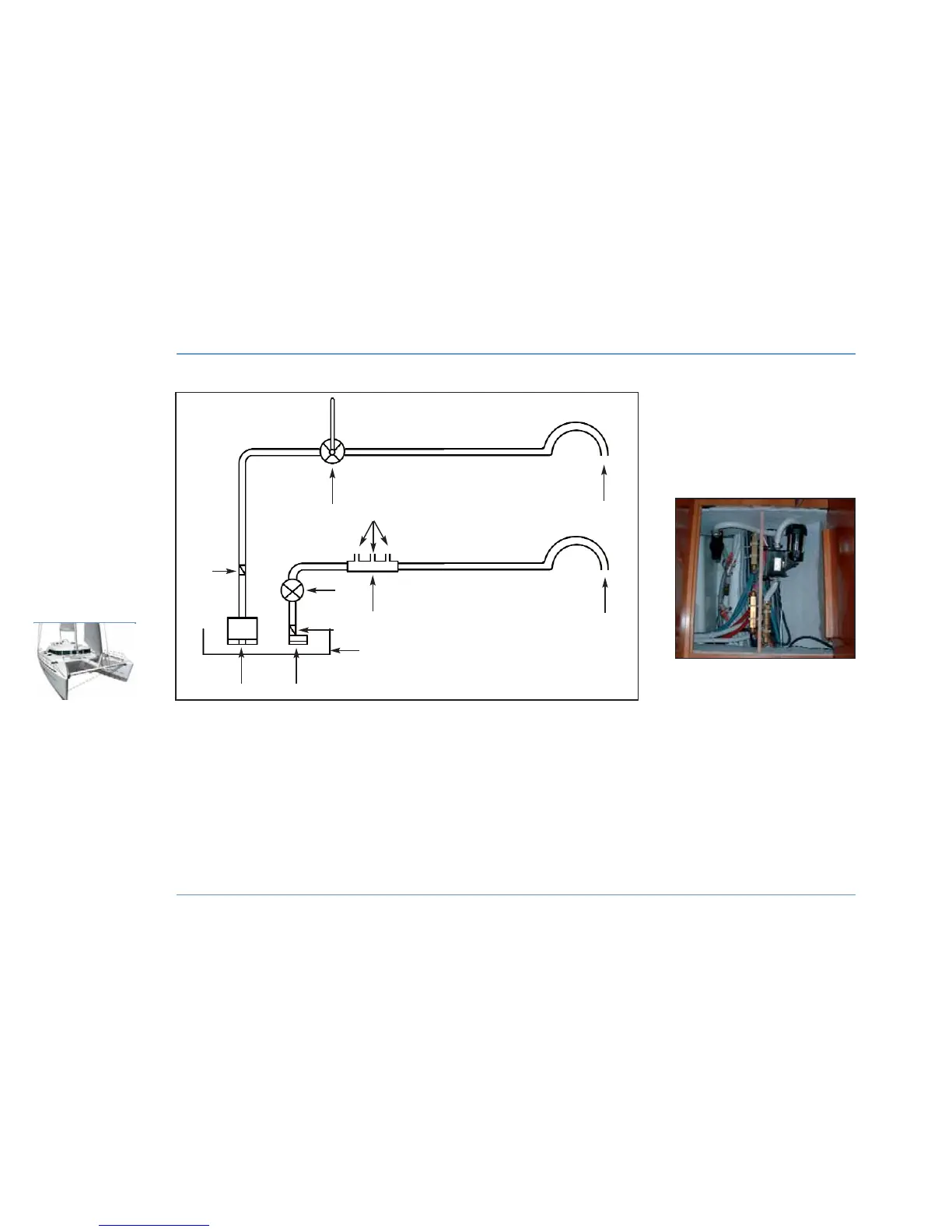

MAIN WATER DRAINAGE SYSTEM DIAGRAM
1 - Automatically activated submersible bilge pump.
2 - Strainer.
3 - Anti-return valve.
4 - Manually activated electric bilge pump (control on the
electrical panel).
5 - Distribution/recovery manifold for waste water.
6 - Waste water drainage from bathroom.
7 - Manual bilge pump in cockpit.
8 -Sump drain.
9 - Drainage outlet.
1
2
5
9
9
7
3
3
8
4
6
SUMP WELL
