Lagoon 440 - 110 V Diagram

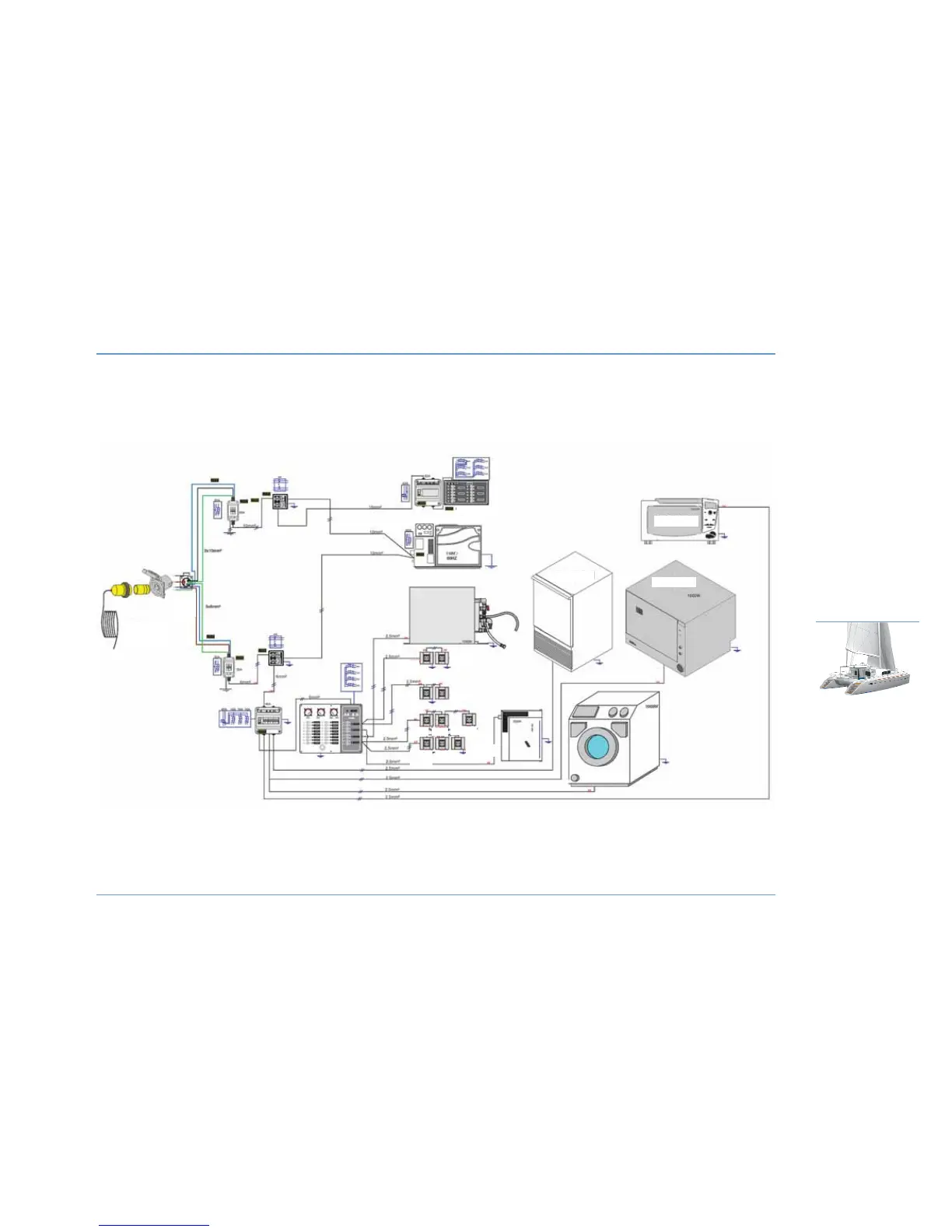

APPENDIX - 110 V DIAGRAM
65
ELECTRICITY
6
LAGOON 44O
OPTIONAL
OPTIONAL
OPTIONAL
OPTIONAL
4 x 10 mm2
cable
Air conditioning OPTIONAL EXTRA
Electricity generator 9.5 KVA
Port aft
cabin
Port fwd
cabin
Stbd fwd
cabin
Stbd aft
cabin
Service
compartment
Galley
Electrical
panel
socket
TV
Socket
Galley
Chart table
Rear view of
shore power
supply
