83-507-5002 Rev. A
30
Number Item Description
Section
4
Remote Out
connector
RJ-45 type connector, used for daisy-chaining power supplies to
form a serial communication bus.
7.3
7.5
5 J1 Analog
Remote
connector
Connector for remote analog interface. Includes Output Voltage and
Current programming and monitoring signals, Shut-off control (elec-
trical signal), Enable/Disable control (dry-contact), Power Supply
OK (PS_OK) signal and operation mode (CV/CC) signal.
4.5
6 SW1 Setup
switch
Nine position DIP-switch for selecting remote programming and
monitoring modes for Output Voltage, Output Current and other
control functions.
4.4
7
J2 Remote
sense
connector
Connector for making remote sensing connections to the load for
regulation of the load voltage and compensation of load wire drop.
3.10
3.8.2
8 Blank
Sub-plate
Blank sub-plate for standard units. Isolated Remote Analog pro-
gramming connector for units equipped with Isolated Analog control
option. IEEE connector for units equipped with IEEE programming
option (shown).
Fig. 4.2
9 IEEE switch
Two position DIP-switch for selecting IEEE mode or RS232/RS485
mode when IEEE option is installed.
Fig. 4.2
10
Ground
screw
M4x0.7, 8mm long DBL-SEMS screw for chassis ground
connection.
Fig. 4.2
4.4 REAR PANEL SW1 SETUP SWITCH
The SW1 Setup switch (see Fig.4-3) is a 9-position DIP-switch that allows the user to choose the
following:
Internal or remote programming for Output Voltage and Output Current.
Remote voltage or resistive programming of Output Voltage and Output Current limit.
Select range of remote voltage and resistive programming.
Select range of output Voltage and Output Current monitoring.
Select the Remote Shut-Off control logic.
Select between RS232 and RS485 communication interface.
Enable or disable the rear panel Enable/Disable control (dry contact).
4.4.1 SW1 position function
Refer to Table 4-3 for description of SW1 position functions. The factory default setting is
Down for all positions.
Table 4-3: SW1 Positions Functions

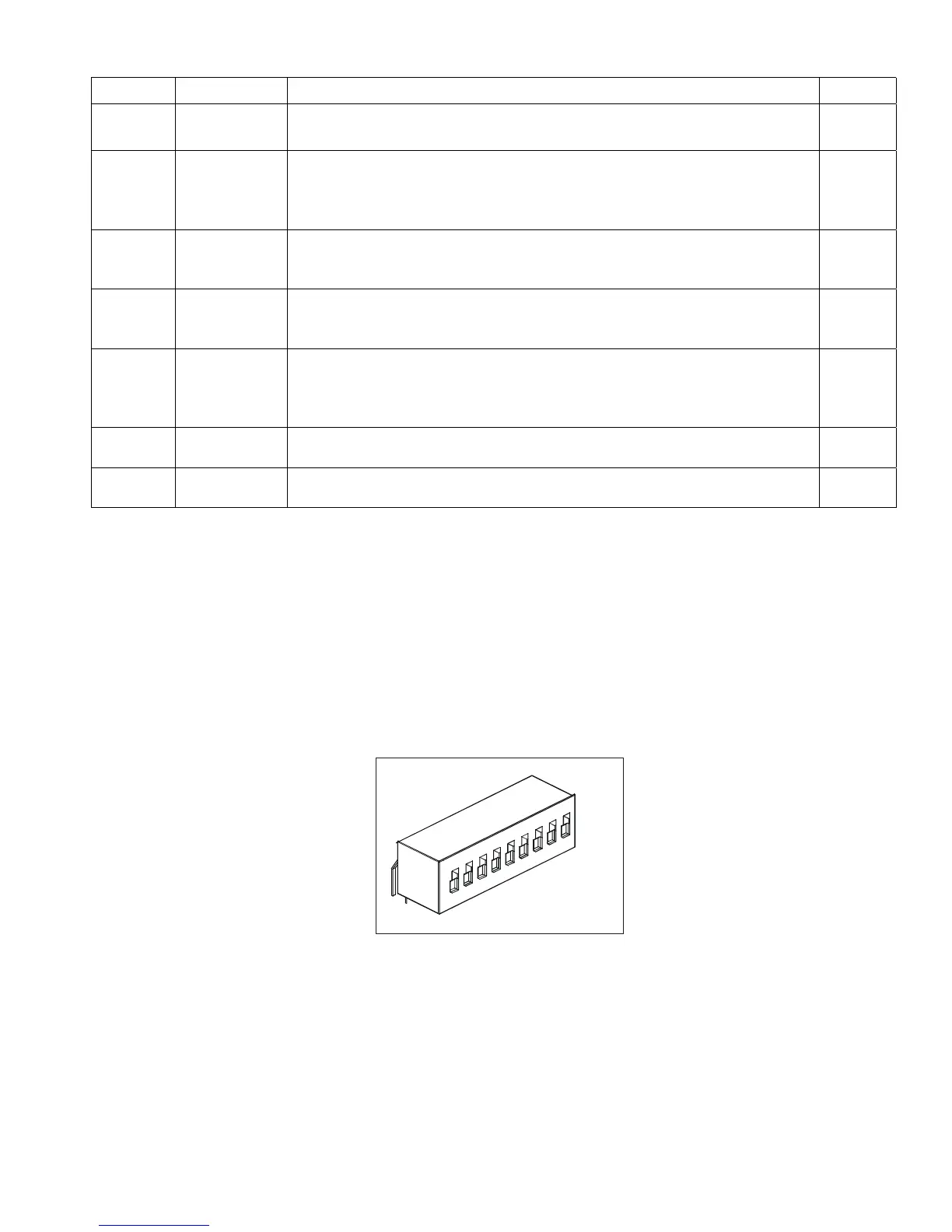

Fig.4-3: SW1 setup DIP-switch
1
2
3
4
5
6
7
8
9
