EM 6N ST-E
GB-E 055-1/2"(Pi)
Thermal output
Pressure loss (mbars)
Legend
Pi Inlet pressure (combustion head + gas train)
Pt Pressure at combustion head

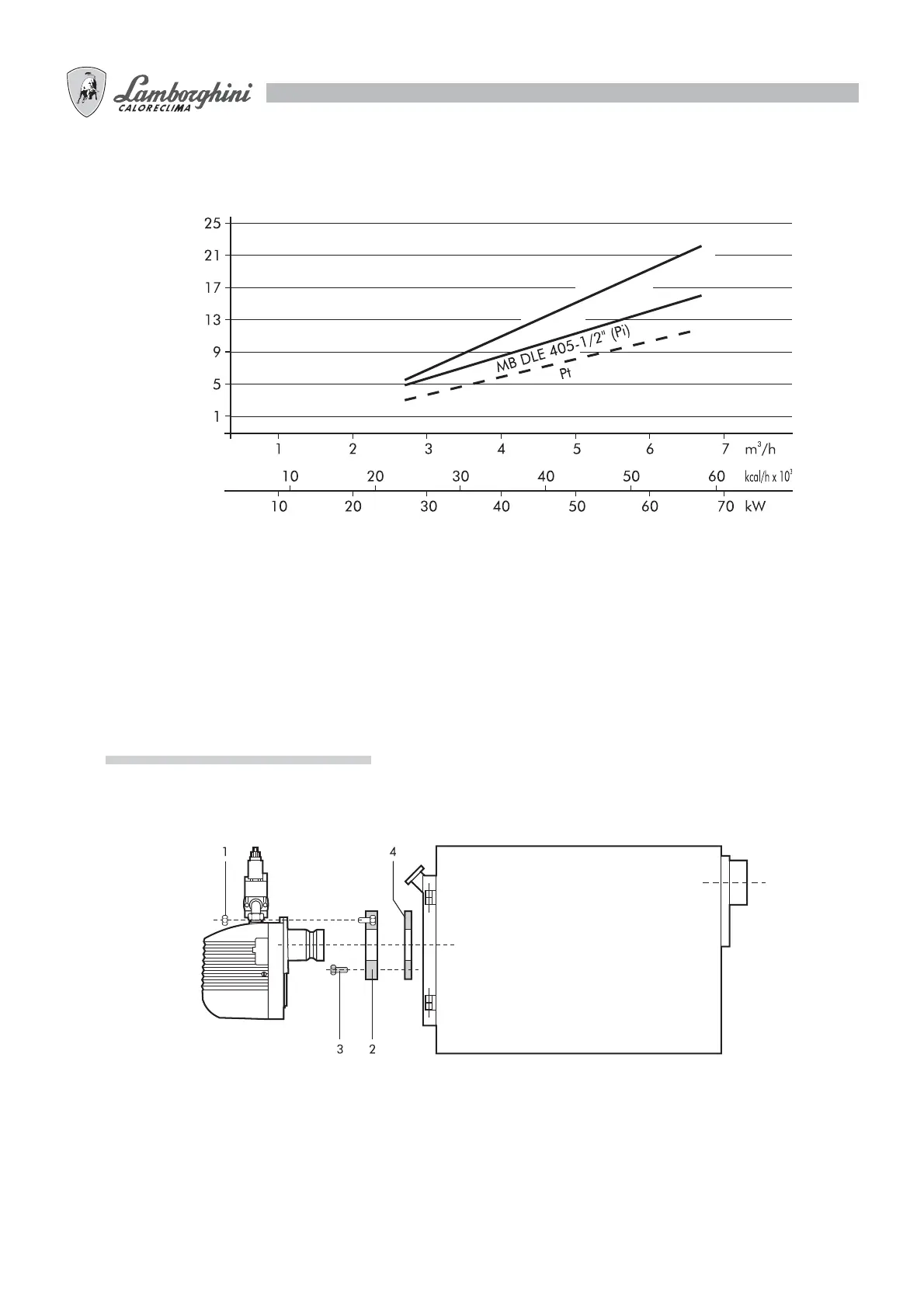

ASSEMBLY ONTO THE BOILER
Fix flange 2 to the boiler using 4 screws 3 interposing the insulation gasket 4. Insert the burner in the flange so that the
draught tube penetrates into the combustion chamber by the length suggested by the boiler manufacturer. Tighten bolt 1
to lock the burner in position.
