LAMBORGHINI XILO D - Water Circuit

38

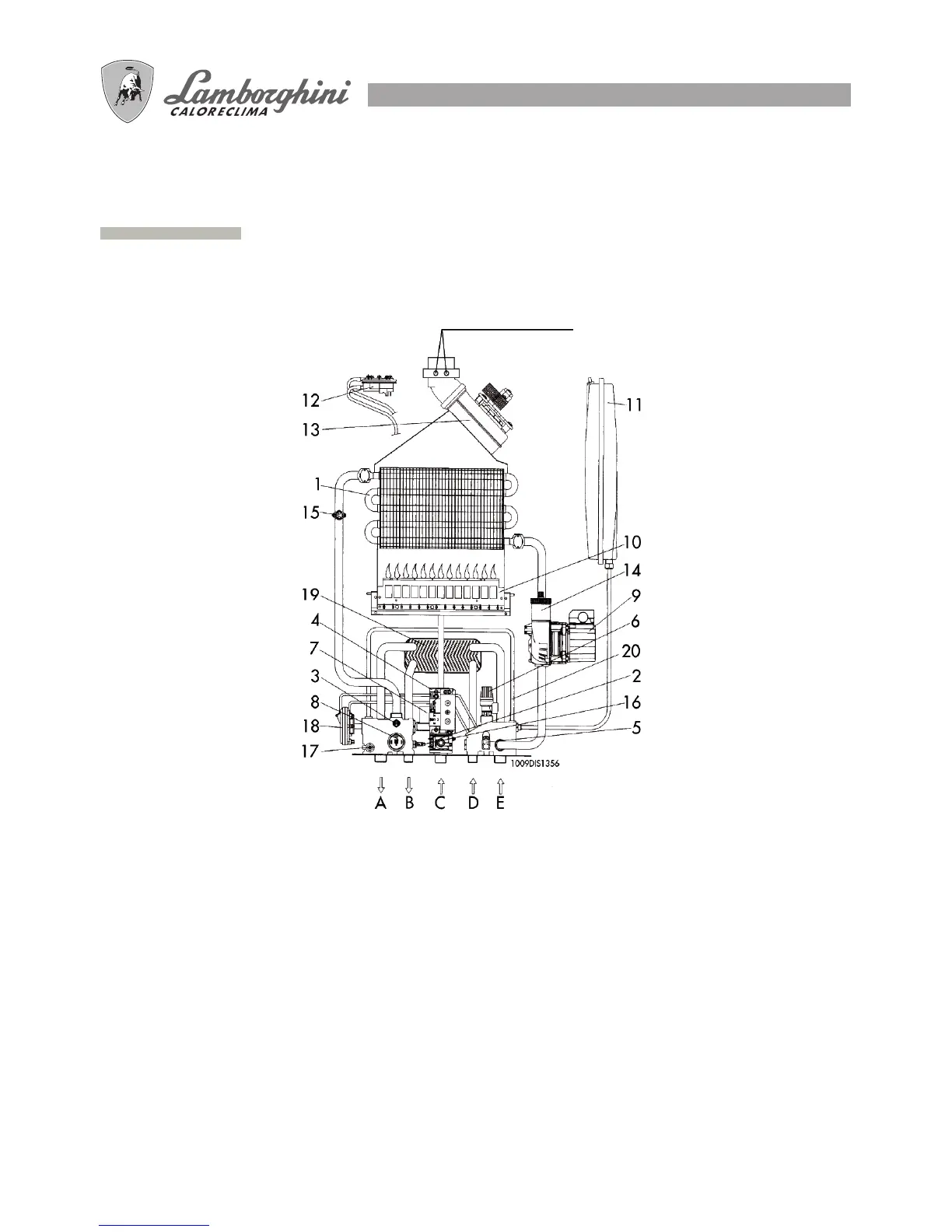

WATER CIRCUIT
LEGEND
A System delivery
B Hot water outlet
C Gas
D Cold water inlet
E System return
1 Exchanger
2 Modulator coil
3 Heating sensor
4 Gas valve
5 Filling cock
6 Safety valve
7 Switching valve microswitch
8 No-water pressure switch
9 Circulator
10 Burner
11 Expansion tank
12 Fumes pressure switch
13 Fan
14 Automatic air bleed valve
15 Total safety thermostat
16 Hot water sensor
17 Drain tap
18 Pressure-operated switching valve
19 Plate exchanger
20 By-pass pipe
XILO D 20 N MCS W TOP
Fume analysis points
