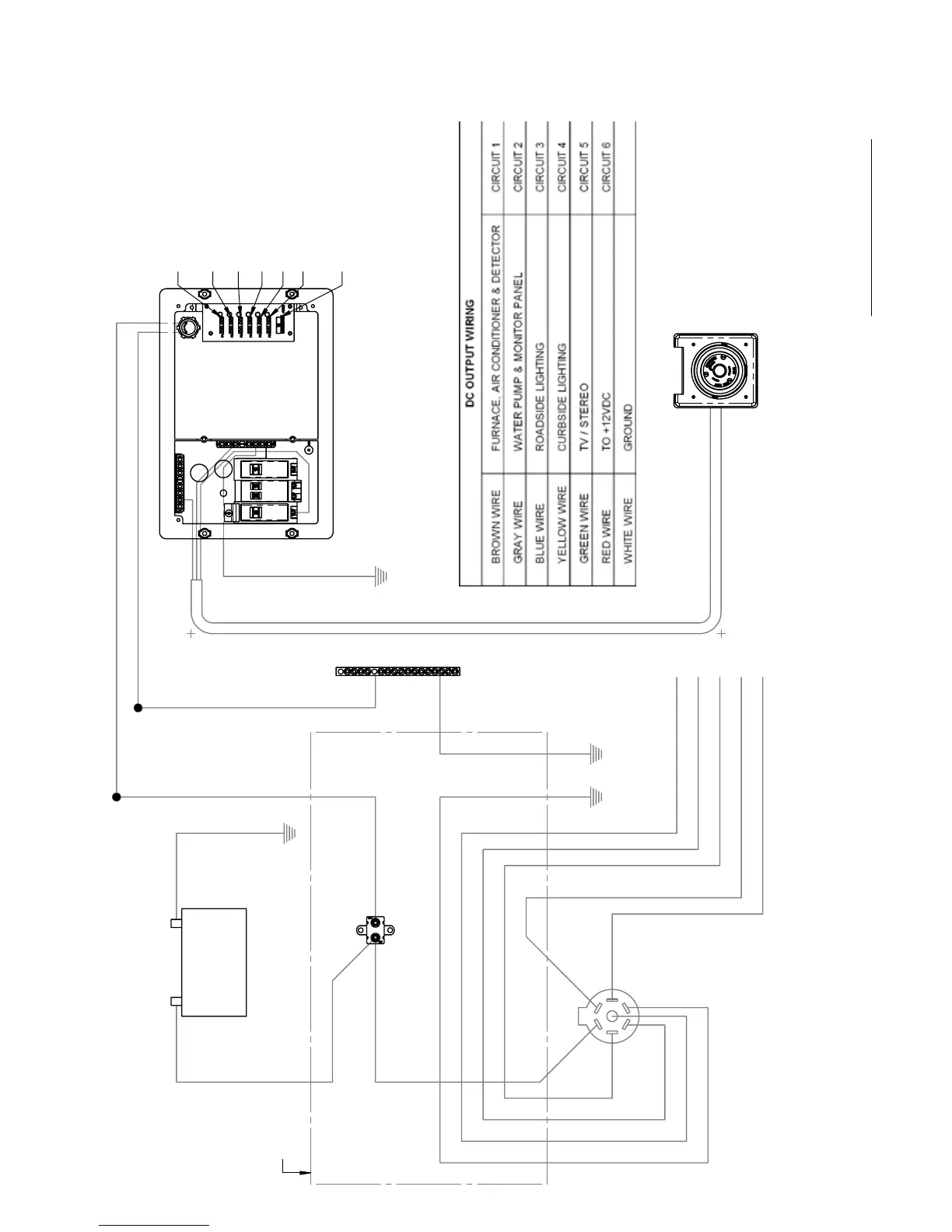

Lance 1130 - 12 VOLT SYSTEM

115
8 GA WHITE
8 GA BLACK
30 AMP MINI BREAKER
12 VOLT
BATTERY
+
-
LOAD CENTER / CONVERTER
CONVERTER RATING
OUPUT = 35.0 AMPS, 12VDC
RECEPTACLE 30A POWER INLET MARINCO
12V GROUND BAR
7-PIN
CONNECTOR
BARGMAN
CHASSIS GROUND
CHASSIS GROUND
CHASSIS GROUND
LUG
J-BOX (CHASSIS)
8 GA COPPER
10 GA RED
10 GA WHITE
14 GA GREEN
10 GA BLACK
ROMEX 10-2 W/GROUND
14 GA RED
14 GA
BROWN
12 GA BLUE
14 GA YELLOW
10 GA WHITE
10 GA WHITE
10 GA WHITE
8 GA WHITE
LEFT TURN/STOP
RUNNING LIGHTS
RIGHT TURN/STOP
ELECTRIC BRAKES & BREAKAWAY
BACKUP
14 GA YELLOW
12 GA BLUE
14 GA BROWN
AB
10 GA WHITE
8 GA BLACK
CIRCUIT #1 FURNACE, AIR COND & DETECTOR CIRCUIT #2 WATER PUMP & MONITOR PANEL CIRCUIT #3 R/S LIGHTING CIRCUIT #4 C/S LIGHTING CIRCUIT #5 TV / STEREO CIRCUIT #6 TO +12VDC REVERSE BATTERY PROTECTION FUSE, 40 AMP
12 VOLT SYSTEM
