Lance 1130 - Monitor Panel Wiring

119
RIPCORD 14-2
GRAY
/WHT
14 GA RED
14 GA PURPLE
22GA WHITE
22GA GRAY
22GA BROWN
22GA BLUE
SPEAKER WIRE CLEAR COPPER (+) SILVER (-)
SPEAKER WIRE WHITE
SPEAKER WIRE GRAY
12 GA RED
12 GA
WHITE
RIPCORD 14-2 GREY/
WHT
WATER PUMP
GRAY TANK
BLACK TANK
FRESH WATER
TANK
CONVERTER
2
15
FUSE
CIRCUIT
WHT-E
YEL-1/3
GRN-2/3
ORG-FULL
RED CONNECTOR
WHITE WIRE
RED WIRE
SPEAKER WIRE SPEAKER WIRE
W/BLACK STRIPE
TANK WIRING

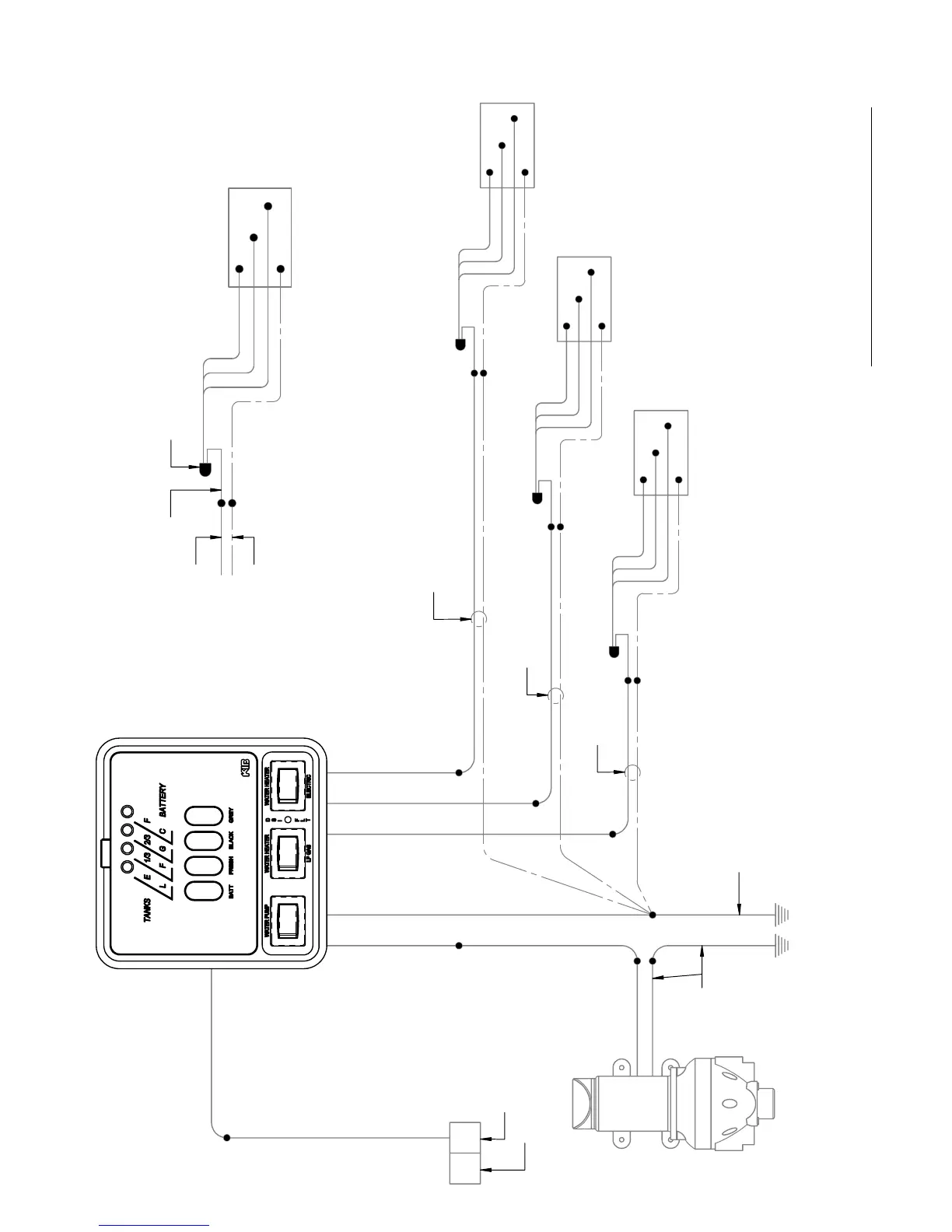

MONITOR PANEL WIRING
119
