27
E
A
B
C
D
F
H
I
G
J
19
18
15
16
17
7
9
K
Item Part No. Description
1 82-2260 Faucet Plate Assy, 12 Valve,
IBD44
2 04-0308 Screw, 10 - 32 x 0.438, PHD
3 30-6145 Lock, Drip Tray, IBD
R 4 10-0364 Spacer, Drip Tray Lock, IBD
R 5 04-0529 Screw, 8 - 32 x 0.750, PHD
R 6 04-0553 Screw, 10 - 24 x 0.750, LG,
PHMS, COMBO, SS
R 7 82-3538 Chute Assy, IBD
R 8 05-0928/02 Trap Door, IBD
9 04-0504 Screw, 8 - 18 x 0.375, PHD
R 10 82-1566/01 Solenoid Assy
R A 03-0086 Ring, Retaining (5304-18)
R B 04-0328 Washer, Rubber
R C 04-0327 Washer, Flat
R D 12-0195 Solenoid, D-90
R E 30-5165/01 Bracket, Solenoid
R F 23-1380 Plunger Assy
R G 10-0496 Pin, Solenoid Assy
R H 03-0110 Spring, Solenoid
R I 03-0111 Ring, Retaining (5133-62)
R J 10-0353 Linkage, Door, IBD
R K 04-0320 Screw, 8 - 32 X 0.187, PHD
Item Part No. Description
R 11 82-1899 Trim Assy, IBD44
R 12 30-6678 Cover, Electric Box, IBD44
R 13 04-0477 Screw, 8 - 32 x 0.375, PHD
R 14 10-0732 Shaft, ice Chute Door
R 15 05-0359 Bushing, Shaft
R 16 03-0113 Ring, Retaining (5144-12)
R 17 05-0546 Lever, Door,
R 18 03-0205 Ring, Retaining (5304-25)
R 19 12-0244 Ice Door Switch
R in margin indicates change or revision

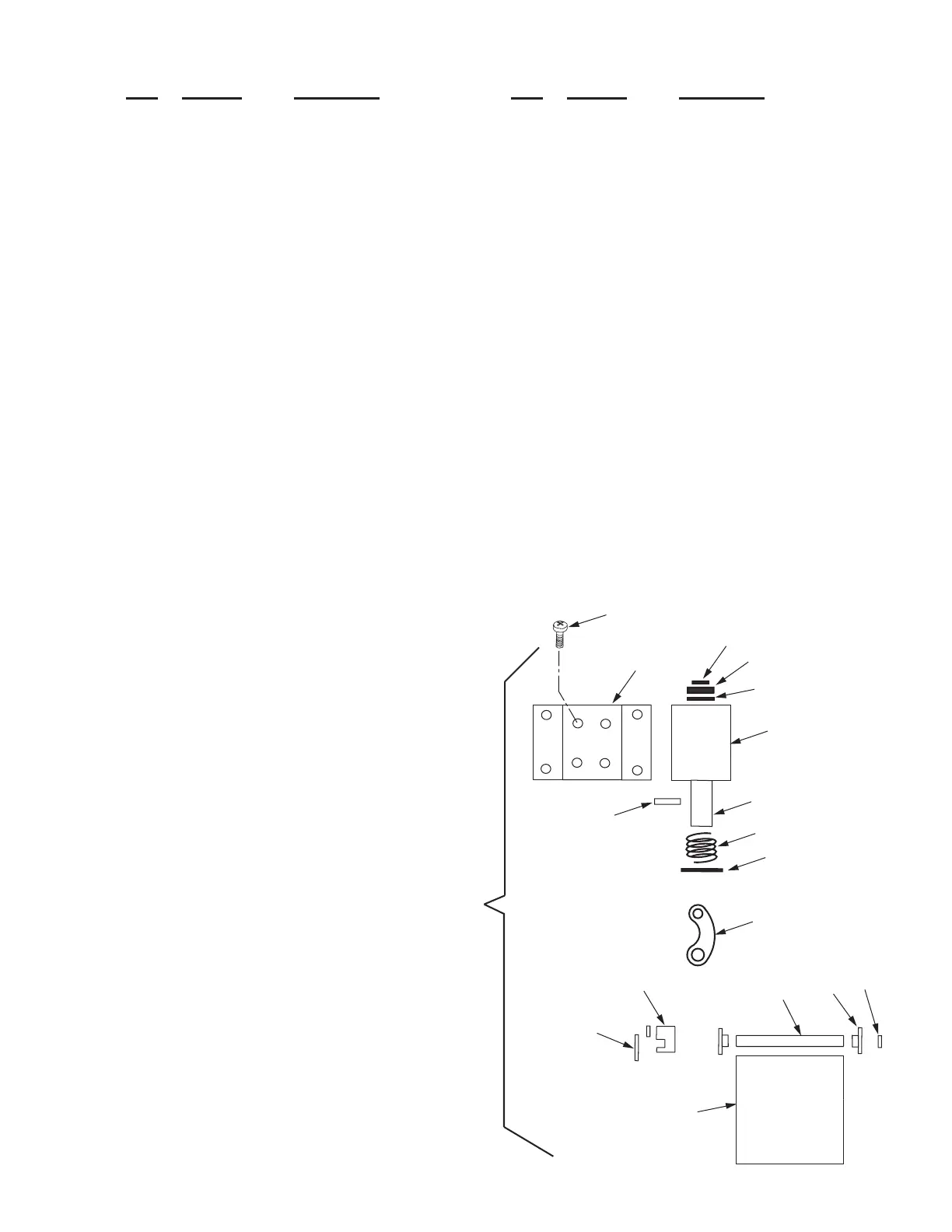

6.3 FAUCET PLATE AND ICE CHUTE SUB-ASSEMBLY, POST-MIX (CONTINUED)
