20

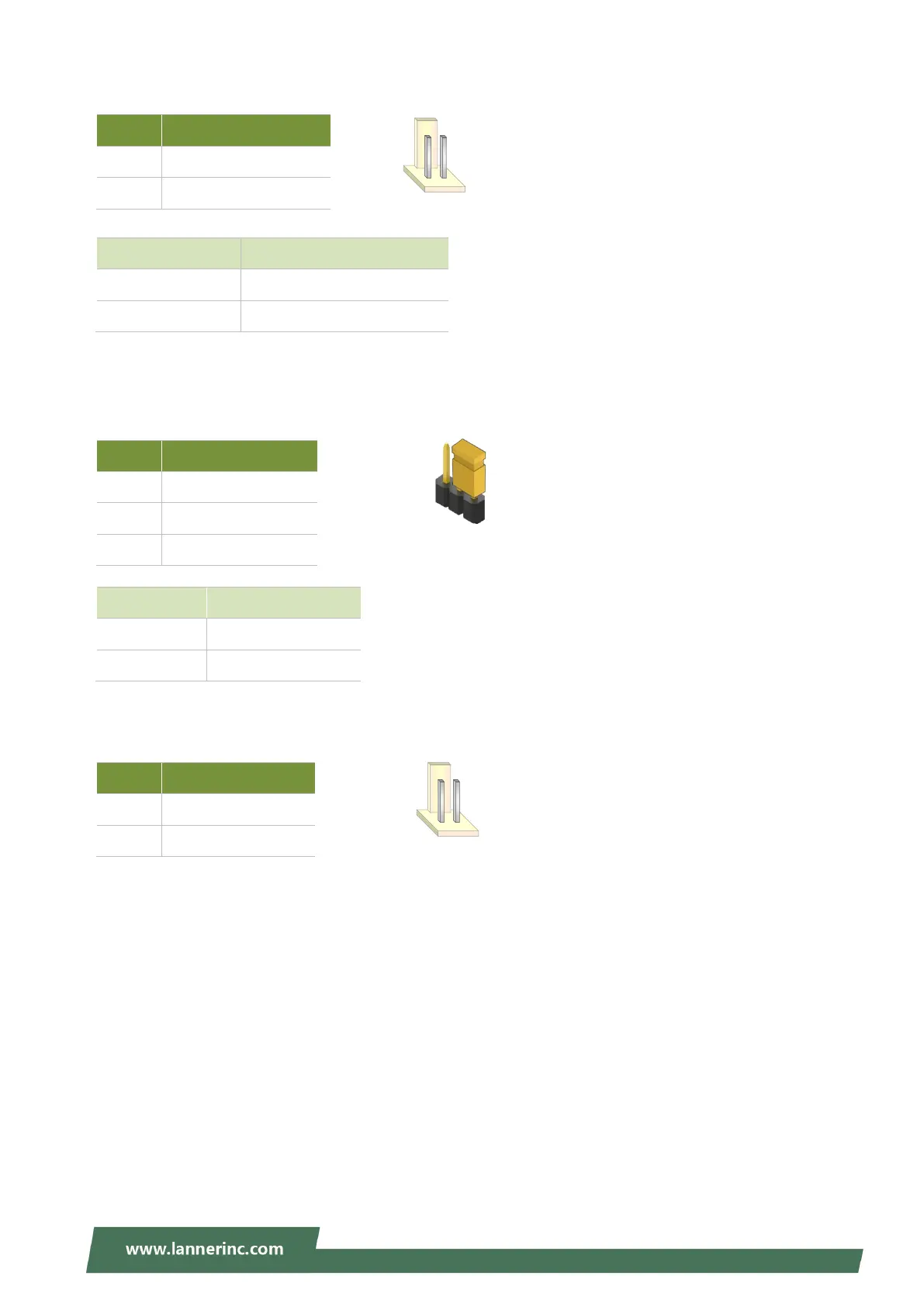

JOPEN1：Enable / Disable CASE OPEN#
Pin Description
1 FM_INTRUDER#
2 GND
Configuration Description
1-2 Open Normal(Default)
1-2 Short Case Open#
CMOS1：Clear CMOS
Pin Description
1 PU VCC_RTC
2 PCH_RTCRST#
3 GND
JPWR1 ：Power Button Connector
PIN Description
1 GND
2 PWRON#
Function Description
1-2 Normal
2-3 Clear CMOS
1
2
1
2
3
1
2
