NCA-4020 User Manual
35

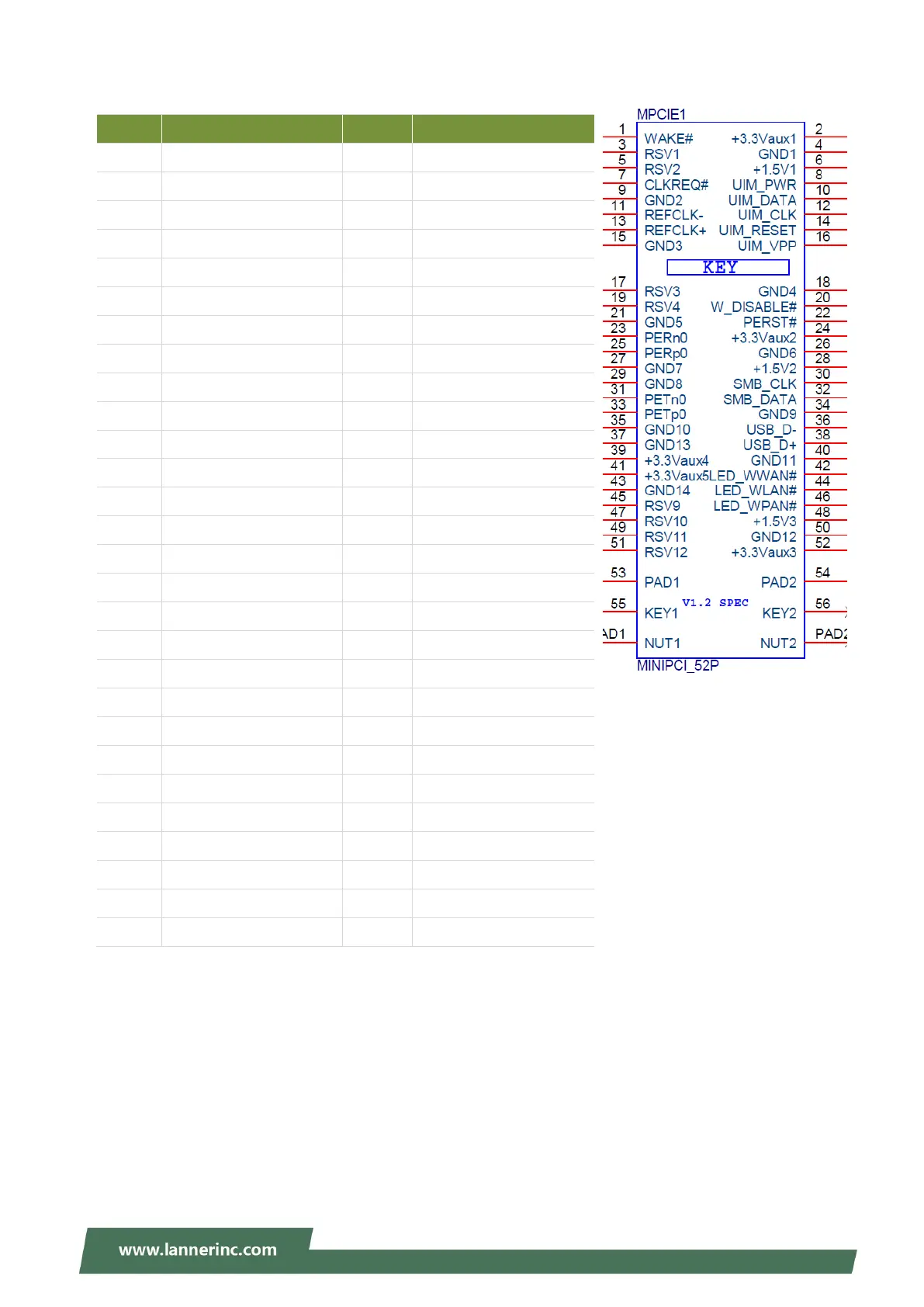

MPCIE1：Mini PCI Express Slot
PIN Description PIN Description
1 N/A 2 P3V3
3 N/A 4 GND
5 N/A 6 P1V5
7 N/A 8 UIM_PWR
9 GND 10 UIM_DAT
11 CLK100_N 12 UIM_CLK
13 CLK100_P 14 UIM_RST#
15 GND 16 UIM_VPP
17 N/A 18 GND
19 N/A 20 W_DISABLE#
21 GND 22 PE_RST#
23 PCIE_RXN 24 P3V3
25 PCIE_RXP 26 GND
27 GND 28 P1V5
29 GND 30 I2C_SCL
31 PCIE_TXN 32 I2C_SDA
33 PCIE_TXP 34 GND
35 GND 36 USB2_N
37 GND 38 USB2_P
39 P3V3 40 GND
41 P3V3 42 N/A
43 GND 44 N/A
45 N/A 46 N/A
47 N/A 48 P1V5
49 N/A 50 GND
51 N/A 52 P3V3
53 GND 54 GND
55 N/A 56 N/A
