4.2 WATER MAINS INSTALLATION DIAGRAM
Legend:
1 Water tap (previously installed by the customer).
2 Motor pump (provided with the machine - when not built in).
3 Water softener (optional).
4 Drain siphon (previously installed by the customer).
5 High-pressure (supplied).
Carry out the connections as shown in Fig. 8 and taking into account the following instructions:
• Always use the hoses supplied with the machine to make water mains connections; never use any other hose or pipes already tted.
• Make sure that hoses are not kinked, squashed or twisted.
• Fasten the ring nuts of the hoses rmly but without exerting too much pressure.

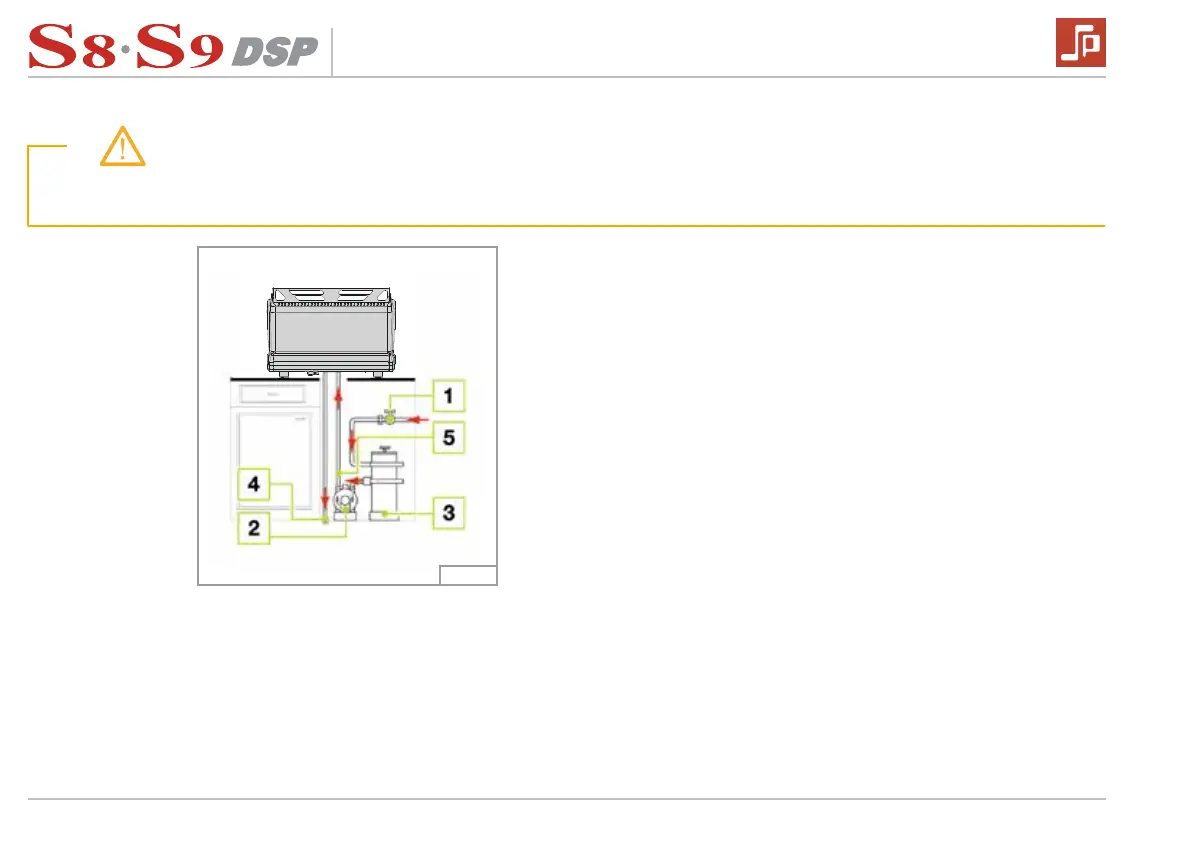

Fig. 8
Attention!
The machine is supplied without water in the boiler to avoid exposure to temperatures less than 0°C that could cause irrepa-
rable damage.
