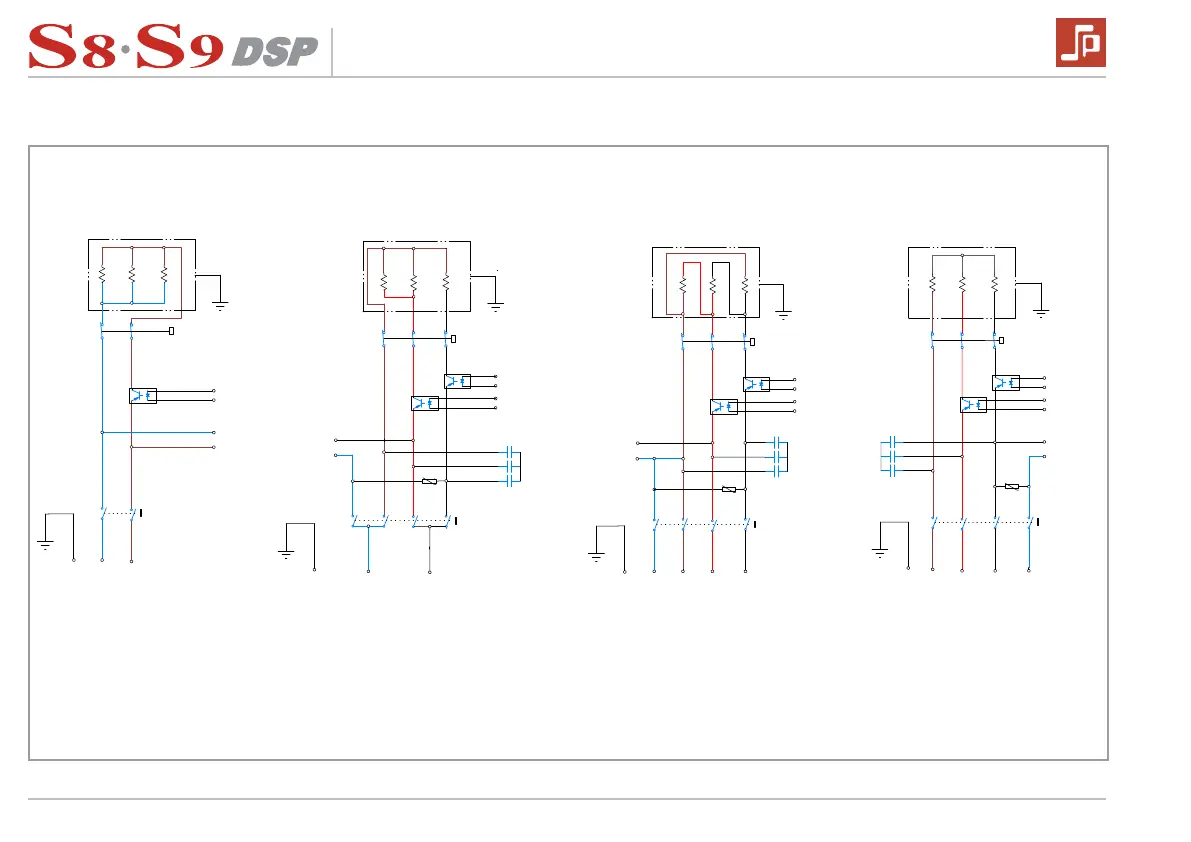

Laspaziale S8 DSP - Power Diagram

40
LSI 090 - Rev. 00 - Ed. 04/2018
DRAWN
CHECKED
ENG APPR
MGR APPR
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN MILLIMETERS
ANGLES ±X.X°
2 PL ±X.XX 3 PL ±X.XXX
NAME
m.mazzini
DATE
04/12/18
Solid Edge
TITLE
SIZE
A2
DWG NO REV
FILE NAME: SCHEMA ELETTRICO DI POTENZA.dft
SCALE: WEIGHT:
SHEET 1 OF 1
REVISION HISTORY
REV DESCRIPTION DATE APPROVED
RELE' STATICI
(vedi schema centralina)
STATIC RELAYS
(see control board diagram)
ALIMENTAZIONE TRASFORMATORE
TRANSFORMER POWER SUPPLY
vedi schema centralina
see control board diagram
FASE
PHASE
NEUTRO
NEUTRAL
G L1 L2 L3 N
RELE' STATICI
(vedi schema centralina)
STATIC RELAYS
(see control board diagram)
ALIMENTAZIONE TRASFORMATORE
TRANSFORMER POWER SUPPLY
vedi schema centralina
see control board diagram
FASE
PHASE
NEUTRO
NEUTRAL
G N L1
RELE' STATICI
(vedi schema centralina)
STATIC RELAYS
(see control board diagram)
ALIMENTAZIONE TRASFORMATORE
TRANSFORMER POWER SUPPLY
vedi schema centralina
see control board diagram
FASE
PHASE
NEUTRO
NEUTRAL
G N L1
RELE' STATICI
(vedi schema centralina)
STATIC RELAYS
(see control board diagram)
ALIMENTAZIONE TRASFORMATORE
TRANSFORMER POWER SUPPLY
vedi schema centralina
see control board diagram
FASE
PHASE
NEUTRO
NEUTRAL
G N L1 L2 L3
RC
RC
RC
RC
TS
RS1
IG
TS
RS1
RS2
F
IG
TS
TS
RS2
RS1
RS2
RS1
F
F
IG
IG
VR
VR
VR
SINGLE PHASE
MONOFASE
220 / 230 Volt
50 / 60 Hz
SINGLE PHASE CONNECTION
WITH 5 WIRES
MONOFASE CON CABLAGGIO
5 FILI
220 / 230 Volt
50 / 60 Hz
THREE PHASE
TRIFASE
220 / 230 Volt
50 / 60 Hz
THREE PHASE
TRIFASE
380 / 400 Volt
50 / 60 Hz
8.4 POWER ELECTRONIC BOARD
