44
LSI 090 - Rev. 00 - Ed. 04/2018
DRAWN
CHECKED
ENG APPR
MGR APPR
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN MILLIMETERS
ANGLES ±X.X°
2 PL ±X.XX 3 PL ±X.XXX
NAME
m.mazzini
DATE
04/12/18
Solid Edge
TITLE
SIZE
A2
DWG NO REV
FILE NAME: SCHEMA ELETTRICO CENTRALINA DI ESPANSIONE.dft
SCALE: WEIGHT:
SHEET 1 OF 1
REVISION HISTORY
REV DESCRIPTION DATE APPROVED
1 23
M3
RL9
Rl10
EV MAT
S2
P6
DL9
RS232
PHASE
FASE
NEUTRAL
NEUTRO
M2
M4
M1
ON
MC1
KD1
LEGEND:
S2 = M.A.T. system temperature probe PT 1000
DL9 = Steam delivery button led
P6 = Steam delivery button
EV MAT = Steam delivery solenoid valve
KD1 = M.A.T. system DIP
MC1 = M.A.T. system bridge

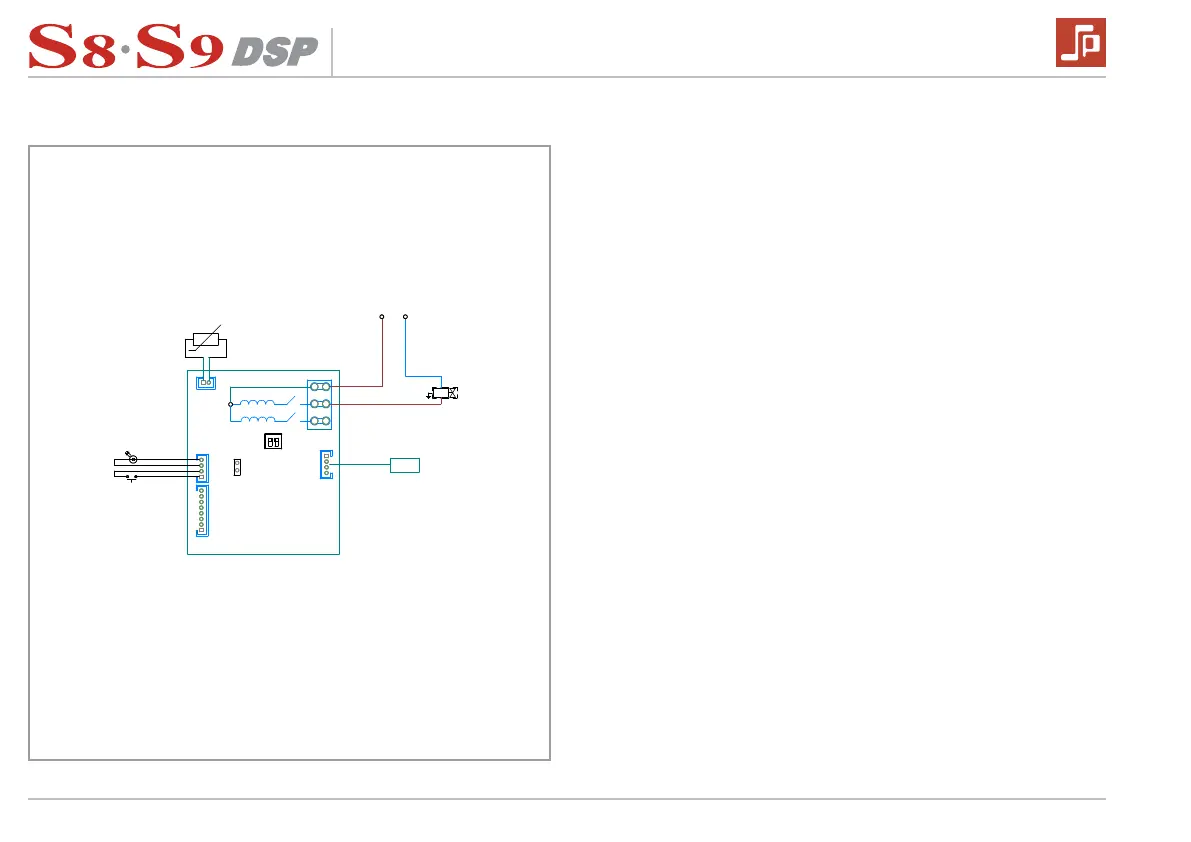

8.6 WIRING DIAGRAM FOR EXPANSION BOARD
