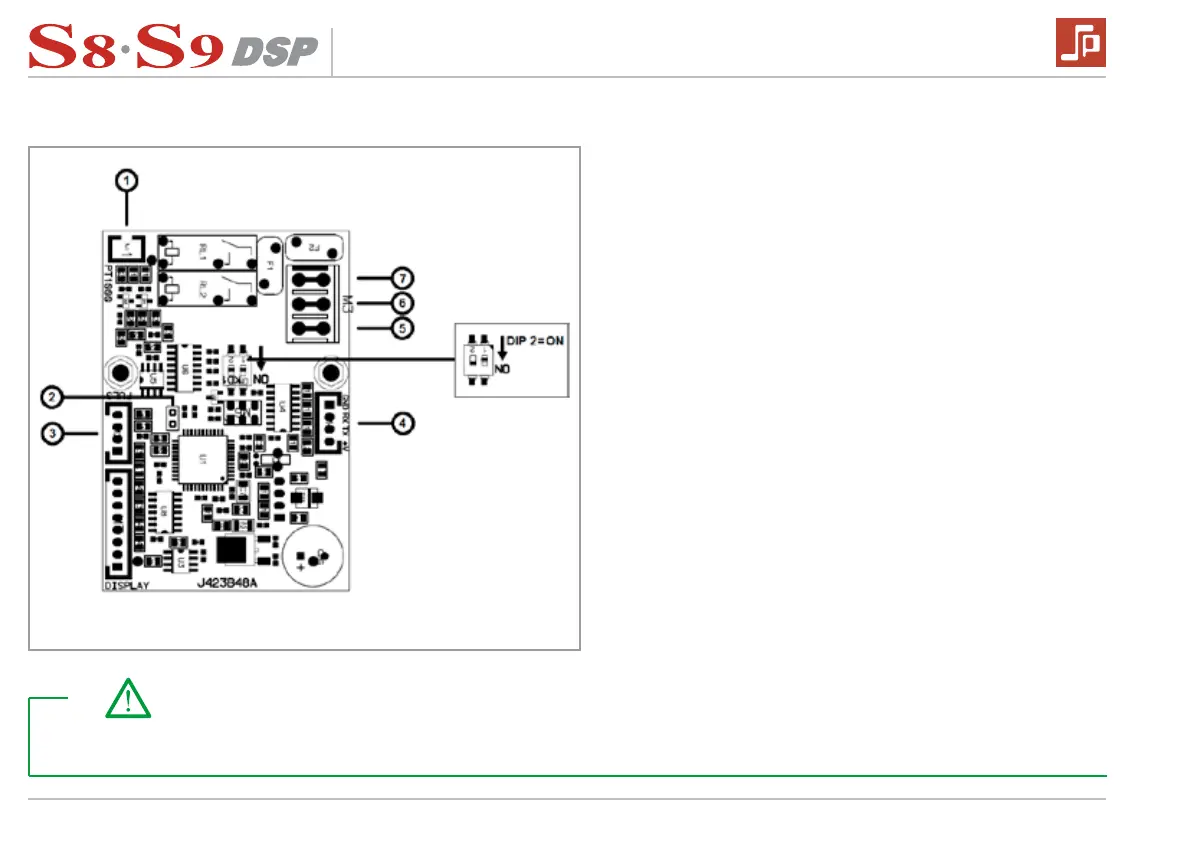

LEGEND:
1 = M.A.T. system temperature probe PT 1000 connection
2 = Jumper (must be open)
3 = M.A.T. system button connection
4 = Serial 232 connection
5 = AIR M.A.T. solenoid valve
6 = M.A.T. system solenoid valve
7 = Phase 230 Vac
8.2 ELECTRONIC EXPANSION BOARD
Take note!
The expansion control board is congurated correctly for the machines Series S8-S9 DSP, with the JUMPER (2) open and the DIP no. 2
in ON position.
