4
LSI 090 - Rev. 00 - Ed. 04/2018
S9 DSP EP

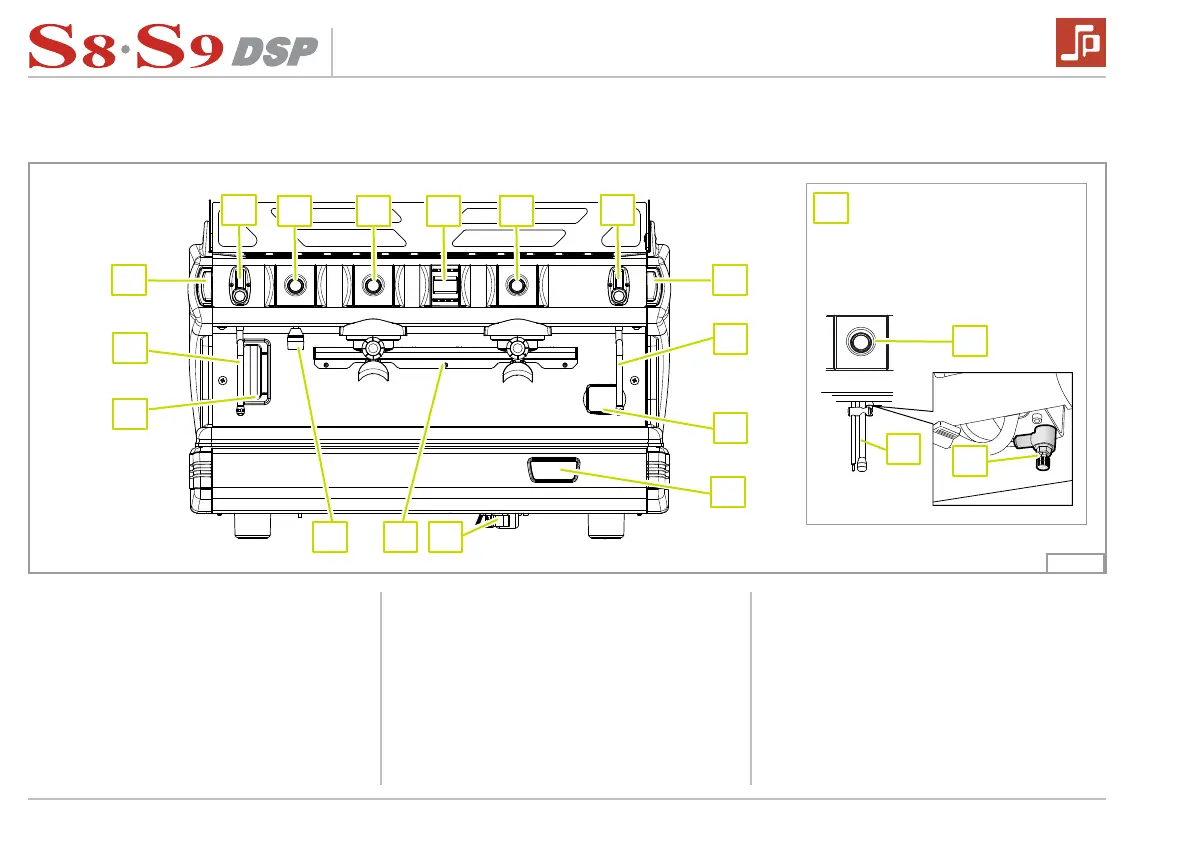

Fig. 3
*
1 1
2 3 4 3
12 11
7
8
10
55
7
9
0015
14
16
*
)
*
) Upon request, the machine can
be equipped with a steam wand
with incorporated temperature
sensor (M.A.T. SYSTEM) instead of
the right manual steam wand.
6
LEGEND
1. Steam delivery knob
2. Hot water delivery knob
3. Coffee delivery push-button
4. Control panel
5. RGB light
6. Steam wand with incorporated
temperature sensor (M.A.T.) (optional)
7. Steam wand
8. Pressure gauge
9. Boiler water level indicator
10. Programming touchpad
11. Main on/off switch
12. Illumination led of cup grid
13. Hot water outlet
14. Automatic steam delivery button for milk
frothing M.A.T. (optional)
15. Air adjusting for milk frothing (M.A.T.
system)
16. Steam wand with M.A.T. temperature
sensor (optional)
13
