Appendix B - Bell
Relay Connections
The PC700 has a built-in relay that can control bells or door access.
Relay Specifications
• Type: Dry Contact Closure
• Rating: 2 amps at 24VDC or 120VAC
• Contacts: NO-Normally Open, COM Common, NC Normally
Closed
Bell Relay Connections
When you are connecting to a signaling device make sure you have
the following skills:
• Understand basic wiring principles and techniques
• Can interpret wiring diagrams
• Have circuit wiring experience
Note: The wiring must be installed in accordance with national and
local electrical codes.
To connect the signaling device

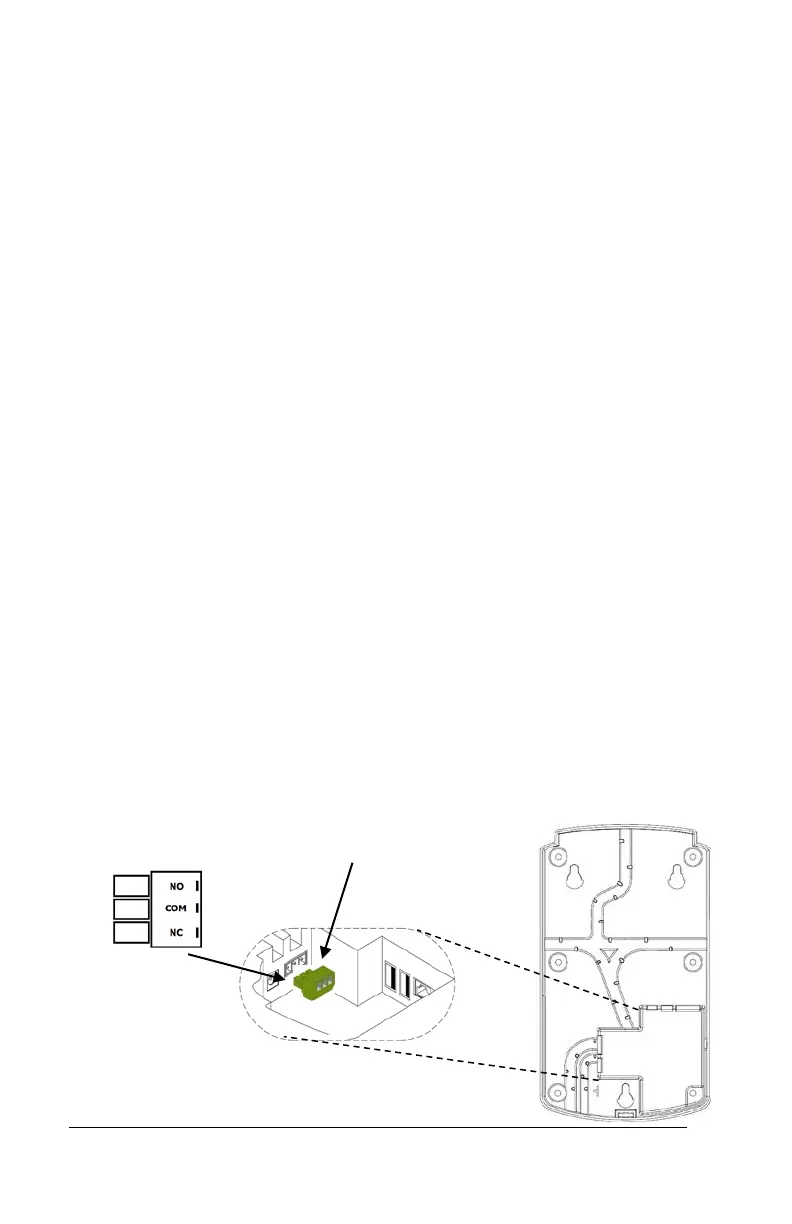

Unplug the relay screw clock connector.
