Proline Kryomats
12 Controls and functional elements YAUE0007 / 2/26/2009

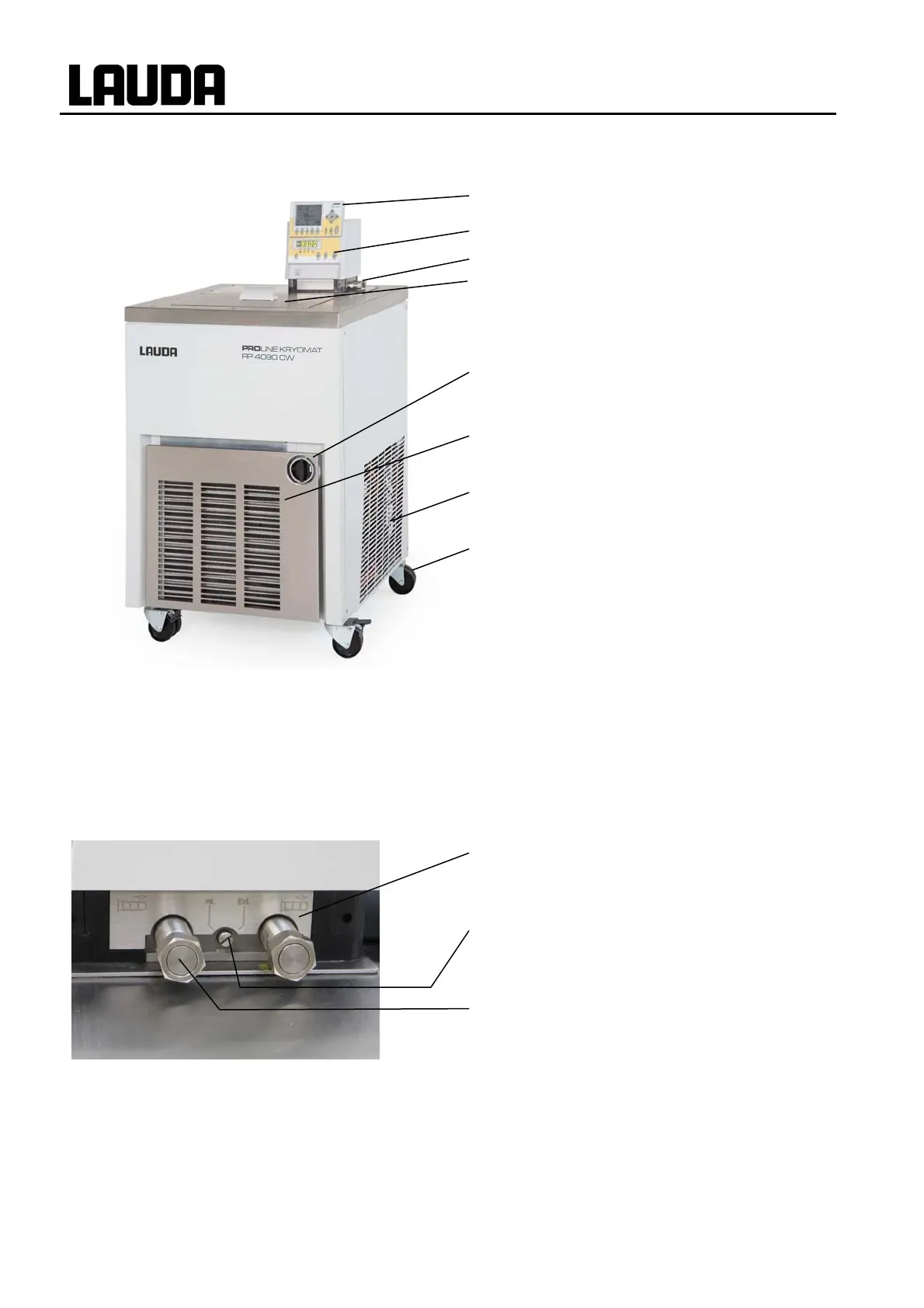

3 Controls and functional elements
1
2
3 and 4
5
6
7
8
9
1 Mobile Command control element (see page 15)
2 Master control element
3 Pump connection on the side:
Pump outflow or pressure output
Suction nozzle (return to bath)
4 Bypass valve (see illustration on this page).
5 Bath cover
6 Rotary switch for power supply
7 Front cover (closed)
8 Grille (on both sides)
9 Four steering transport rollers, two off them with
stoppers
1
2
3
Pump connection on the side:
1 Suction nozzle (return to bath)
Pump outflow or pressure output
(closed off with screw plug)
refer to housing for label
2 Bypass valve
(in "external" position)
3 Pump outflow, pressure output
Suction nozzle (return to bath)
(closed off with screw plug)
refer to housing for label
