Proline Kryomats

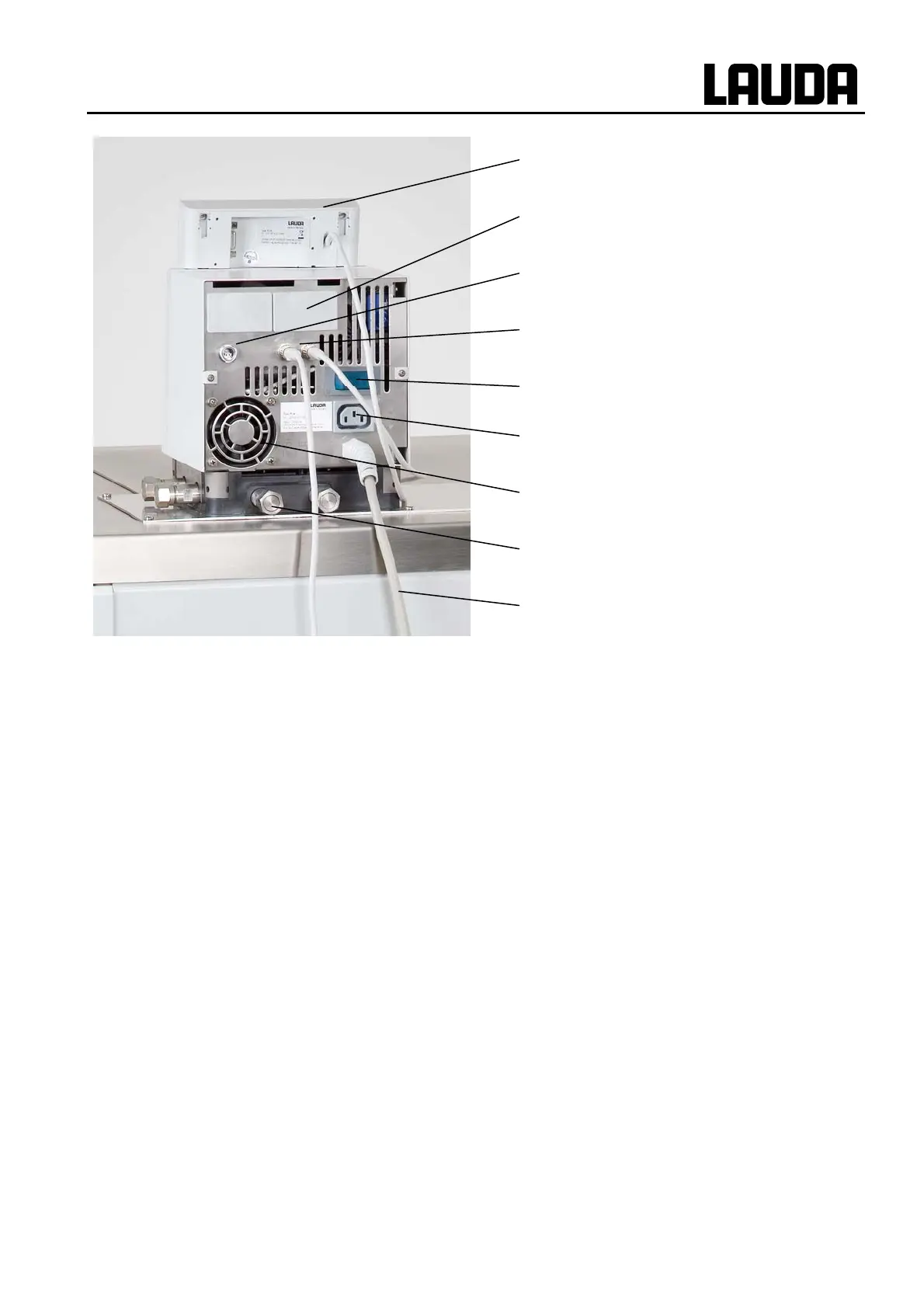

YAUE0007 / 2/26/2009 Controls and functional elements 15
1
2
3
4
5
6
7
8
9
1 Mobile Command Console (see next page)
2 Covers for the two module slots
3 Connection socket 10S
for the external Pt100 temperature probe
4 Connection socket 70S (LAUDA internal bus
(LiBus)) for bus suitable for unit and to which the
refrigerating lower section and Command Console
are connected
5 Mains switch
6 Connection socket 51H
7 Air intake for electronic head
8 Pump connection rear and on the side:
Suction nozzle (return to bath) & pump outflow
or pressure output
refer to housing for label
9 Mains connecting lead
