LAUNCH X-431 PRO (DBSCar V) User Manual
22
vehicle’s cigarette lighter receptacle, and the other end to the power jack of
OBD I adaptor.

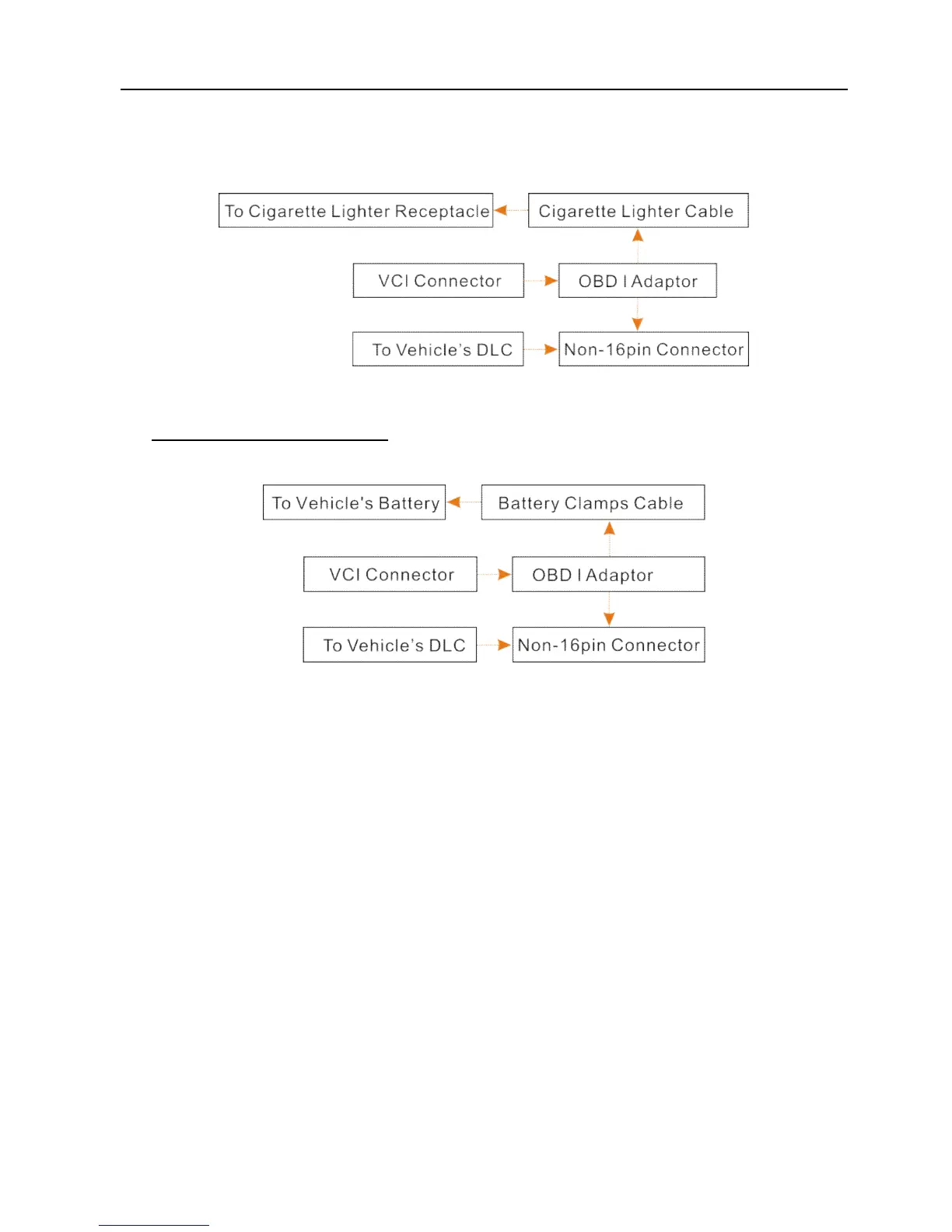

Fig. 4-11
B. Battery Clamps Cable: Connect one end of the battery clamps cable to
vehicle’s battery, and the other end to the power jack of OBD I adaptor.
Fig. 4-12
4.4 Bluetooth Setting
There are two kinds of ways available for X-431 PRO to pair with the VCI
connector.
1. Connect one end of the USB cable (optional) to the Mini USB port of the VCI
connector.
2. Connect the other end to the USB port of the PC. The power indicator of the
VCI connector lights up.
3. Enter Bluetooth setting screen by tapping “Settings” --> “Bluetooth”, slide the
Bluetooth switch to ON and X-431 PRO starts searching for all available
Bluetooth device.
