1.5 Location of the Data Link Connector (DLC)
The DLC (Data Link Connector or Diagnostic Link Connector) is typically a 16-
pin connector where diagnostic code readers interface with the vehicle’s on-
board computer. It is usually located 12 inches from the center of the instrument
panel, under or around the driver’s side for most vehicles. For some vehicles
with special designs, the DLC location may vary.

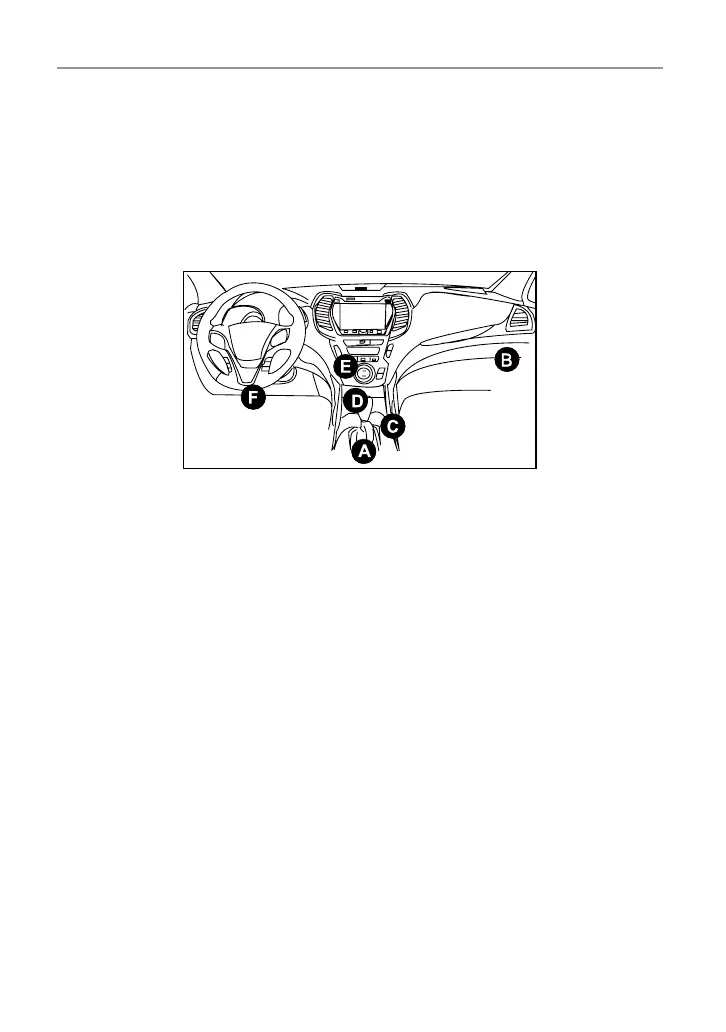

Refer to the following gure for location.
A- Opel, Volkswagen, Audi
B- Honda
C- Volkswagen
D- Opel, Volkswagen, Citroen
E- Changan
F- Hyundai, Daewoo, Kia, Honda, Toyota, Nissan, Mitsubishi, Renault, Opel,
BMW, Mercedes-Benz, Mazda, Volkswagen, Audi, GM, Chrysler, Peugeot,
Regal, Beijing Jeep, Citroen and other most popular models
If the DLC cannot be found, refer to the vehicle’s service manual for the location.
