X-431 ADAS PRO Calibration Tool User Manual
32
need to attach it on the cross member.
*Note: While calibrating the front camera, NEVER keep the radar kit hanging on the cross
member. Decreasing the cross member may cause the radar kit accidentally reaching to the
floor, which will cause damage to the radar kit or generate a risk of person injury.
1. Switch off the laser beam with the switch.

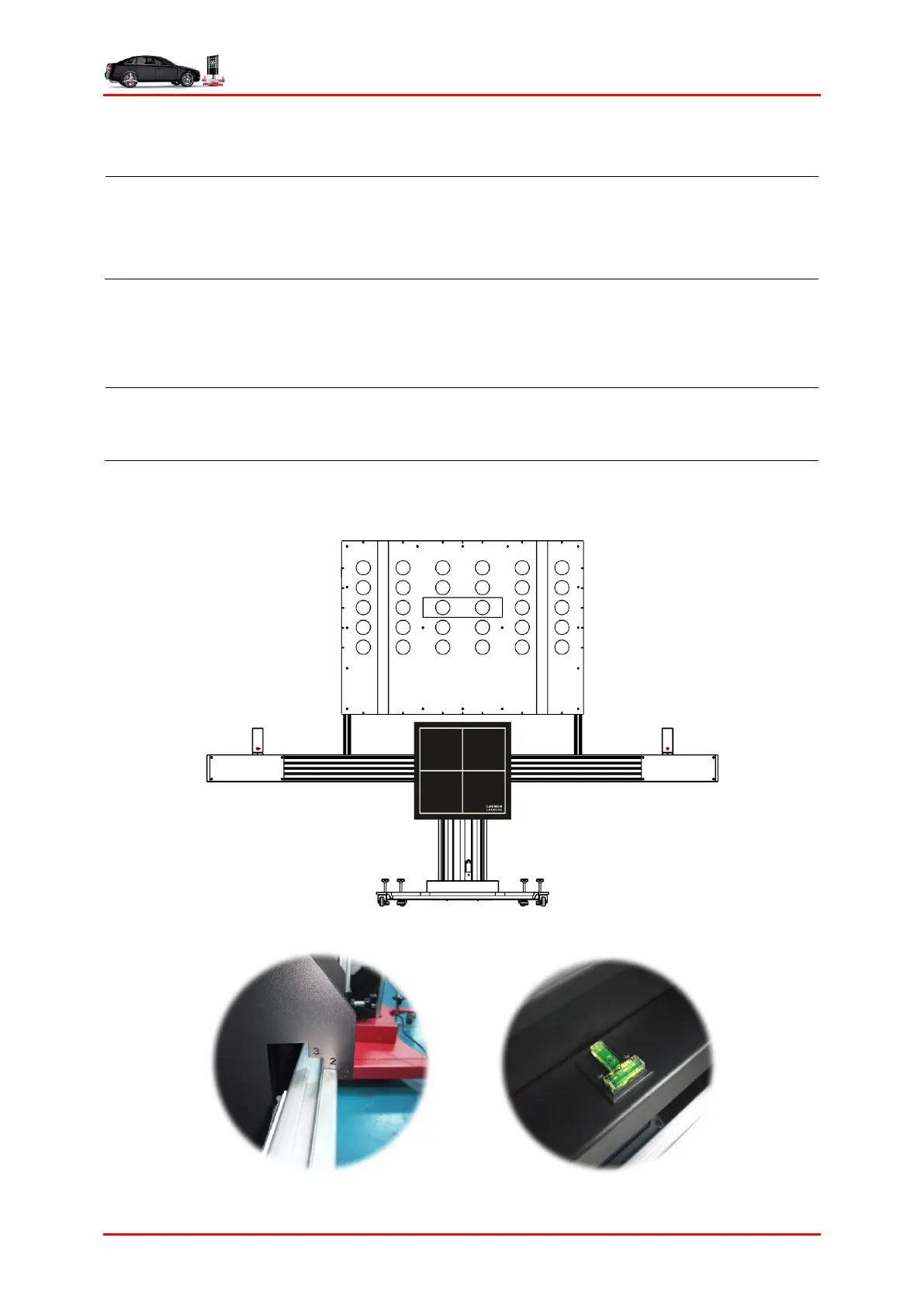

2. Hang the radar reflector on the center of the cross member until it is firmly attached
on the cross member. The radar reflector must be within the radar sensor area.
*Note: There are total 3 positions marked with numbers (1, 2 & 3) for hanging on the cross
member.
3. When calibrating the radar sensor, please ensure that the bubbles of the level gauge
on the radar reflector is centred.
Fig. 4-12
Fig. 4-13
