LAUNCH X-431 ADAS PRO Calibration Tool User Manual
27
4.1.2 Installing the cross member & calibration frame

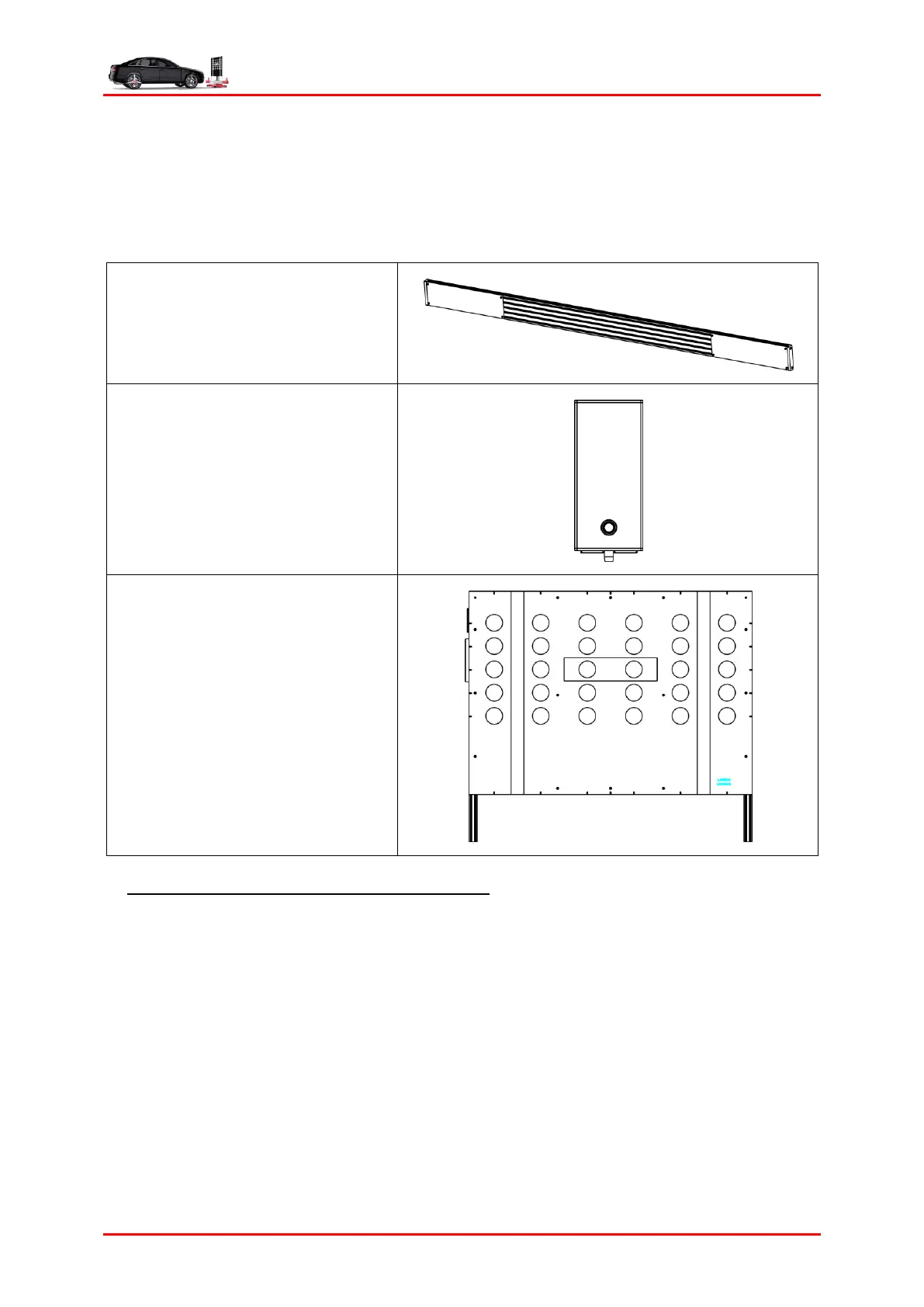

While installing the cross member and calibration frame, please prepare the following
items:
Cross member
Laser modules (x 2)
Calibration frame
1. Secure the cross member on the beam lifter: There are two mark-off lines (the
distance between them indicates the width of cross-linking bracket 2) marked on the
cross-member and next to them are 4 floating screws pre-installed in the sliding rail
1 & 4 respectively. See Fig. 4-5.
