LAUNCH X-431 ADAS PRO Calibration Tool User Manual
31
3). Align the mouting holes on the docking holder with the ones on the fixing bracket
and use the screws to fix it.

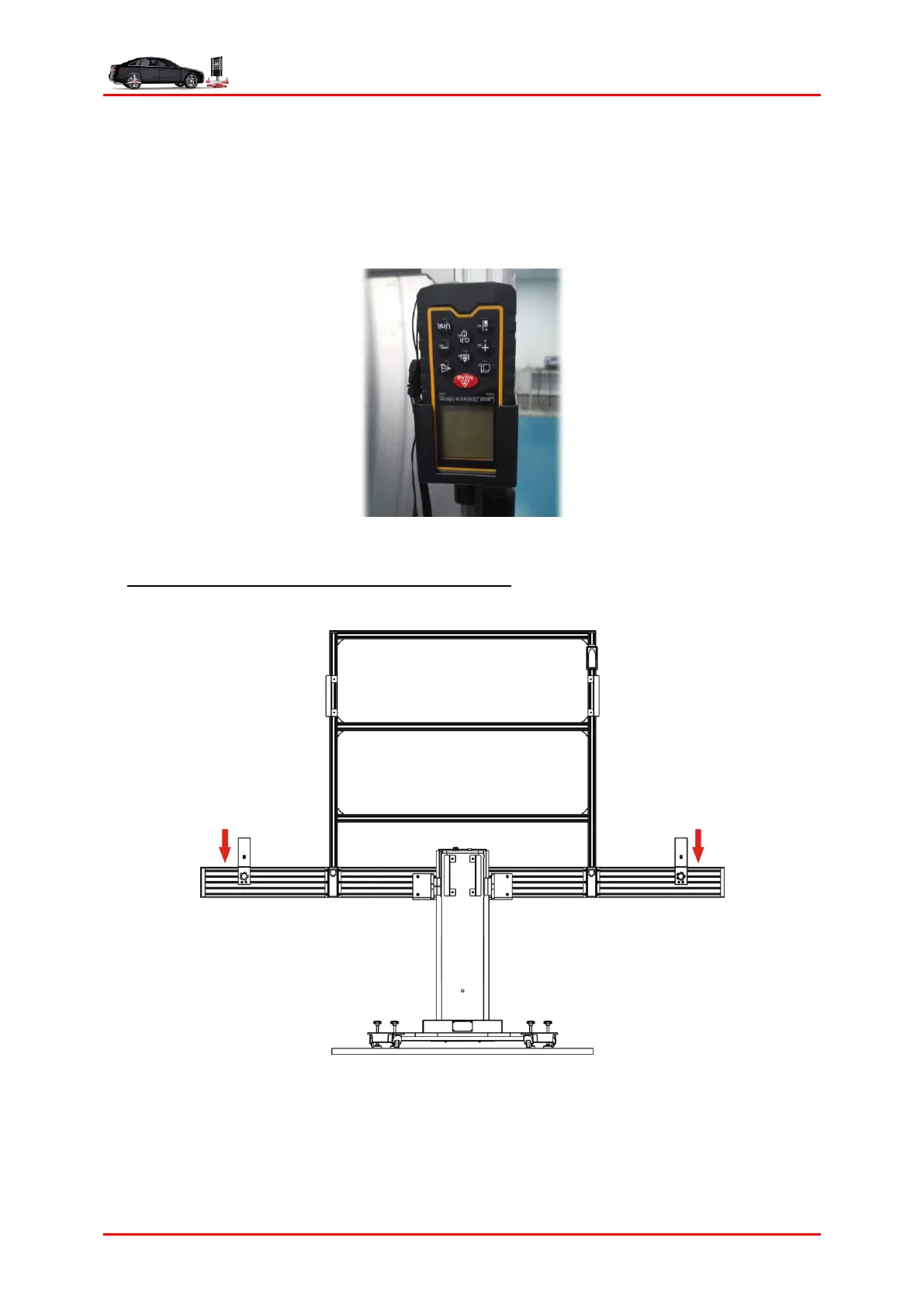

4). Place the laser distance meter into the dock holder ensuring the screen facing
down.
Fig. 4-10
4. Mount the laser modules on the cross member: Mount the two laser modules on the
support base respectively, and then use the fixed bolts to fasten it.
Fig. 4-11
4.1.3 Installing the radar kit
To calibrate the radar-based ADAS system, a radar kit is required. In this case, you
