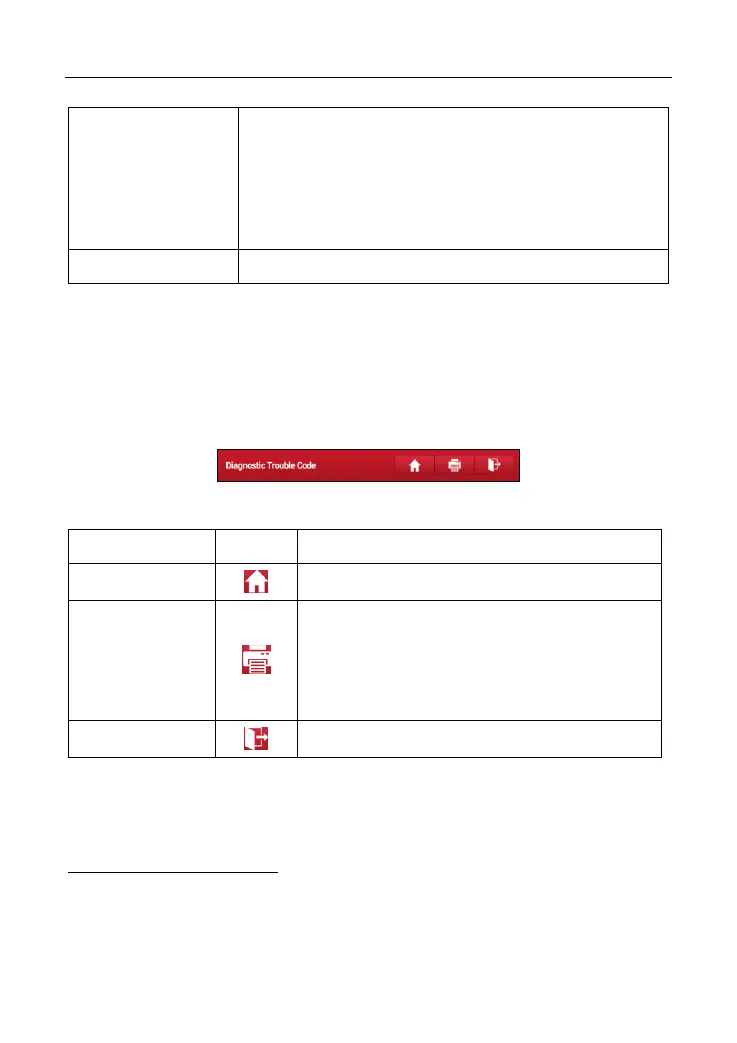

4.2.3 Diagnostics toolbar
The diagnostics toolbar contains a number of buttons that allow you to print the
displayed data or make other controls. It is displayed on the upper right corner of
the screen and goes through the whole diagnostic session. The table below
provides a brief description for the operations of the diagnostics toolbar buttons:
Fig. 4-8
Name
Button
Description
Home
Returns to Job menu screen.
Print
Tap to print the current screen. To perform
printing, you need to purchase an extra Wi-Fi
printer manufactured by LAUNCH separately
and then properly configure the wireless printer
following the steps described in Chapter 9.8.3.
Exit
To exit the diagnostic application.
4.3 Connections
4.3.1 Preparation
Normal testing conditions

Turn on the vehicle power supply.

Vehicle battery voltage range should be 9-18V.

Throttle should be closed at its close position.
