ExtV
0.0rpm
ExtI
0.0rpm
For External Voltage Signal
0-5V/0-10V
For External Current Signal
4-20mA

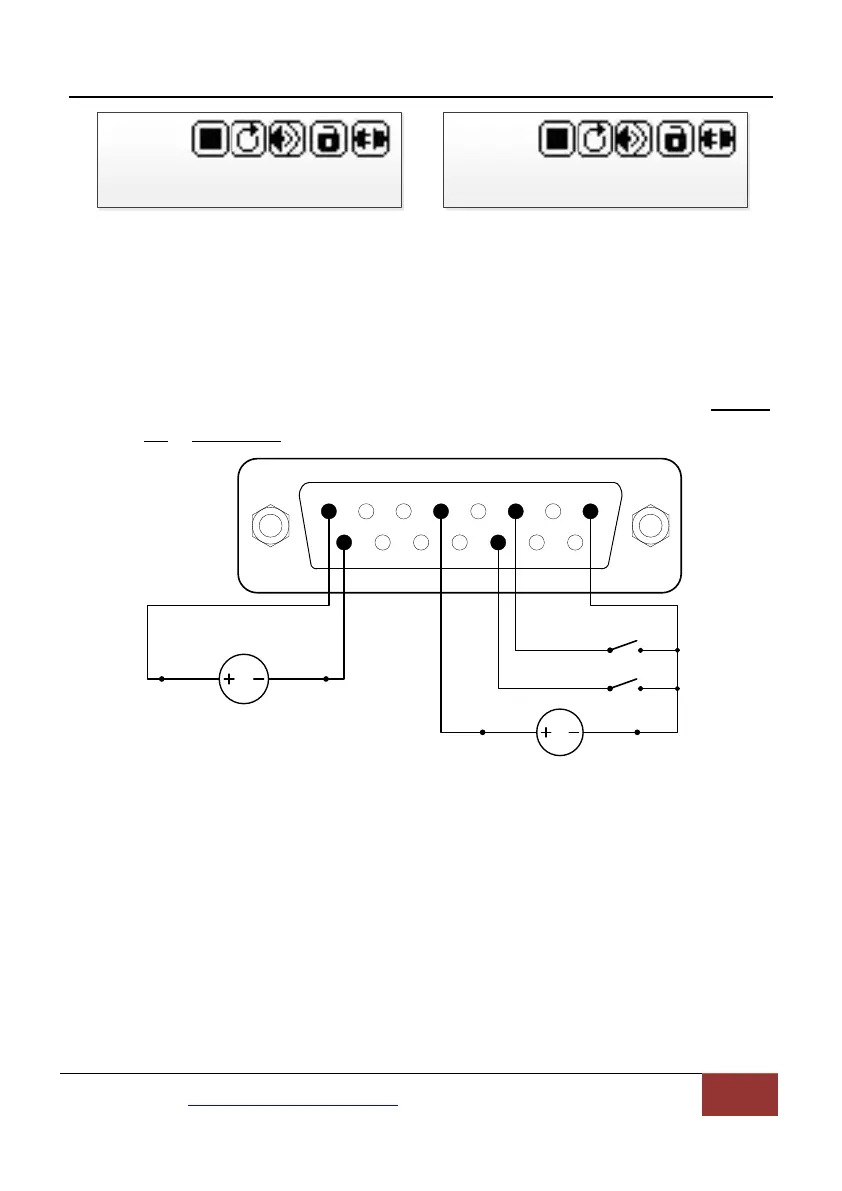

Figure 15. External Control Mode
To control pump by external signal:
1) Switch the power off. Wire the DB15 connector as shown on
Figure
16or Figure 17. Connect it to the DB15 port on the rear of the pump.
1 2 3 4 5 6 7 8
9 10 11 12 13 14
15
ADC_W
AGND
0-5V/0-10V
/4-20mA
12VDC
VCC_W COM
RS_W
CW_W
Figure 16. DB15 Wiring with External 12VDC Power Source
