CS2RS Series Modbus RS485 Closed Loop Stepper Drive User Manual
- 4 -

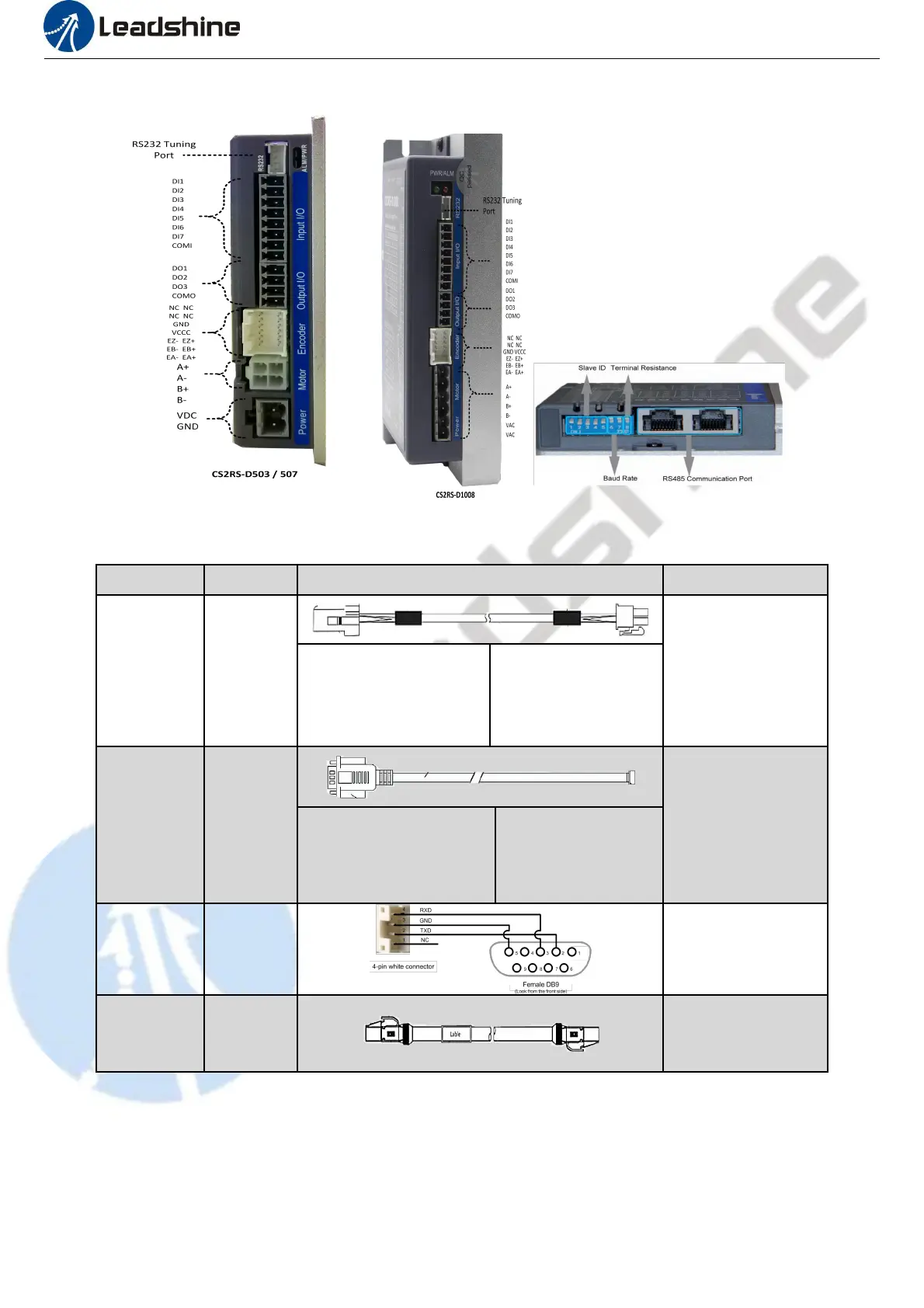

1.4.4 Parts description
1.4.5 Accessories Information
Name
Necessary
Description
Motor
extension
cable
Yes
(CABLEM-RZ*M*)
for CS2RS-D503/507;
(CABLEH-RZ*M*)
for CS2RS-D1008;
Optional length:
1.5m,3m,5m,8m,
10m,12m,15m
Motor Side:
Manufacturer: TE
Housing: 172159-1-4P
Terminal: 770904-1
Drive Side:
Manufacturer: Molex
Housing: 39012040
Terminal: 39000038
Encoder
extension
cable
Yes
(CABLEM-BM*M*)
Optional length:
1.5m, 3m, 5m,8m,
10m,12m,15m
Motor Side:
Manufacturer: NSTECH
Drive Side:
Manufacturer: Molex
Housing: 513531200
Terminal: 561349000
Tuning Cable
No
CABLE-PC-1 cable
Network
cable
Yes
Optional length:
0.1m, 0.2m, 0.3m,
0.4m, 1m, 1.5m, 2m,
3m,5m,7m, 10m
Note:
(1) Tuning cable is not necessary it can also modify parameters by controller PC software.
(2) Network cable is necessary but you can also buy shielded network cable through 3
rd
party.
