2 Installation
2.1 Storage and Installation Conditions
2.1.1 Storage condition
 Correctly packaged and store in a clean and dry environment where direct sunlight is avoided.
 Store within an ambient temperature ranging from -20℃ to +65℃.
 Store within a relative humidity ranging from 40% to 90% and non-condensed.
 Avoid any type of exposure to corrosive gases.
2.1.2 Operating ambience conditions
 Temperature ranging from 0℃ to 50℃. The ambient temperature of drive for long-term reliability should be under 40℃.
Please install the drive in a well-ventilated area.
 Operation within a relative humidity ranging from 40% to 90% and non-condensed.
 Vibration lower than 0.15mm at a frequency of 10Hz-55Hz.
2.2 Dimensions
Unit: mm (1inch=25.4mm)

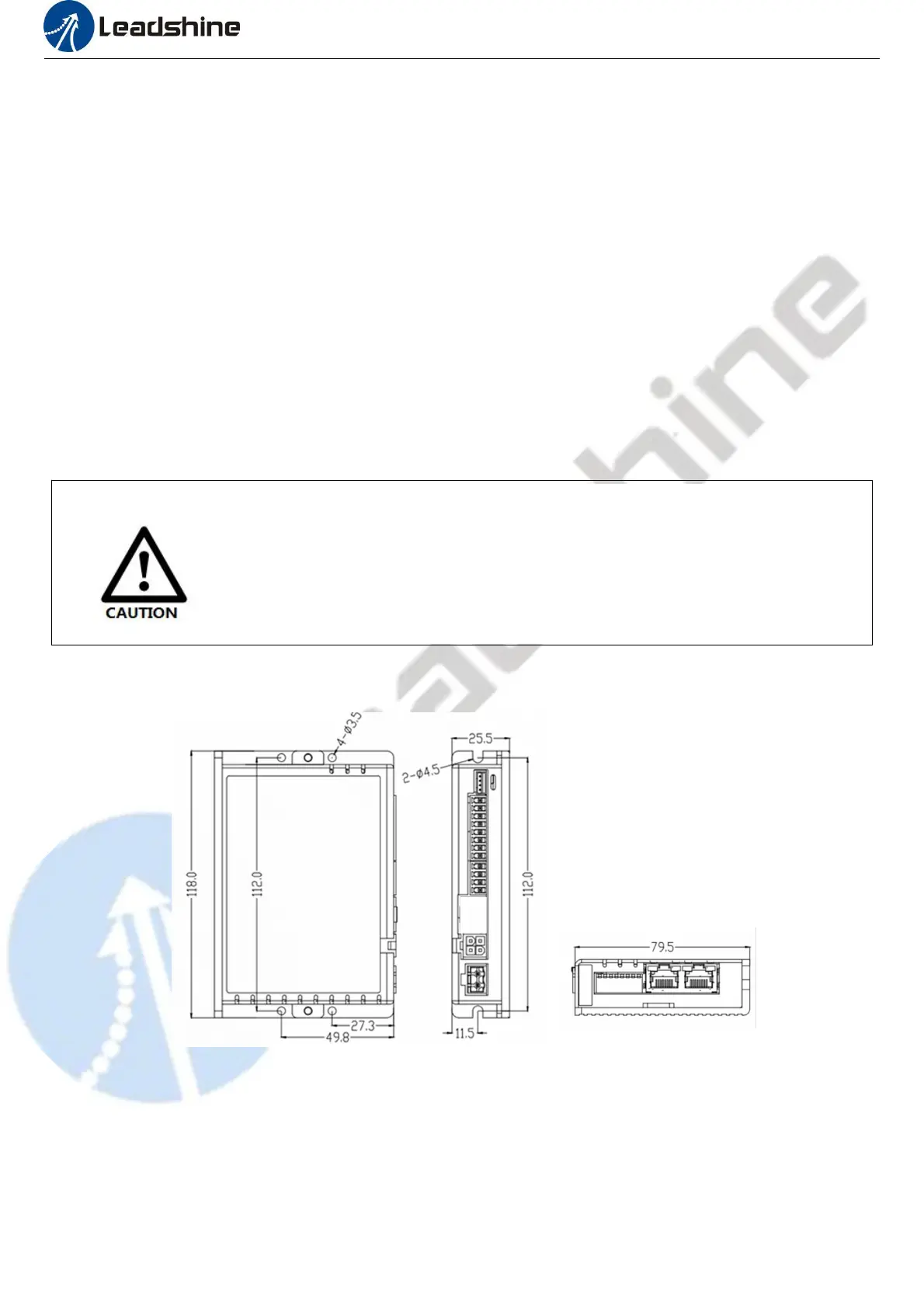

CS2RS-D503 / 507

DO NOT mount the drive and motor in a location subjected to corrosive or
flammable gases, and combustibles.
 Please mount the drive and motor in an indoor electric control cabinet without
liquid where direct sunlight is avoided.
 DO NOT mount the drive and motor in a location subjected to airborne dust.
 Please ensure grounding wires are securely connected
