3.4.3 Brake Output
Use PC software (from Leadshine or Controller or PLC vendor) to configure this output as a BRAKE CONTROL output. In
this case, brake signal can be used for automatic brake control while system power failure. It is recommended to connect a fly-
wheel diode in parallel to a 24VDC relay and brake coil connection. Refer to the following figure for brake connections.

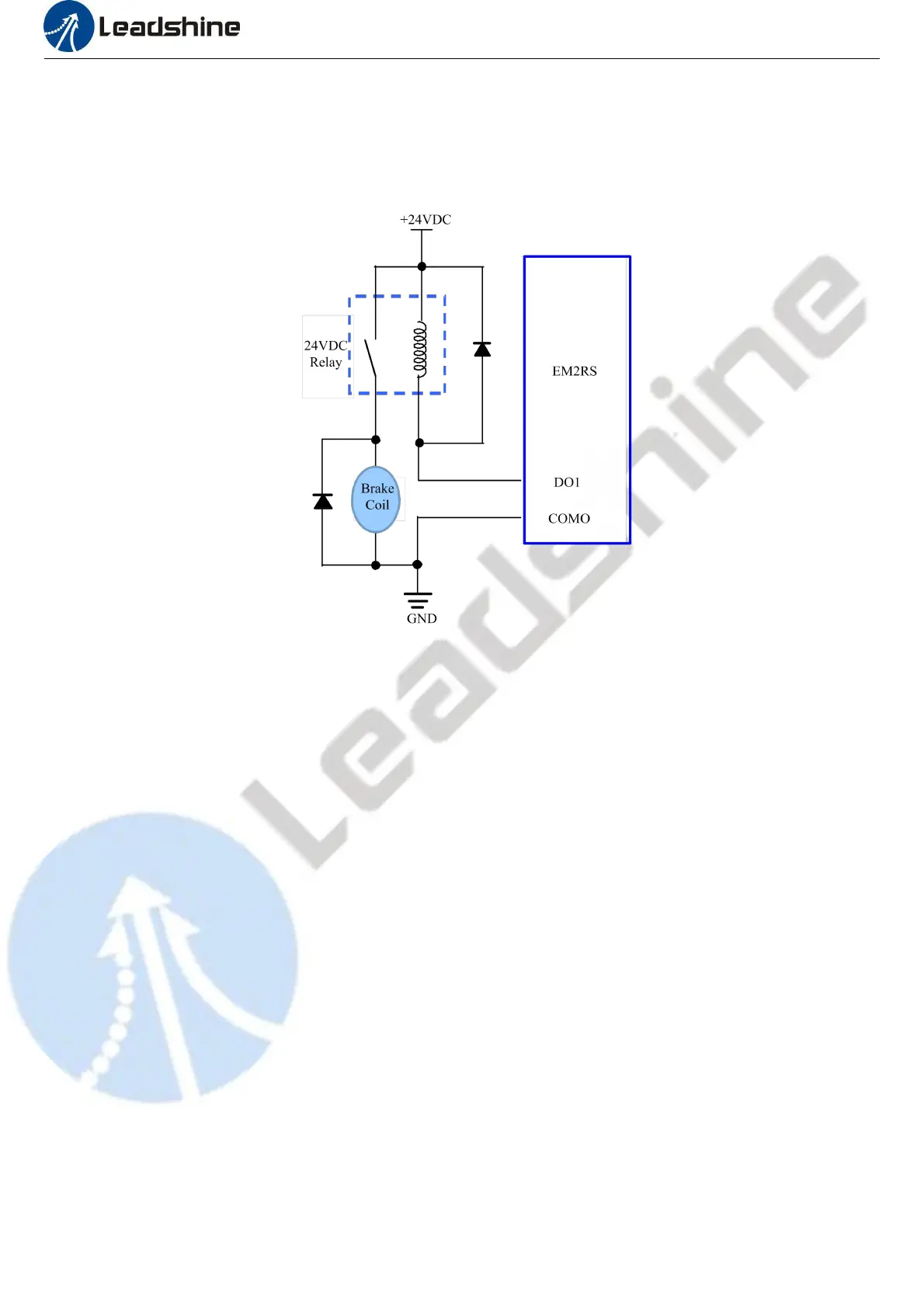

Figure 3.5: Brake output connection
