LeCroy Waverunner2 LT354 Series User Manual

5-38 Performance Verification Rev. D
DC Coupling
!
Recall
xxxP042.PNL
or configure the DSO as shown in 5.10.4.a and make
the following change :
Set Ext Trigger level :
DC
−
−−
−
300 mV
!
Connect the test equipment as shown in Figure 5-7.
!
Press
Clear Sweeps
.
!

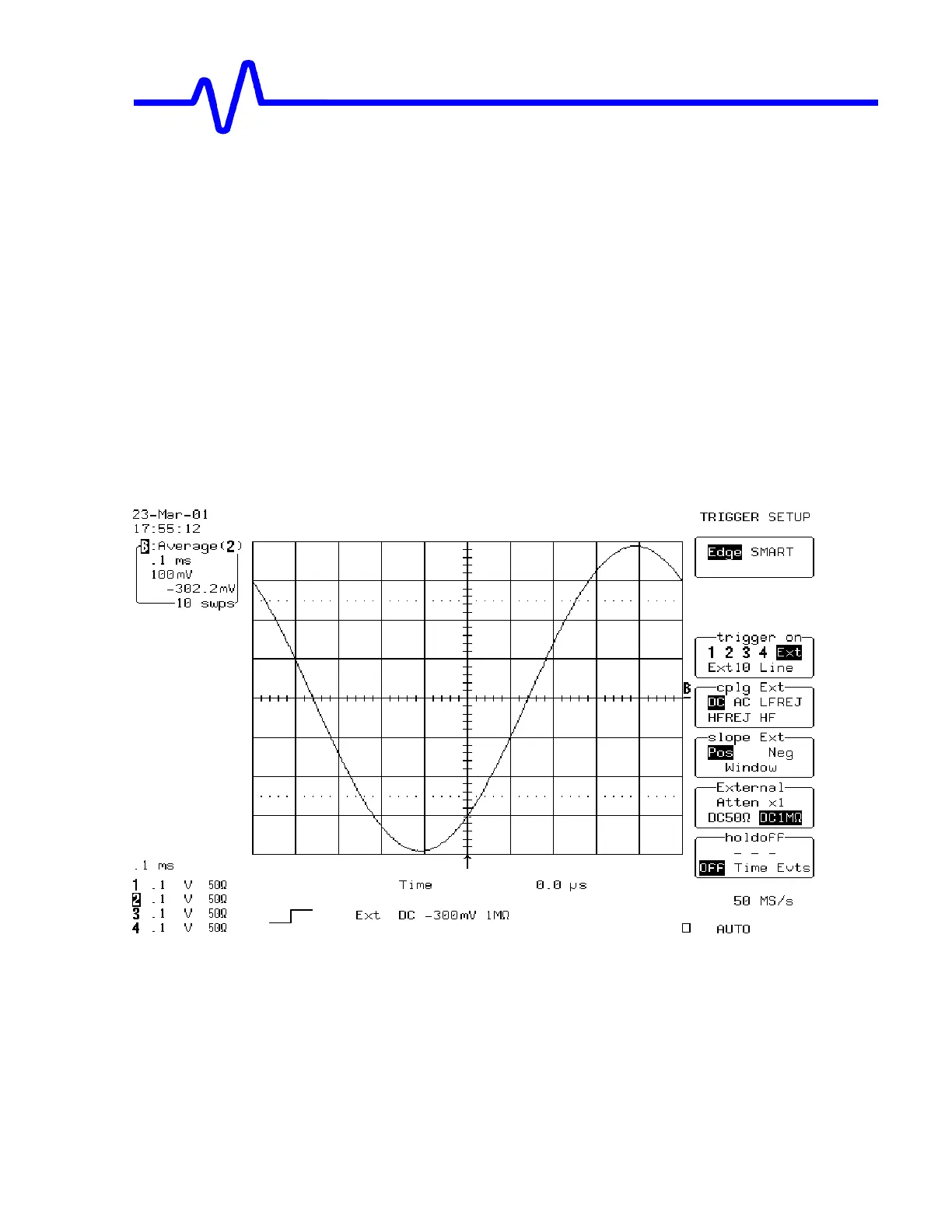

Acquire 10 sweeps and record in Table 11 the
level
readout displayed below
100 mV in the icon
2,
at top left
.
!
Compare the test results to the corresponding limit in the test record.
!
Set Trigger Slope Ext :
Neg
!
Acquire 10 sweeps and record in Table 11 the
level
readout displayed below
100 mV in the icon
2,
at top left
.
5.10.7 External/10 Trigger at 0 Division Threshold

LeCroy Waverunner2 LT354 Series Specifications

General

Bandwidth	350 MHz
Channels	4
Input Coupling	AC, DC, GND
Display	10.4" Color LCD
Vertical Resolution	8 bits
Input Impedance	1 MΩ
Max Input Voltage	400 V (DC + peak AC)
Trigger Types	Edge, Pulse Width, Pattern
Interface	GPIB
