Lectrosonics SMQV - Optional RM Remote Control

SMQV
LECTROSONICS, INC.
16
Optional RM Remote Control

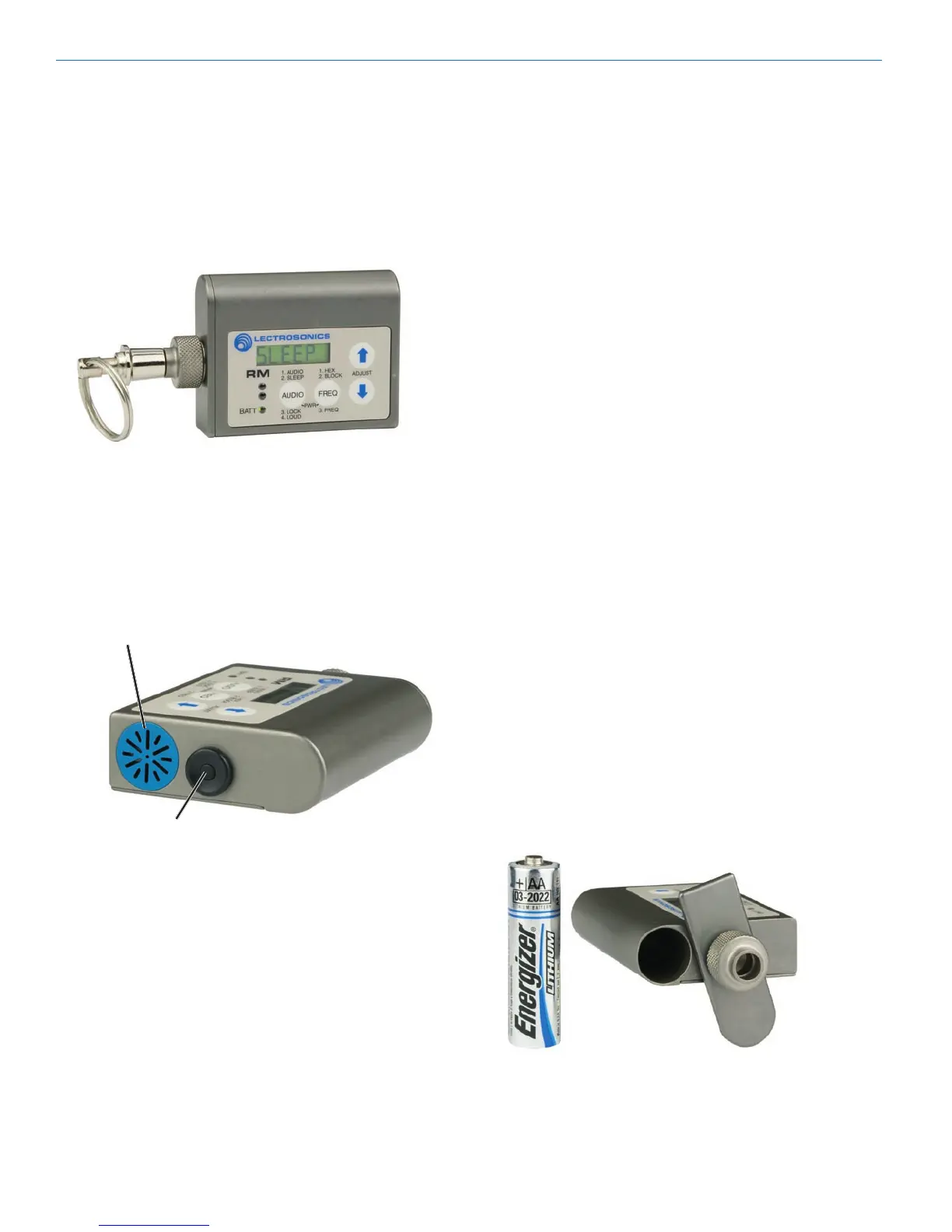

The RM unit gives you remote control of SM Series
transmitters using an audible tone delivered to the mi-
crophone. The panel layout is the same as the transmit-
ters. Simply set the desired value or mode on the LCD,
then press the send button to set the transmitter to the
same setting or mode.
Hold the speaker on the RM close to the microphone
when pressing the pushbutton. A “dweedle” tone will
play from the RM speaker into the microphone and the
parameter on the transmitter will be set immediately.
Available adjustments:
• Audioinputgain
• Frequency
• LockorUnlockModes
• SleepModeON/OFF
Send Button
Speaker
Whenthetransmitterisinthepowersavingsleep
mode, it uses only 20% of the normal battery drain,
so battery life with be 5 times longer. This is especially
useful in situations where the transmitter is buried deep
inside costuming and there are waiting periods between
use. The transmitter can “sleep” for several hours and
then be awakened and adjusted when the production is
about to begin.
Powering the RM on and off
ToturntheRMonoroff,presstheAUDIOandFREQ
buttons together briefly. The unit powers up on the page
that was displayed when the unit was powered off last.
ThesetupscreensareaccessedwiththeAUDIOand
FREQbuttons.Onceonthedesiredscreen,thevalueis
adjustedwiththeUPandDOWNarrowbuttons.
Tochangeatransmitter’ssettingviatheRM,select
thescreenandvalue,thenpresstheSENDbutton
while holding the speaker close to the microphone.
The speaker should be uncovered and held within a
fewinchesofthetransmitter’smicrophone.Thelongest
usable range is about 6 feet, depending on the micro-
phone and volume settings used.
Onlythespecicfunctiondisplayedisaltered.Forex-
ample,iftheremotecontrolisontheAud(audiolevel/
gain) screen, pressing the send button will set the gain
on the transmitter but will not affect any other setting.
Setup Screens
TheAUDIObuttoncyclesthrough4screens:
1) Aud-settransmitter’saudiolevel
2) SLEEP/unSLP-causetransmittertosleeporwakeup
3) Loc/unLoc-lockorunlocktransmitter’sbuttons
4) Loud-adjustRMspeakervolume
(pressSENDbuttonforasampletone)
TheFREQbuttoncyclesthrough2or3screens,de-
pending on the settings:
1) CH-settransmitter’schannel
(usingblock-independenthexcode)
2) b-selectablocknumber
(optional — uncovers next page)
3) 000.000-settransmitter’sfrequencyinMHz
(avail. if a block is selected)
A single AA Lithium battery will operate
the RM for up to several years. Unscrew
the knurled knob for access to the battery
compartment.
