Lectrosonics SMQV - Whip Antennas

Super-Minature Belt Pack Transmitter
Rio Rancho, NM
21
21
22 23 24 25 26 27 28 29
20 19
470
944

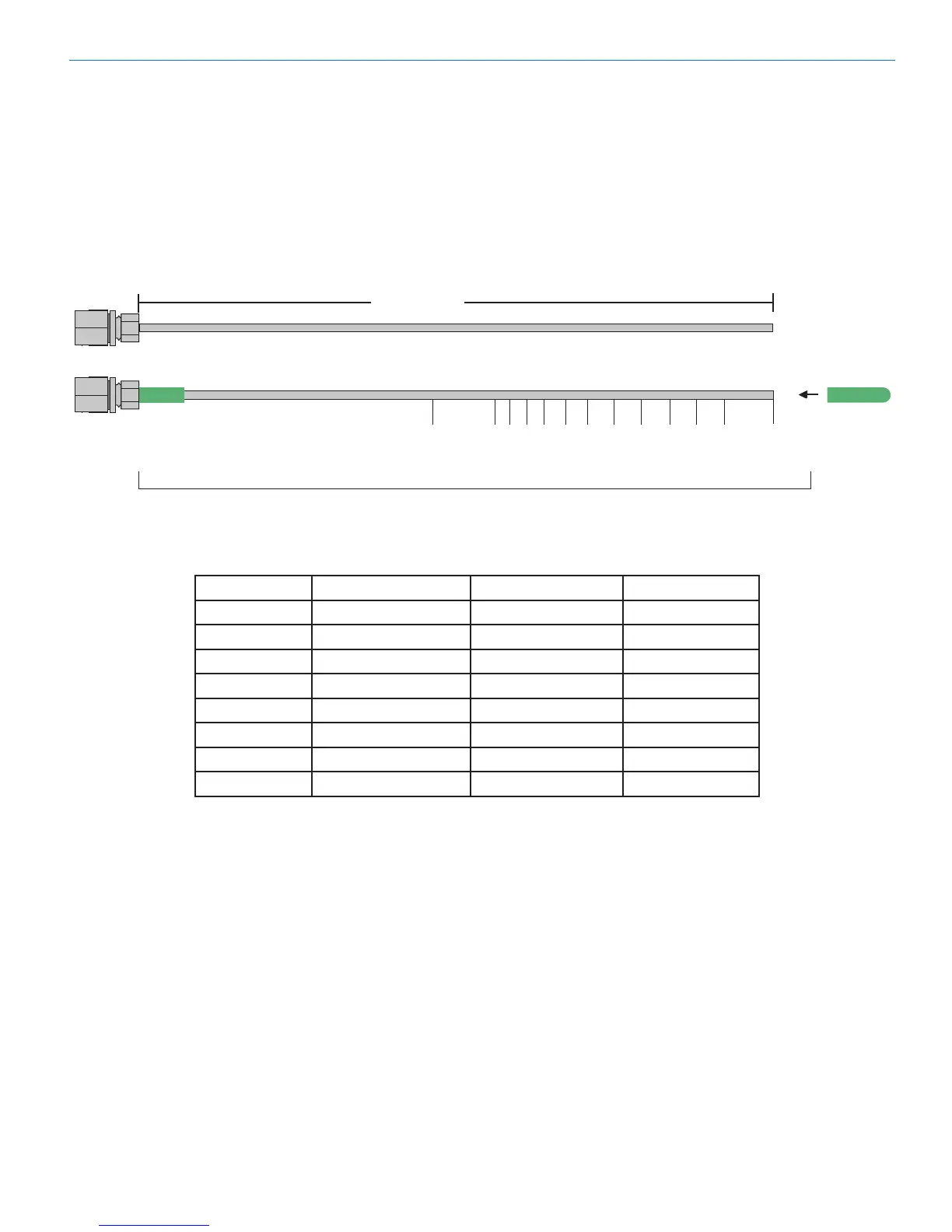

Note: Check the scale of your printout. This line should be 6.00 inches long (152.4 mm).
Whip Length
 BLOCK FREQUENCY CAP ANTENNA
  RANGE COLOR WHIPLENGTH
470 470.100-495.600 Black 5.48”
19 486.400-511.900 Black 5.20”
20 512.000-537.500 Black 4.95”
21 537.600-563.100 Brown 4.74”
22 563.200-588.700 Red 4.48”
23 588.800-614.300 Orange 4.24”
24 614.400-639.900 Yellow 4.01”
25 640.000-665.500 Green 3.81”
26 665.600-691.100 Blue 3.62”
Whip Antennas
Lectrosonics AMM Series UHF transmitter antennas
follow the color code specifications in the chart below to
identify operating frequency block range. (The frequen-
cy block range is engraved on the outside housing for
each individual transmitter.) If a situation exists whereby
the antenna is defective and the antenna cap is miss-
ing, refer to the following chart to determine the correct
replacement antenna.
