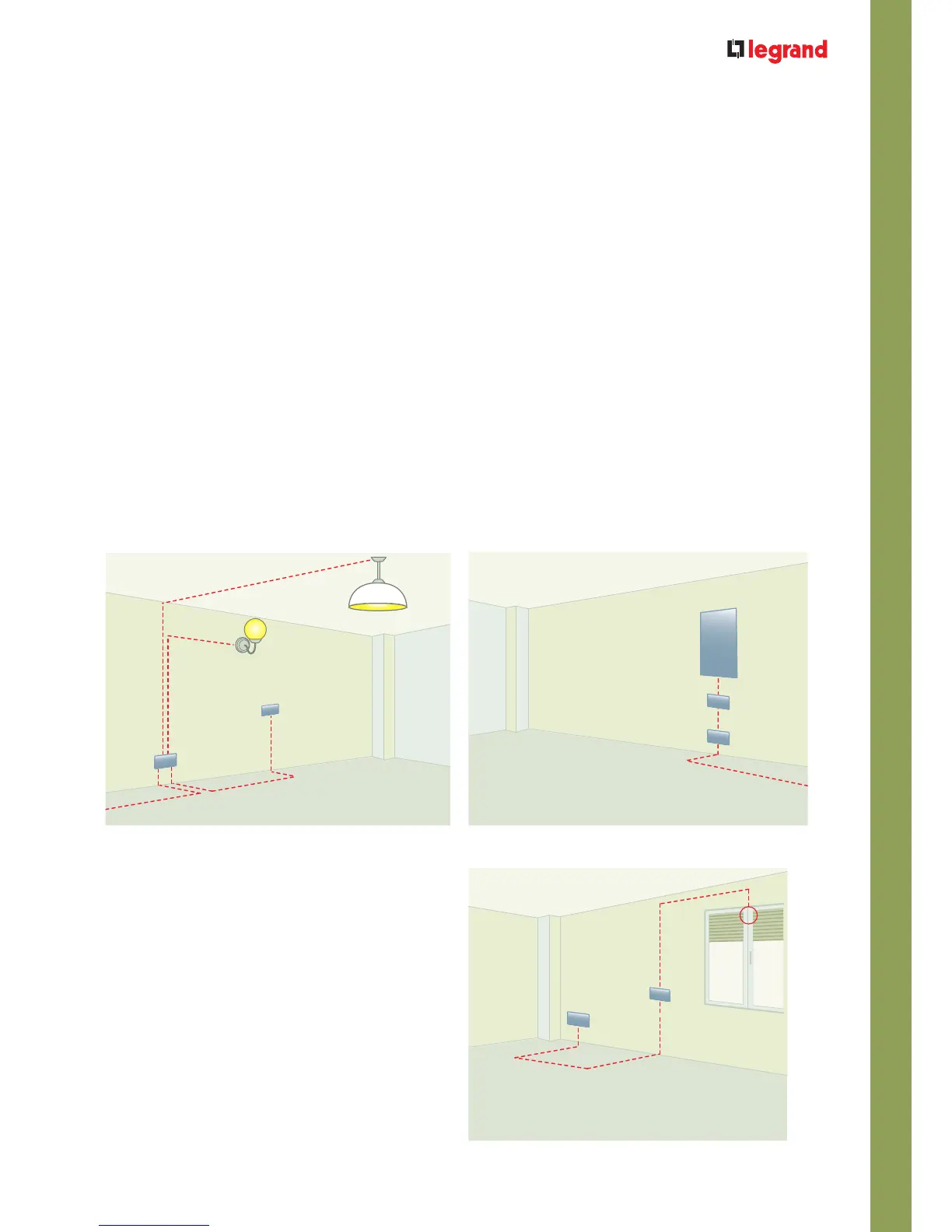

When designing a light automation system, comply with the following installation requirements:
• If various loads are to be installed in the room, controlled from
several points (DIN actuator inside a junction box), the duct
must go from the wall box to the box, and from the load to the
box itself.
• If a load with light adjustment must be installed (DIMMER), the
actuator shall be installed inside the distribution board, and the
ducts will be installed in line with the above prescriptions.
•
The bending radiuses of the “main” paths must be such that all
risk of damage to cables is avoided,
• Wall ducts must be horizontal, vertical or parallel to the wall
edges. Diagonal path are only allowed for VERY short sections,
•
Any exposed wires may follow the shortest path,
•
Any wires installed inside ceilings or underfloor may follow the
shortest path.
• If shutter control is to be installed, the duct must run directly
from the wall box to the load.
When designing a shutters automation system, comply with the following installation requirements:
For all My Home Legrand application, when marking out the paths of the ducts, the following recommendations should be followed:
Power cable
