NAVIGATION
Navigate from one field to another using (up) or (down)
arrow keys. The active field is indicated by flashing
(alternates) between yellow text on black background and
black text on yellow background.
Once active, use the Select button to move to a menu or
function within the active field. Value fields are used to
adjust parameter settings. They are shown in “less-than/
greater-than” symbols: <value>. Once active, change them
using(left) and(right) arrow keys. The right key increments
and the left key decrements a value. Selections wrap-
around if you continue to press the key beyond maximum
or minimum values. Moving away from the value field
overwrites the original value. The Home button takes you
to the main menu. The Back button can be thought of as an
undo function. It takes you back one screen. Changes that
were in process prior to pressing the key are lost.
IR COMMUNICATION
IR communication can be affected by the mounting height of
the sensor and high ambient lighting such as direct daylight
or electric light such as floodlights, and some halogen,
fluorescent lamps, LED’s.
When trying to communicate with the device, be sure to be
positioned under the sensor without any obstructions. Every
time the commissionng tool establishes communication with
the device, the controlled load will cycle.
FSP211
The FSP-211 is a motion sensor that dims lighting from high to low based on movement. This slim, low-profile sensor is
designed for installation inside the bottom of a light fixture body. The PIR lens module connects to the FSP-211 through a 1.30”
diameter hole in the bottom of the fixture.
The sensors use passive infrared (PIR) sensing technology that reacts to changes in infrared energy (moving body heat) within
the coverage area. Once the sensor stops detecting movement and the time delay elapses lights will go from high to low mode
and eventually to an OFF position if it is desired. Sensors must directly “see” motion of a person or moving object to detect
them, so careful consideration must be given to sensor luminaire placement and lens selection. Avoid placing the sensor where
obstructions may block the sensor’s line of sight.
Occupancy Sensor
5E4
800.879.8585
www.wattstopper.com
15195r1
LOAD
LINE
NEUT
(violet)
(grey)
Class 2 Wiring Only
18-20 AWG Solid CU Wire Only
230 VAC, 50 Hz
1200W max ballast

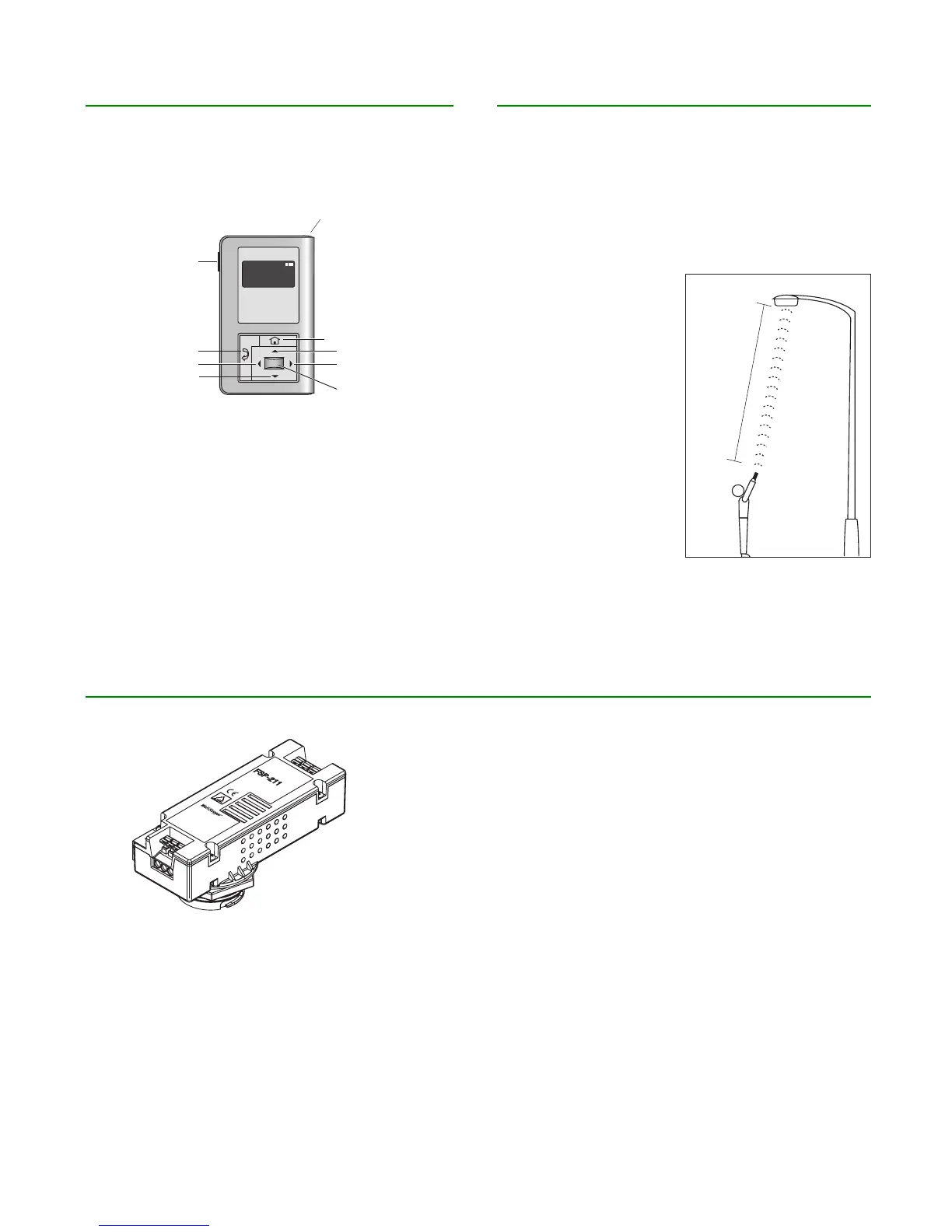

FSP-211
GRND
DIM-
DIM+
14-18 AWG Soli
d CU Wire Only
High/Low PIR
