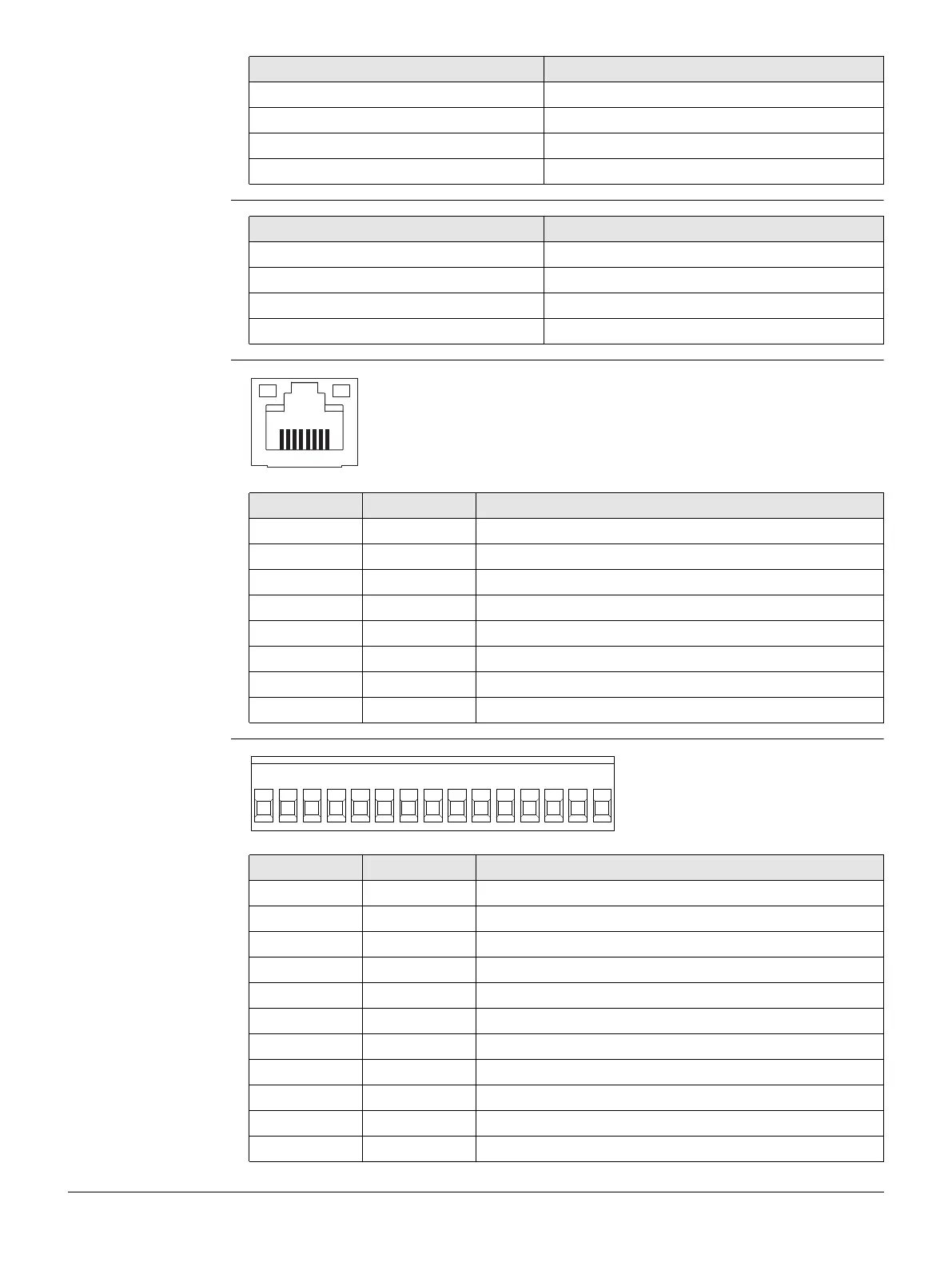

Leica ComGate10, Technical Data
38
Specification of
Outputs port
Specification of
Inputs port
Pin assignments for
port LAN and WAN
Pin assignments for
terminal block
Feature Specification
Number of outputs 2
Limiting continuous current 1 A
Maximum switching voltage 60 V DC, 42 V AC (Vrms)
Maximum switching capacity 60 W
Feature Specification
Number of inputs 2
Maximum input voltage 40 V DC
Minimum voltage for level 1 (set) 7.2 V DC
Maximum voltage for level 0 (not set) 5.0 V DC
Pin Name Description
1 Tx+ Transmit data
2 Tx− Transmit data
3 Rx+ Receive data
4- -
5- -
6 Rx− Receive data
7- -
8- -
12345678
006214_001
Pin Name Description
1 V GND Power Ground
2 V+ 12–48 V DC
3 V GND Power Ground
4 V+ 12–48 V DC
5 RxD RS232, non-isolated
6 TxD RS232, non-isolated
7 GND RS232, non-isolated
8 DO1 Dry contact relay normally open
9 DO1 Dry contact relay normally open
10 DO2 Dry contact relay normally closed
11 DO2 Dry contact relay normally closed
