Leica ComGate10, Technical Data
39

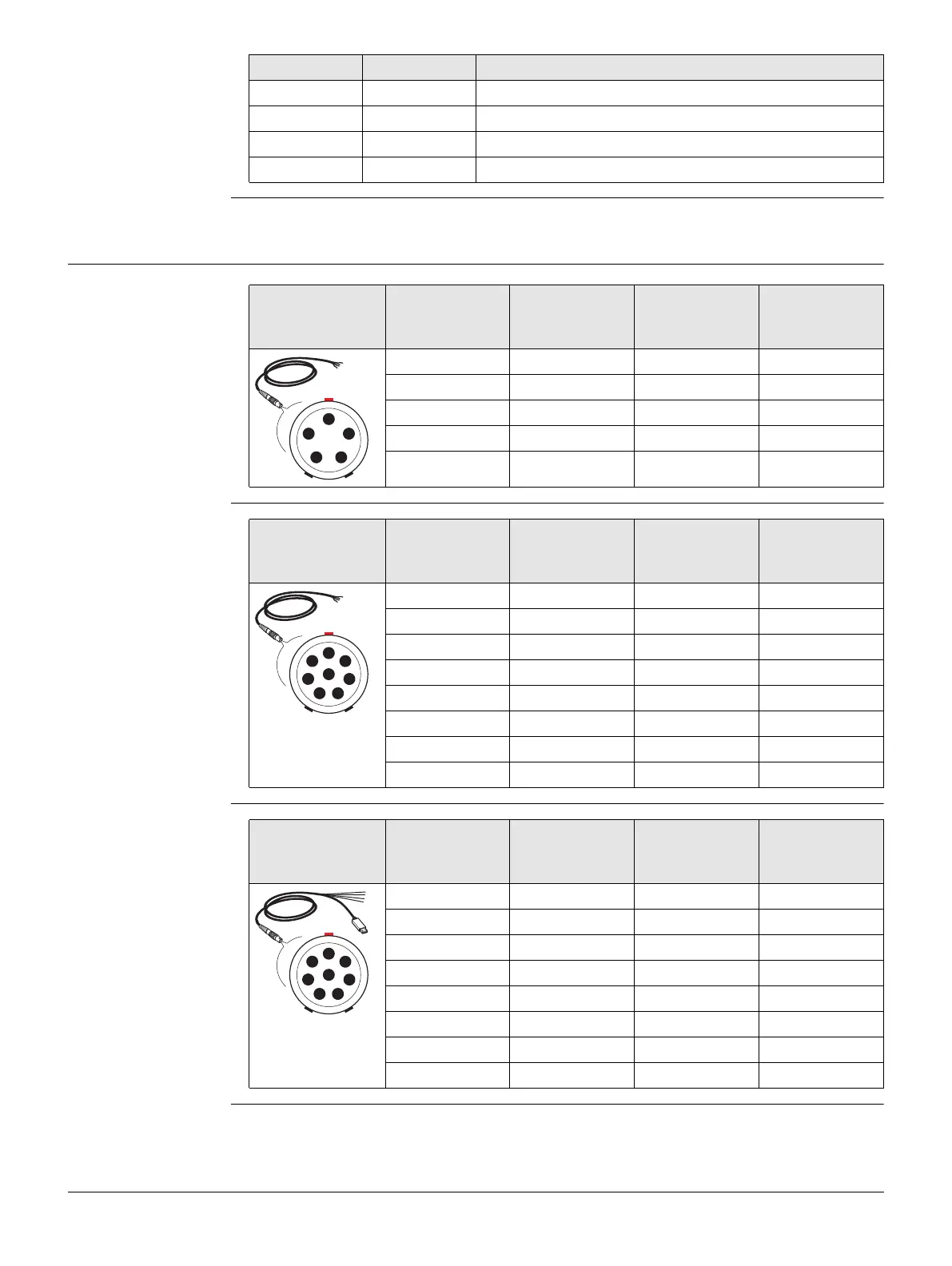

5.3 Cables to Connect Leica Sensors and External Devices to the
ComGate10
Leica TPS1000/
TPS1100/ TPS1200
sensor cable
Leica TM30/TS30
sensor cable
Leica MS60/TS60
MS50/TM50/TS50
sensor cable
12 DI1− -
13 DI1+ -
14 DI2− -
15 DI2+ -
Pin Name Description
Interface cable
GEV241
Connector pin
assignment
Wire colour Sensor signal Terminal block
clamp assign-
ment
1 Red Power in V+
2---
3 Blue Ground V GND
4 Green Data in TxD
5 Black Data out RxD
1
2
34
5
006216_001
Interface cable
GEV240
Connector pin
assignment
Wire coding Sensor signal Terminal block
clamp assign-
ment
1---
2---
3 Code 1 Ground V GND
4 Code 3 Data in TxD
5 Code 4 Data out RxD
6---
7 Code 2 Power in V+
8---
1
8
7
6
2
3
4
5
006217_001
Interface cable
GEV271
Connector pin
assignment
Wire colour Sensor signal Terminal block
clamp assign-
ment
1---
2---
3 Black Ground V GND
4 Purple Data in TxD
5 Yellow Data out RxD
6---
7 Red Power in V+
8---
1
8
7
6
2
3
4
5
006218_001
