Leica ComGate10, Technical Data
40

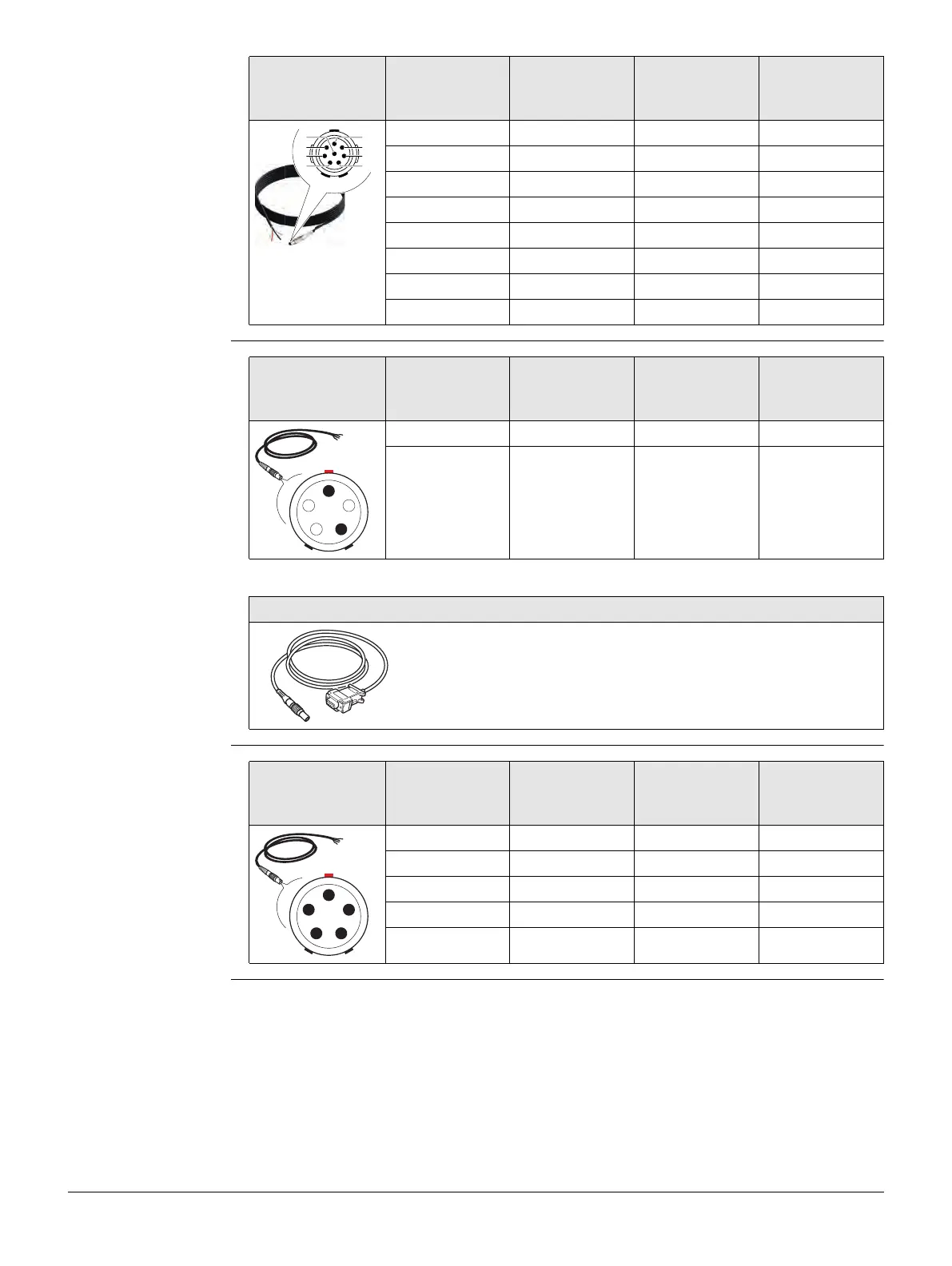

Leica GMX910 cable
Leica GMX902
sensor cable
Leica Nivel210
sensor cable
Interface cable
GEV212
Connector pin
assignment
Wire colour Sensor signal Terminal block
clamp assign-
ment
1---
2---
3 Blue Ground V GND
4 Green Data in TxD
5 Black Data out RxD
6---
7 Red Power in V+
8---
006158_001
1
2
3
4
5
6
7
8
Interface cable
GEV247
Connector pin
assignment
Wire colour Sensor signal Terminal block
clamp assign-
ment
1 Brown Power in V+
2 White Ground V GND
Interface cable
1
2
006220_001
006221_001
Interface cable
GEV207
Connector pin
assignment
Wire colour Sensor signal Terminal block
clamp assign-
ment
1---
2 Green Data in TxD
3 Blue Data out RxD
4 Red Power in V+
5 Black Ground V GND
1
2
34
5
006216_001
