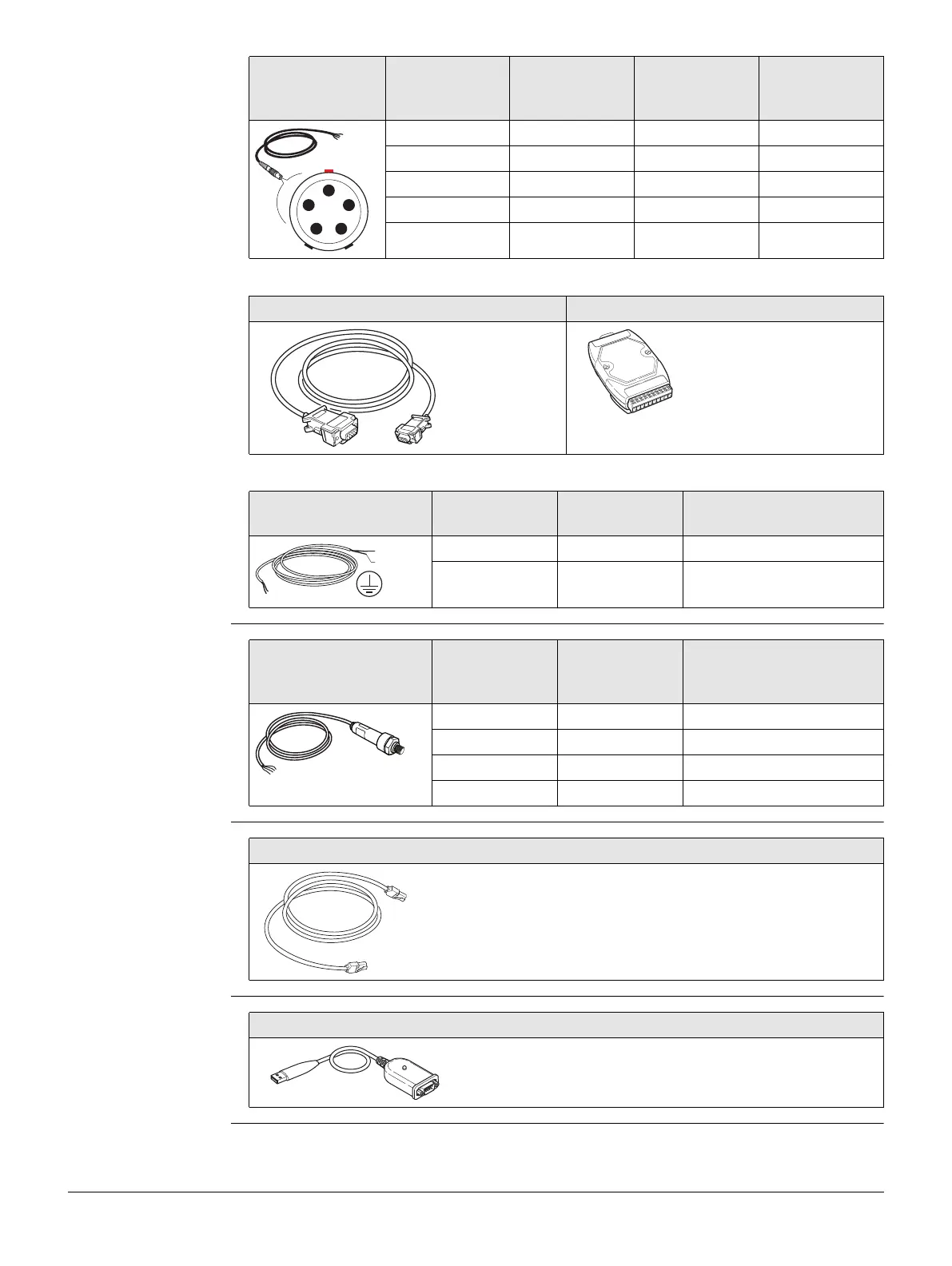

Leica ComGate10, Technical Data
41
Leica Nivel220
sensor cable
TP meteo sensor
RS485
Internet network
connection cable
USB-to-serial (ATEN
UC-232A)
Interface cable
GEV207
Connector pin
assignment
Wire colour Sensor signal Terminal block
clamp assign-
ment
1---
2 Green Data in TxD
3 Blue Data out RxD
4 Red Power in V+
5 Black Ground V GND
DB9 cable (RS232) RS232/485 converter
Power supply cable Connector pin
assignment
Signal Terminal block clamp
assignment
1 Power in V+
2 Ground V GND
1
2
34
5
006216_001
006223_001
006224_001
1
2
006225_001
TP meteo sensor
RS485
Wire colour Sensor signal Terminal block clamp
assignment on
RS232/485 converter
White Ground (GND) (B) GND
Black Power in (+Vcc) (R) +Vs
Blue RS485A Data+
Yellow RS485B Data−
TP-MeteoSeonsor-RS485
RJ45 cable
006227_001
USB-to-serial converter
006228_001
