Leica DMi8 A User Manual

3. Overview Of COmpOnents
Variants with transmitted light illuminator arm

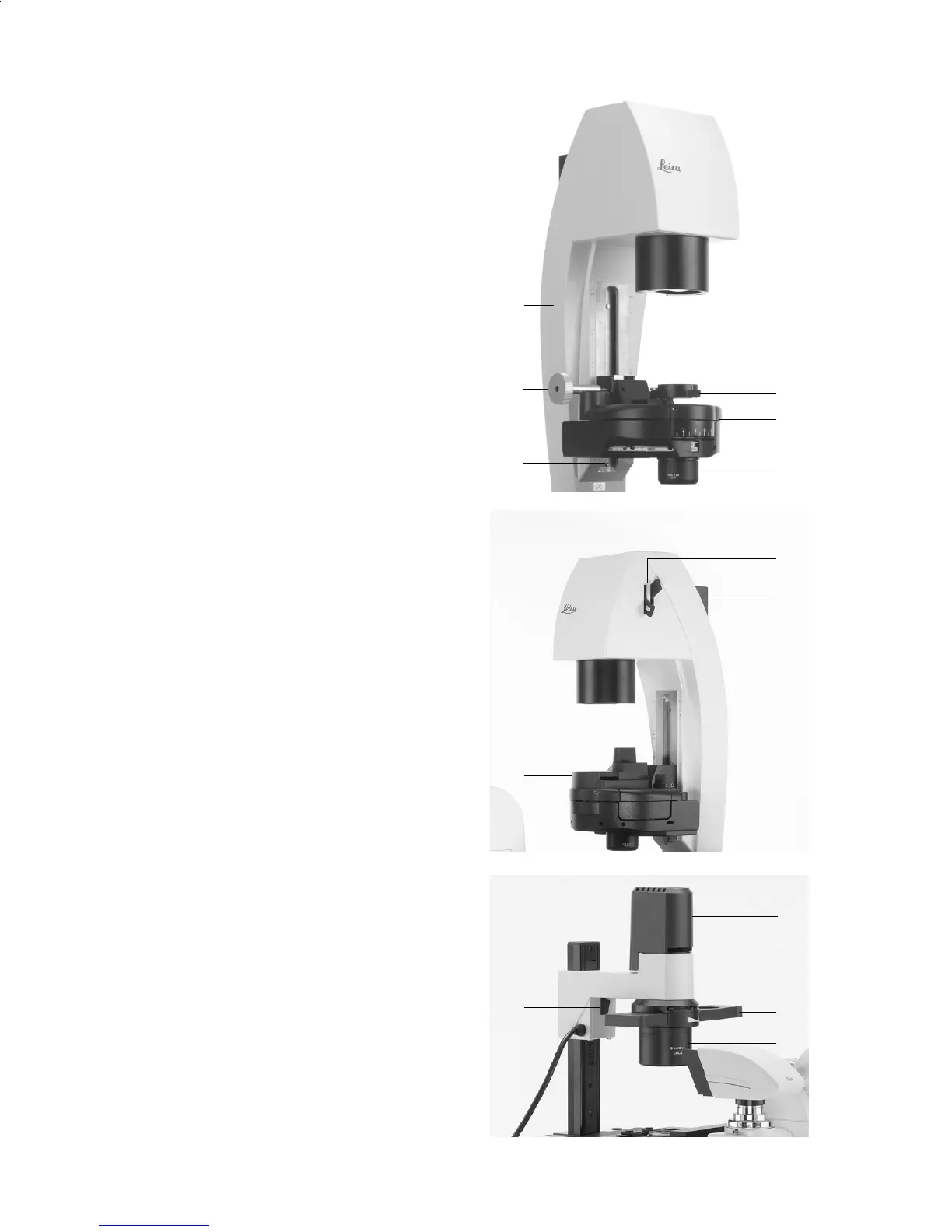

Fig. 4: Left side of the Leica DMi8 with tiltable transmitted light illumi-
nator arm
1 Tiltable transmitted light illuminator arm
2 Condenser height adjustment
3 Manual polarizer
4 Manual condenser, alternatively: motorized condenser
5 Condenser head
6 Condenser height stop
1
3
4
2
5
6
Fig. 5: Right side of the Leica DMi8 with tiltable transmitted light
illuminator arm
1 Transmitted light filters
2 Transmitted light lamp housing receptacle
3 Condenser with motorized polarizer
Fig. 6: Left side of the Leica DMi8 with fixed transmitted light illumina-
tor arm
1 Stop lever for condenser height adjustment
2 Fixed transmitted light illuminator arm
3 Transmitted light lamp housing
4 Receptacle for transmitted light filter
5 Light ring slide
6 Manual condenser with aperture diaphragm
2
1
3
4
6
5
1
3
2
11
