5. Assembling the microscope – polArizer And AnAlyzer
5.7 Assembling the polarizer and analyzer
Manual incident light polarizer
• Removetheplugcapontheright sideofthestand(be-
hind the incident light turret disk (Fig. 25.1)).
• Insertthepolarizerintothereceptacleuntilitlatchesin
place (Fig. 25.1).
Manual incident light analyzer
• Removetheplugcapontherightsideofthestand(below
the incident light turret disk (Fig. 25.2)).
• Insertthe analyzerinto thereceptacleuntilitlatchesin
place (Fig. 25.2).

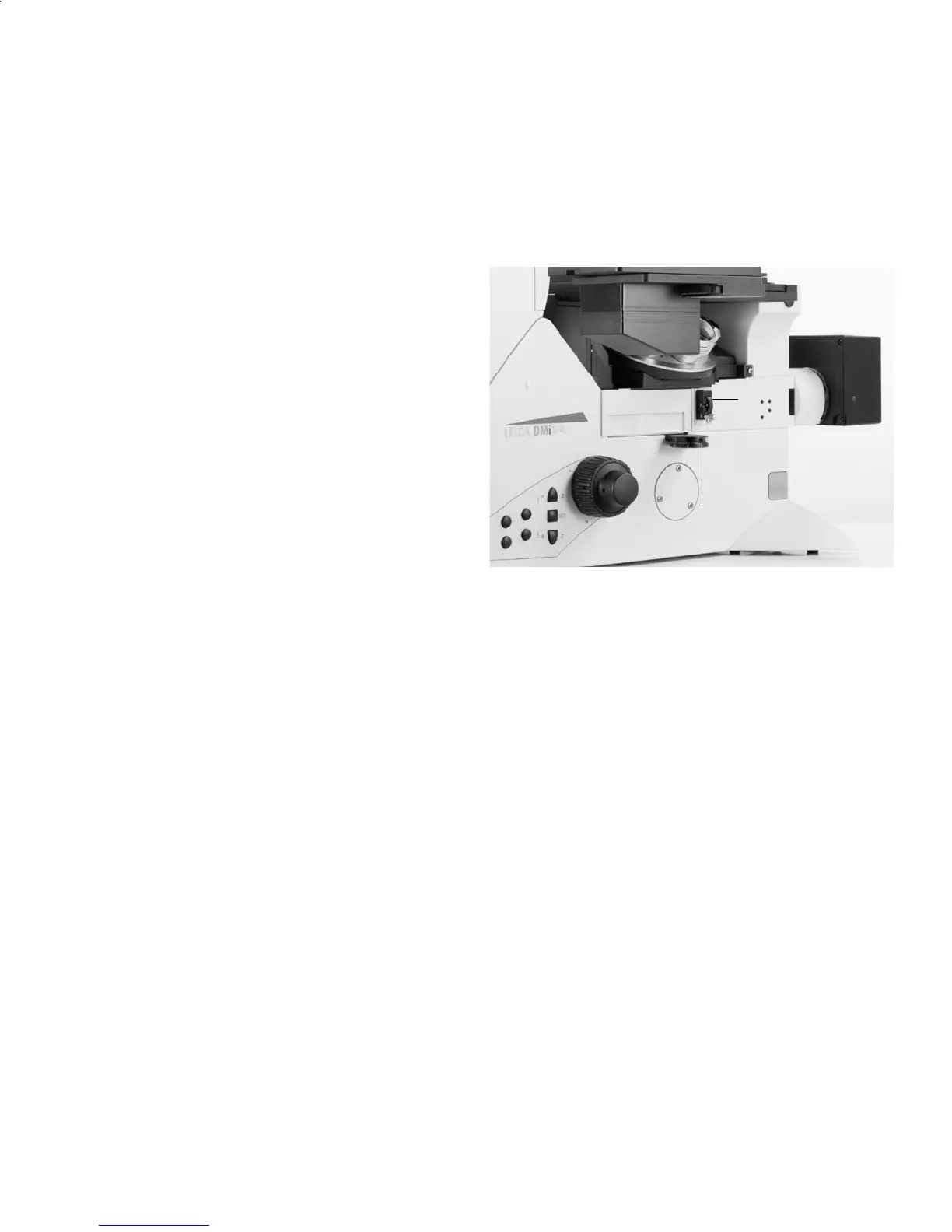

Fig. 25:
1 Incident light polarizer
2 Incident light analyzer
1
2
21
