8 Technical Data
8.1 General
DSX

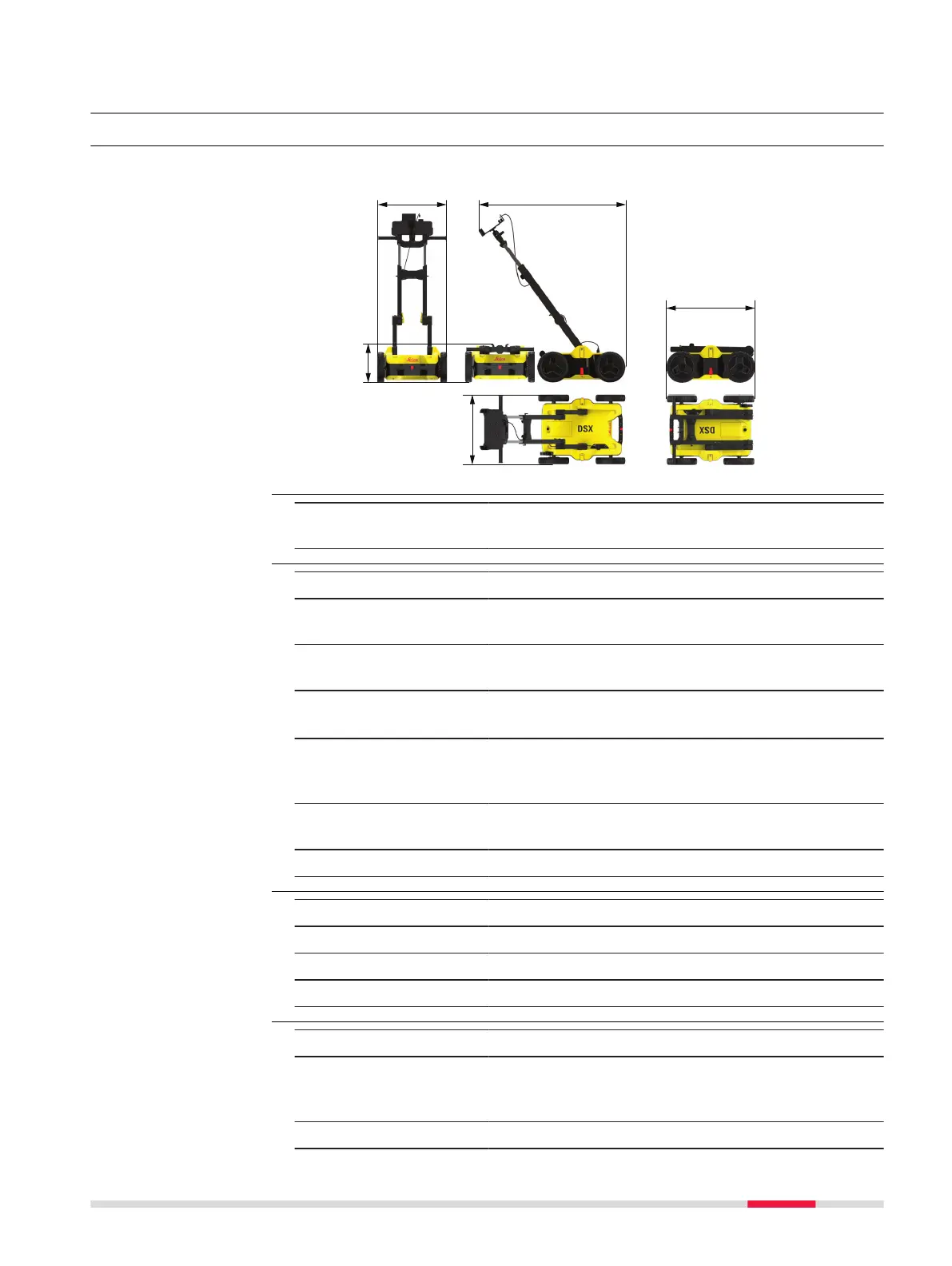

0019571_001
309 mm
1041 mm
711 mm
542 mm
562 mm
DSX – without battery
and tablet
23 kg
Antenna footprint 40 cm × 50 cm
Number of hardware
channels
1
Antenna center fre-
quency
600 MHz
Frequency bandwidth 1908.16 MHz
(f
L
= 99.84 MHz; f
H
= 2008.00 MHz)
Maximum measured e.
r. p. in air
−53.43 dBm
Antenna orientation Broadside antenna array in the direction which is
perpendicular to the DSX moving direction
Sampling frequency 400 kHz
Type Li-Ion
Voltage 14.8 V
Capacity GEB242 5.8 Ah
Typical operating time: Measuring time - 8 h
Acquisition Speed Normal walking speed, up to 7 km/h
Scan Rate per Channel
– for 512 Samples per
Scan
381 scans per second
Scan Interval 42 scans per metre
Dimensions
Weight
Single-frequency
antenna
Battery for DSX
Data Acquisition
