Leica EM TXP User Manual

ating Manual Leica EM TXP 10/10

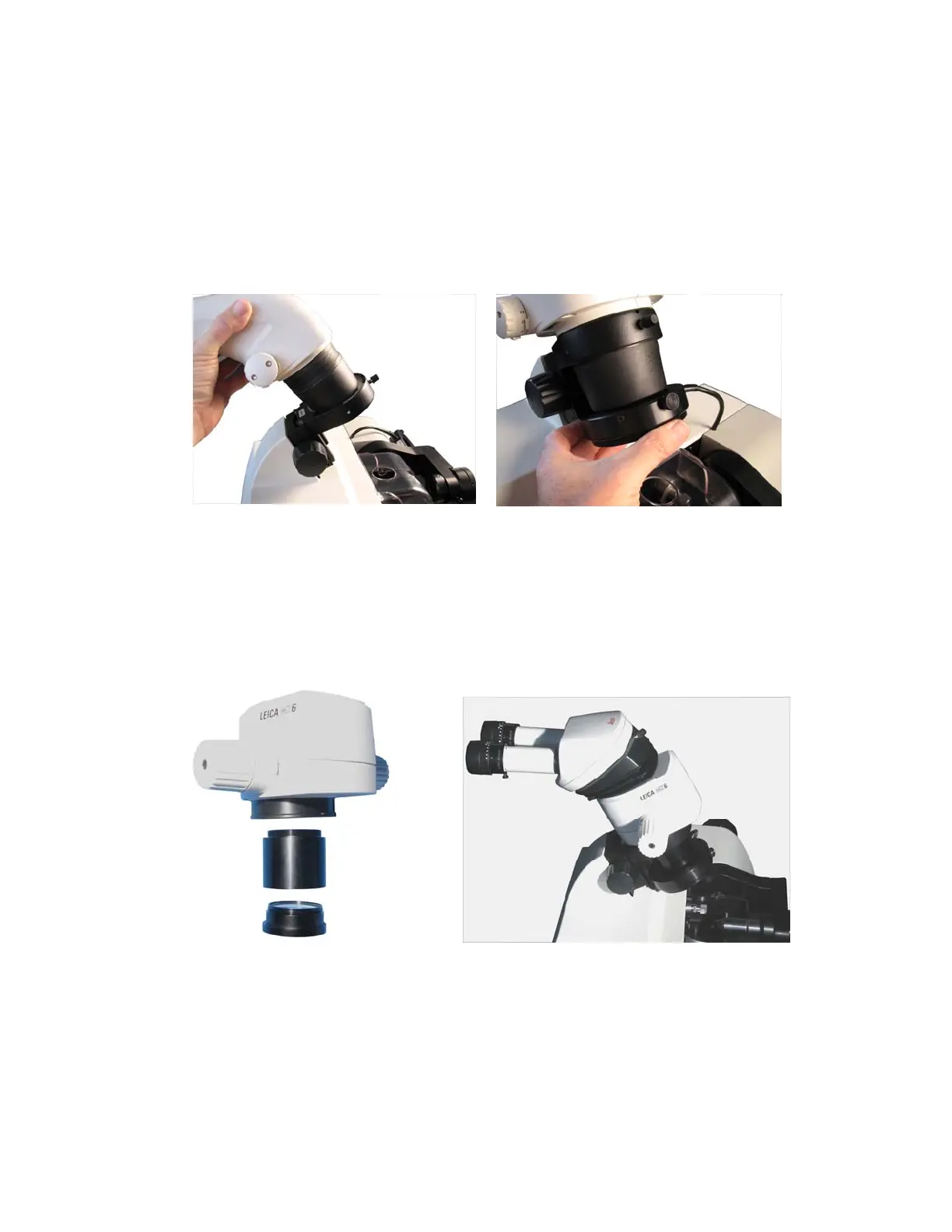

4.2 Installation of the stereo microscope
4.2.1 If the instrument is equipped with S6 stereo microscope:
Insert stereo microscope in the carrier and clamp it with the knurled screw. Slide the
top-light ring-illuminator onto the objective mounting of the stereo microscope. Clamp
the illuminator with attached screw.
4.2.2 If the instrument is equipped with M80 with objective adaptor:
Screw in the objective adaptor into the M80 carrier. Insert objective in the objective
adaptor. Place the ergo-wedge and the binocular tube onto the M80 carrier. Insert
stereo microscope and illuminator in the same manner as described above.
Page 8 Oper
