Page 10 Operating Manual Leica EM TXP 10/10
10

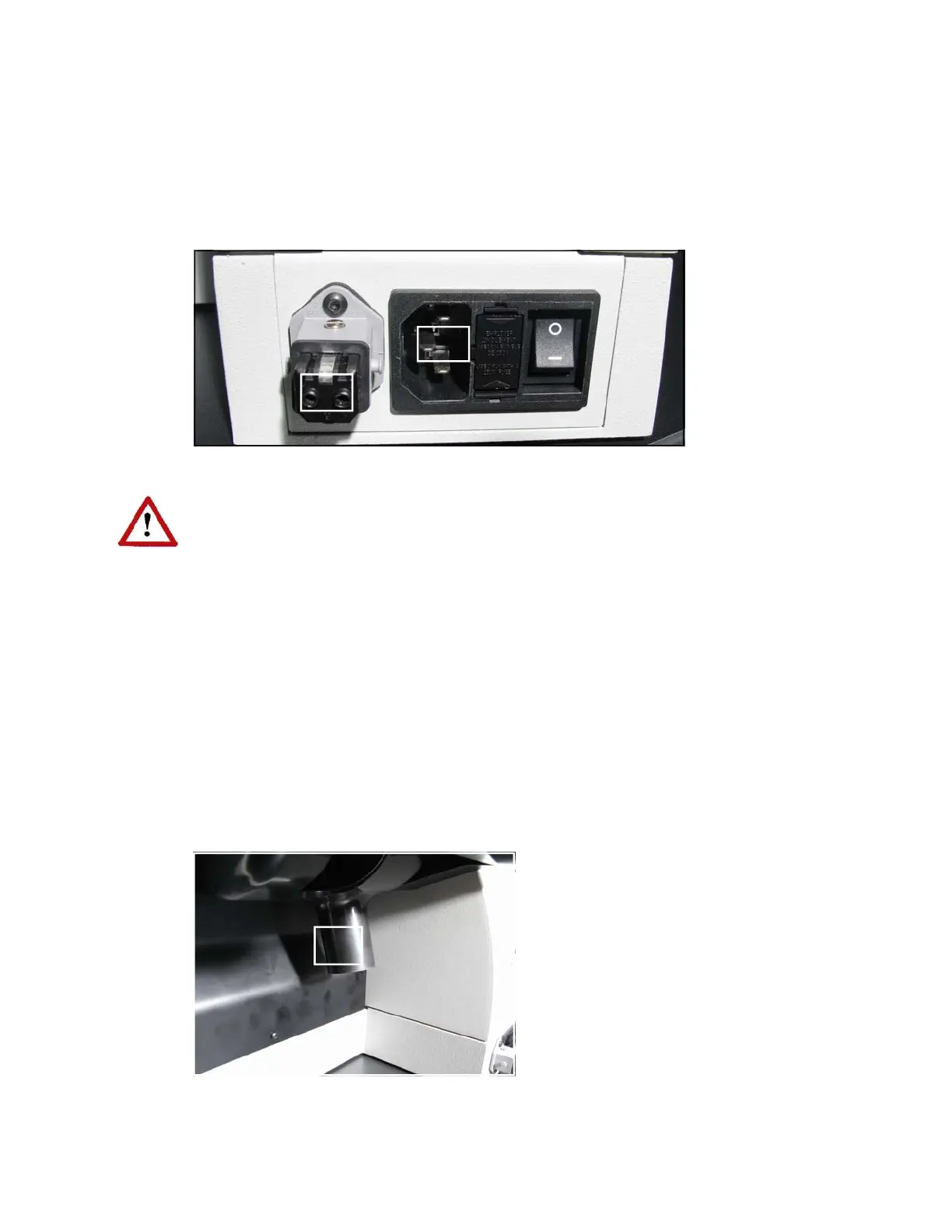

4.3 Electrical connections (rear side of the instrument)
The instrument is equipped with a full range power supply for a voltage input range
from 100 to 240VAC 50/60 Hz. Insert the plug of the power cord into the socket
(11.1).
The switched outlet (11.2) is provided to supply mains voltage from the wall
outlet to the Leica extraction and filtration unit only!
Connecting any other vacuum cleaner could destroy the instrument. Other
vacuum cleaners have to be connected directly to the wall outlets.
4.4 Connection of the extraction and filtration unit
(supplied by Leica)
Connect the mains cord of the extraction unit to the switched outlet (11.2). Using this
connection will switch the extraction unit on and off automatically when the trimming
motor is switched on and off.
Note: make sure the mains switch of the extraction unit is in the on position (see
manual of the extraction unit)
Insert the straight end of the extraction hose into the opening (10) on the rear side of
the instrument. Insert the end with the sleeve into the extraction unit.
11.1
11.2
