Page 26 Operating Manual Leica EM TXP 10/10

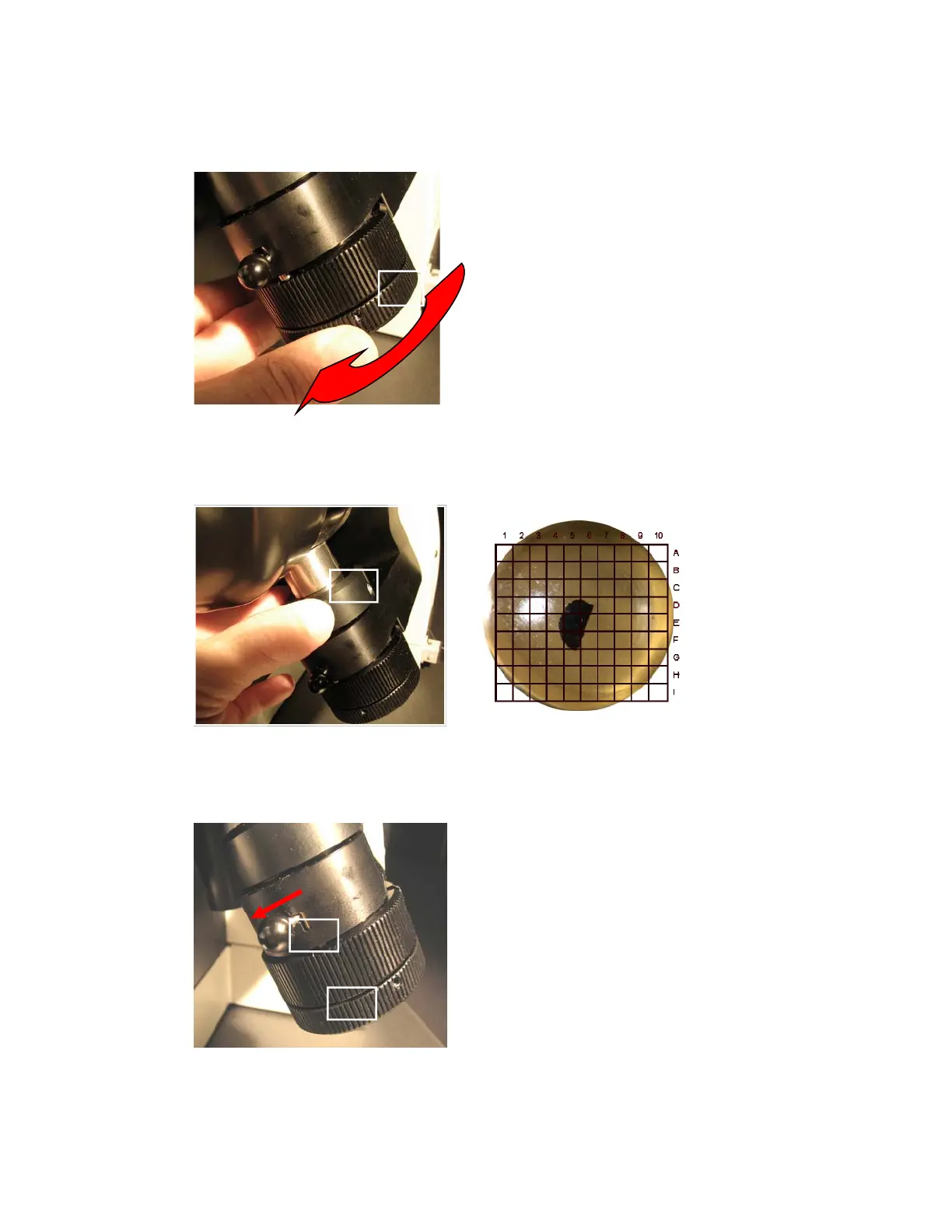

Open the alignment mechanism by turning the knurled clamping ring (9.4) clockwise
(from operator’s point of view)
Grip the alignment ring (9.5) and move the sliding stage during observation in the
stereo microscope to centre the specimen so the area of interest is in the centre of
the eyepiece reticule.
Clamp the alignment mechanism by turning the clamping ring (9.4) counter
clockwise. Unlatch the locking pin (9.2) by moving it to its rest position.
9.4
9.5
9.4
9.2
